VIVOTEK Network cameras

Vivotek FE8174/74V is a 5 megapixel fisheye fixed dome network camera. It is equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view (ceiling/floor/table mount) without blind spots. In addition, in both the panoramic as well as regional viewing modes, users can utilise the ePTZ function to easily zoom in and focus on a region of interest (ROI).

VIVOTEK FE8181V is the latest fisheye fixed dome network camera from VIVOTEK, featuring a detailed 5-Megapixel resolution sensor with superb image quality. Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view (ceiling/floor/table mount) without blind spots, the camera is able to provide coverage of wide, open areas, such as airports, shopping malls, parking lots, retail stores, offices and more. The FE8181V, true day/night camera, features a removable IR-cut filter, maintaining clear images 24 hours a day, with built-in IR LEDs enabling the camera to provide uniformly 360° surround illumination for clear viewing up to 10 meters, even in completely dark environments. Features 5 Megapixel CMOS Sensor 360° Surround View 10 Meters Smart IR 3D Noise Reduction Patent Protected Light Cup Design Best IR Uniformity EN50155 compliant

4-Megapixel CMOS Sensor 30 fps @ 2688x1520 Real-time H.264, MJPEG compression (Dual Codec) Removable IR-cut filter for day & night function Built-in IR Illuminators, effective up to 30 Meters Smart IR technology to avoid overexposure WDR Pro for unparalleled visibility in extremely bright and dark environments Smart Stream II to optimise bandwidth efficiency 3D noise reduction Weather-proof IP66-rated and vandal-proof IK10-rated housing Built-in 802.3af Compliant PoE Built-in MicroSD/SDHC/SDXC card slot for on-board storage Supports ONVIF standard to simplify integration and enhance interoperability

VIVOTEK's IP8173H network camera features a 3 megapixel WDR CMOS sensor to cope with challenging lighting conditions. The WDR feature allows the camera to capture both the dark and bright parts of an image and combine the differences to generate a highly realistic image representative of the original scene, enabling it to provide video quality close to the capabilities of the human eyes. The IP8173H can be widely applied in high contrast environments such as lobby entrances and more. The P-iris lens controls the iris with extreme precision; with its built-in stepper motor, it maintains the iris opening at an optimal level at all times, resulting in superior image clarity and depth of field as well as image quality. The IP8173H features a mini-box camera design concept with a compact size to fit into different types of enclosures. With the capability to fit to a CS-mount lens, it provides flexible monitoring in all types of environments. With all of these features mentioned above, the camera is the best choice for retail, government, industrial, hotel security and city surveillance.

VIVOTEK IB8168 is an ultra-mini bullet network camera, specially designed for indoor applications in which camera appearance is cared, such as luxury stores, antique stores and cloth shops. The IB8168 is equipped with a 2-megapixel sensor and the ability to output 15 frames per second in H.264 compression. It includes multiple streams with different settings and applications, such as recording or live viewing.

VIVOTEK IP8371E is a professional outdoor bullet network camera offering 30 fps @ 3-Megapixel or 60 fps @ 1080p resolution with superb image quality. Featuring 3D Noise Reduction Technology, it enables the IP8371E to capture clear, polished video under low-light conditions, which also helps to reduce bandwidth from sensor noise. The IP8371E also features Smart Stream Technology, which can be used to optimise resolution on a desired object or area to maximise bandwidth usage. The IP8371E comes with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as image quality. For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. Thus, VIVOTEK has introduced the Smart Focus System to make installation and adjustment easier by allowing for remote focus and zoom adjustment. The IP67-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions. Additionally, the wide temperature range further enhances the IP8371E's performance and reliability in extremely cold and warm weather. Features 3-Megapixel CMOS Sensor 30 fps @ 2048x1536; 60 fps @ 1920x1080 3-Motorised, P-iris Lens Removable IR-cut Filter for Day & Night Function Built-in IR Illuminators, Effective up to 30 Meters Supreme Night Visibility Smart Stream 3D Noise Reduction Real-time H.264, MPEG-4, and MJPEG Compression (Triple Codec) -50°C ~ 50°C Wide Temperature Range for Extreme Weather Conditions Smart Focus System for Remote and Precise Focus Adjustment Two-way Audio Weather-proof IP67-rated Housing Built-in 802.3af Compliant PoE Built-in SD/SDHC/SDXC Card Slot for On-board Storage Mounting Bracket with Cable Management for Protected Installation

VIVOTEK BB5116 is a 2 megapixel H.264 fixed network camera. The ePTZ function enables users to focus on close-up shots of different areas in the camera’s view without moving the camera physically. The BB5116 supports H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. Additionally, the BB5116 camera incorporates an adjustment ring to improve lens compatibility with either C- or CS-mount lens, providing system integrators with more flexibility and hassle-free installation for different applications.

Vivotek FE8181 is a 5 megapixel resoultion equipped with a fisheye lens for 180 degree panoramic view/360 degree surround view without blind spots. It has the ability to provide coverage of wide open areas, such as airports, shopping malls, parking lots, retail stores, offices and more.

The IP8152/52-F4 supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. Together with the ST7501 multi-lingual 32-channel recording software, users can set up an easy-to-use IP surveillance system with ease.

*RTSP/RTP/RTCP, IGMP, SMTP, FTP,DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, and 802.

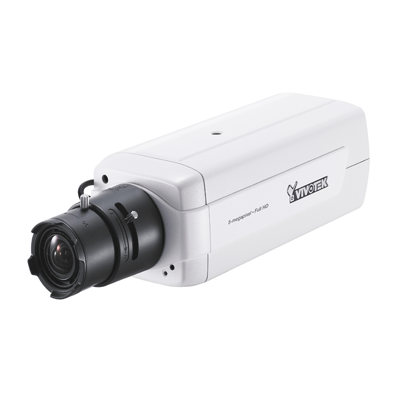

VIVOTEK has won Camera Excellence Awards at Secutech International Security Expo for two consecutive years. The winning model this year is the IP8172. Presented by Messe Frankfurt New Era Business Media Ltd, this year's Secutech International Security Expo took place at Taipei World Trade Centre, Nangang Exhibition Hall, from April 18 to April 20. "I would like to congratulate VIVOTEK on another successful exhibition, as usual, and of course, bringing home the trophy for the second time," said Parson Lee, Managing Director of Messe Frankfurt New Era Business Media Ltd. "They deserve the award and I look forward to their competing model for next year’s Secutech." As the first 5-Megapixel network-based box camera from VIVOTEK, the IP8172 is destined to impress. With 1080p full HD viewing resolution at 30 frames per second (fps), the VIVOTEK IP8172, just like all other models, present crystal clear footage with exceptional details. The vari-focal, auto-iris lens also offers great flexibility and versatility for various applications. To make installation easier in any environment, built-in focus assist button is available for precise focus adjustment, putting users and integrators at ease. Additionally, the VIVOTEK IP8172 is well designed to ensure uncompromised image quality under challenging lighting conditions. Not only does it come with removable IR-cut filter for Day & Night function, Wide Dynamic Range (WDR) enhanced technology is implemented on the device for unparalleled visibility in extremely bright and dark environments. Other advanced features on the IP8172 include Power over Ethernet (PoE) functionality, industry-standard real-time H.264, MPEG-4, and MJPEG Compression (Triple Codec) and most importantly, built-in SD/SDHC card slot for on-board storage, which renders this masterpiece a perfect stand-alone, all-in-one surveillance solution. "On behalf the entire VIVOTEK team, I would like to thank the judges for their recognition, as it is an honour for us to be awarded by a group of such professional industry elites two years in a row," said William Ku, Director of Brand Business at VIVOTEK. The winning model last year is the IP8162P. "VIVOTEK takes pride in designing and producing high-performance, world-class network-based cameras to inspire and raise standards for all members of the security industry," William added.

VIVOTEK's newly designed MS9321-EHV multi-sensor panoramic network camera applies the brand new Robocop design with built-in sunshield to cover four 5-megapixel sensors in 65-degree vertical field of view and support IR illuminators effective up to 30 meters. It offers the highest resolution and maximum field of view, reducing the total number of cameras required and helping save on the installation costs. Furthermore, the MS9321-EHV is also safeguarded by Trend Micro IoT Security.  Featuring 4 x 5MP CMOS Sensors, the multiple sensor network camera can monitor full 180° horizontal views and deliver the highest-quality comprehensive coverage, making it an ideal outdoor surveillance solution with excellent image details. Improving on the previous version, the MS9321-EHV now includes H.265 compression for reduced bandwidth and storage over H.264 compression. WDR Pro (120dB) has been added for improved image quality in high contrast environments. Smart IR II is included for manual or auto IR adjustments based on different night viewing scenarios. And last but not least, the MS9321-EHV is capable of 30fps at all resolutions including the max 20MP.  Like its predecessor MS8391-EV, the MS9321-EHV has the Video Alignment feature that allows you to adjust the positioning and image quality of each sensor, enabling users to view a seamless picture, with no repetition. MS9321-EHV's new housing design is IP66 and IK10-rated to enable use in rain and dust as well as to protect against vandalism or tampering. The new housing design also allows for more tilt and pan during installation, allowing for more versatility.

VIVOTEK FD8335H features an HD WDR CMOS sensor to cope with challenging lighting conditions. The WDR feature allows the camera to capture both the dark and bright parts of an image and combines the differences to generate a highly realistic image representative of the original scene, enabling it to provide video quality close to the capabilities of the human eye. This function enables the FD8335H to be widely applicable in high contrast environments such as lobby entrances, parking lots, ATMs, loading areas and much more. The P-iris lens controls the iris with extreme precision; with its built-in stepper motor, it maintains the iris opening at an optimal level at all times, resulting in superior image clarity and depth of field as well as image quality. Incorporating an IR-cut filter that can be removed automatically at night and built-in IR illuminators with coverage of up to 20 meters, the FD8335H is an outstanding 24-hour surveillance solution. The vandal-proof and the IP66-rated housing of the FD8335H enables users to easily build a cost-effective IP surveillance system without additional accessories. Its metal vandal-proof housing effectively provides robust protection from vandalism. Meanwhile, the IP66 integrated housing shields the camera from dust and water, allowing it to be applied in the harsh weather conditions of outdoor environments. Main features:               1-megapixel CMOS Sensor Up to 30 fps @ 1280x800 (720p) 3 ~ 9 mm Vari-focal, P-iris Lens Removable IR-cut Filter for Day & Night Function Built-in IR Illuminators, effective up to 20 Meters WDR Pro for Unparalleled Visibility in High Contrast Environments Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec) Vandal-proof IK10-rated and Weather-proof IP66-rated Housing Built-in 802.3af Compliant PoE Built-in MicroSD/SDHC Card Slot for On-board Storage

Supports day/night IR lens, DC iris lens.*DNS, DDNS, DHCP.

Key features of the VIVOTEK SD7313/7323 high-performance speed dome network camera: SONY Exview HAD CCD Sensor35x zoomWide Dynamic RangeDay&NightIP66Electronic Image Stabilizer3D privacy masksAstonishing light sensitivityUsing a Sony Exview HAD CCD sensor that detects and utilizes near infrared light for higher light efficiency, the Vivotek SD7313/7323 provides superior image quality under poor lighting conditions, especially at night. Clear-cut images of distant objectsSD7313/7323 is equipped with a 35x optical zoom lens to provide close-up images with exceptional detail and effectively extends your viewing distance.Adapted for high-contrast lighting conditionsSupport for WDR (Wide Dynamic Range) delivers identifiable images in high-contrast environments, enabling SD7313/7323 to accurately reproduce fine details appearing in the actual scene.Consistent image quality 24/7With a built-in removable IR-cut filter and IR illuminators, SD7313/7323 can provide clear-cut images in days and nights.Stable image quality during vibrationEIS (Electronic Image Stabilizer) that maintains image quality during wind- or traffic-induced vibration ensures stable and recognizable image quality when SD7313/7323 are installed in places prone to high winds or heavy traffic.Weather-proof protectionThe IP66-rated housing protects SD7313/7323 from dust and moisture, allowing for outdoor operation in extreme weather conditions.Seamless protection for private areasSD7313/7323's 3D privacy mask changes with the camera movement so as to fully protect sensitive information or areas. The private areas can be completely sheltered even when SD7313/7323 pans, tilts and zooms.

VIVOTEK IP8332-SS is a best-in-class, bullet-style network camera designed for diverse outdoor applications. Equipped with a 1-megapixel sensor enabling viewing resolution of 1280x800 at a smooth 30 fps, the IP8332-SS is an all-in-one outdoor camera capable of capturing high quality and high resolution video.

VIVOTEK's CC8370-HV is a vandal-proof fisheye network camera offering up to 30 fps at 3-Megapixel resolution. With its unique anti-grip design and inconspicuous appearance, the CC8370-HV plays a life secure guard role in unique security environments. Without ligature edges, it will effectively eliminate self-harm and suicide happen, ideal for detention house, holding cells, psychiatric ward, mental hospital, and correctional institution.

*RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, and PPPoE.

VIVOTEK 2MP network camera for mass transit - FD7160 2MP CMOS sensor & wide angle fixed lens Real-time MPEG-4 and MJPEG compression (Dual Codec) Multiple streams simultaneously Tamper detection for unauthorised changes Weather-proof IP66-rated housing Built-in 802.3af compliant PoE MicroSD/SDHC card slot for on-board storage Excellent image quality The FD7160 is equipped with a 2-megapixel sensor, making it capable of providing highly detailed images by which users can easily and accurately identify minute objects such as vehicle license plates or facial features. Together with a wide angle fixed lens, the FD7160 can deliver a broad, clear field of view, making it possible to monitor an entire indoor area and record all in-vehicle activities using a single 2-megapixel camera. Reliability in demanding environments FD7160 meets the EN50155's requirements for temperature, shock and vibration, providing high reliability and rugged performance during movement. Its weather-proof IP66-rated housing provides protection from extreme weather conditions, dust, and moisture. Enhanced security As an invaluable solution for vandalism-prone areas, FD7160 can detect camera tampering attempts and notify the operator for instant response. It has a metal base that can resist fierce impact, thereby ensuring functional operation at all times. Easy installation FD7160 features a compact size and discreet design for easy installation on the sloping surface of the vehicles. The PoE avoids cabling issues during installation and future maintenance. Uninterrupted recording The MicroSD/SDHC card slot allows for short-term and portable video storage on removable memory cards, thereby providing a higher level of convenience.

265 Compression Technology 1/1.8" Progressive CMOS Sensor 30 fps @ 2560x1920; 60 fps @ 1920x1080 DIS (Digital Image Stabilisation) Smart Stream II to Optimise Bandwidth Efficiency WDR Pro for Unparalleled Visibility in High Contrast Environments Remote Back Focus for Easy Focus Adjustments SNV (Supreme Night Visibility) for Low Light Conditions Video Rotation for Corridor View Lens Profile to Ensure the Full Compatibility for Different Lens Options Gigabit Ethernet for High Speed of Transmission Snapshot Focus

Vivotek FD8162 is a 2 megapixel fixed dome network camera. It offers HD video quality with H.264/MPEG-4/MJPEG compression technology built-in 802.3af compliant PoE.

VIVOTEK MD8562/62D is a series of compact, 2-Megapixel network cameras geared toward transportation applications, such as buses, trains and other moving vehicles. With full EN50155 compliance & IP67-rated design, the camera can withstand shock, vibration, humidity, dust and temperature fluctuations, maintaining stable and reliable video capturing during vehicle movement. Furthermore, the vandal-proof metal housing provides robust protection from vandalism. As such, the combination of high resolution imaging and protective housing endows the MD8562/62D with the rugged reliability required to maximize passenger safety and optimize mobile surveillance.

Comes with removable IR-cut filter. * IGMP,SMTP, FTP, DHCP, NTP, DNS, DDNS, and PPPoE.

VIVOTEK’s brand new H.265 outdoor-ready Full HD IR PTZ domes are newly designed for easy installation and flexible integration with VIVOTEK high power PoE Injectors. VIVOTEK is pleased to provide the bundle kits to save users installation time and hardware costs for any outdoor applications. Low light surveillance in large coverage areas The SD9365/66 is the latest professional speed dome camera with wiper from VIVOTEK, specifically designed to enhance low light surveillance in large coverage areas. Equipped with 150M/250M IR illuminators and a 20x/30x optical zoom lens, the SD9365/66 provides a superb low light image in the most challenging situations. The SD9365/66 also adopts VIVOTEK's latest IR technology, VAIR (Vari-Angle IR). VIVOTEK's VAIR provides smooth vari-angle adjustment of the IR illuminators, allowing broad coverage FOV and highly uniform IR intensity while avoiding hot-spots traditionally associated with IR illumination. Fine details, high quality The SD9365/66 is the PTZ surveillance camera with IR Illumination to utilise H.265 compression technology. When combined with VIVOTEK's Smart Stream II technology users can obtain bandwidth savings of up to 80% compared to traditional H.264. By combining 1080p full HD resolution with H.265, IR illuminators, Vari-Angle IR, WDR Pro, and 20x/30x optical zoom, the SD9365/66 is able to capture fine details at top-notch quality, 24 hours a day, 7 days a week.  VIVOTEK further strengthened the camera performance with an IP66- and NEMA 4X-rated housing to protect the camera against rain, dust, and corrosion. The SD9365/66 has a wide operating temperature range from -40°C to 55°C, ensuring continuous operation under the most extreme weather conditions and hazardous environments. This makes the SD9365/66 ideally suited to monitor wide open spaces such as ports, highways, cities, and parking lots where high-level precision is required.

VIVOTEK IP8133 (PoE) are easy-to-use network cameras specifically designed for home security applications with compact, stylish exteriors. Equipped with a 1MP sensor enabling viewing resolution of 1280x800 at 30 fps, users need to look no further for an all-in-one camera capable of capturing high quality, high resolution video. The cameras support the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth.

VIVOTEK IP8152 features a brand new box camera design concept from VIVOTEK, with a compact size and a multitude of features. The small size makes it an easy to fit into different types of enclosures with different lens options, with the ability to fit a CS-mount lens making it a flexible solution for all types of surveillance. The Supreme Night Visibility features results in excellent video quality in low light environments; pairing with the built-in IR-cut filter further increase the range of visibility at night by allowing the use of IR illuminators.

2-Megapixel CMOS Sensor 30 fps @ 1920x1080 Real-time H.264, MJPEG Compression (Dual Codec) Removable IR-cut Filter for Day & Night Function Built-in IR Illuminators, Effective up to 30 Meters Built-in 802.3af Compliant PoE Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage Supports ONVIF Standard to Simplify Integration and Enhance Interoperability Weather-proof IP66-rated and Vandal-proof IK10-rated Metal Housing Smart Stream II to Optimize Bandwidth Efficiency 3D Noise Reduction Smart IR Technology to Avoid Overexposure SNV (Supreme Night Visibility

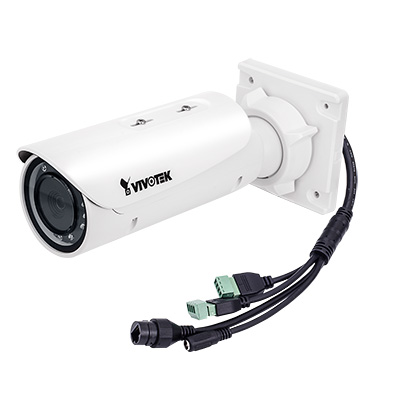

VIVOTEK's IB836B-HF3 is a stylish, bullet-style network cameras designed for diverse outdoor applications and offering a complete range of options. Equipped with a 2MP Full HD sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the IB836B-HF3 is an all-in-one outdoor camera capable of capturing high quality and high resolution video up to 2 Megapixel with WDR and SNV technology, no matter whether in high contrast or in low light environments.
