VIVOTEK Network cameras

*IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, and PPPoE.

VIVOTEK IB8156 is an ultra-mini bullet network camera, specially designed for indoor applications in which camera appearance is cared, such as luxury stores, antique stores and cloth shops. The IB8156 is equipped with a 1.3-megapixel sensor and the ability to output 30 frames per second in H.264 compression. It includes multiple streams with different settings and applications, such as recording or live viewing.

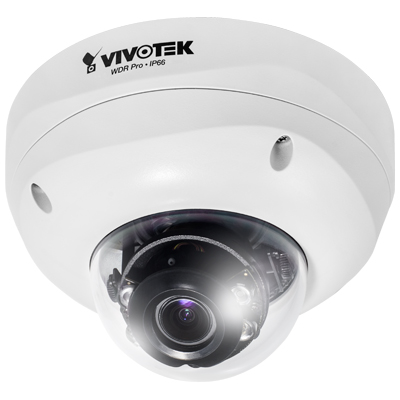

Vivotek FD8365EHV is a professional outdoor network dome camera offering 30 fps at 2-Megapixel resolution. Featuring the Wide Dynamic Range Technology WDR Pro, it provides improved visibility in the extremely dark & light environment. Additionally, as a professional day/night camera, FD8365EHV adopts a Smart IR technology which prevents overexposure and provides noise reduction to adjust the IR lighting intensity instantaneously based on changes in lighting in the ambient environment.

2-Megapixel CMOS Sensor 30 fps @ 1920x1080 8 ~ 12 mm, Remote Focus, P-iris Lens (FD836BA-HTV/EHTV) Removable IR-cut Filter for Day & Night Function Built-in IR Illuminators, Effective up to 30 Meters Smart IR Technology to Avoid Overexposure WDR for Unparalleled Visibility in Extremely Bright and Dark Environments SNV (Supreme Night Visibility) for Low Light Conditions

* IGMP,SMTP, FTP, DHCP, NTP, DNS, DDNS and PPPoE.

H.265 compression technology 1/2.8" Progressive CMOS Sensor 30 fps @ 2048x1536 Smart Stream II to optimise bandwidth efficiency WDR Pro for unparalleled visibility in high contrast environments Built-in IR Illuminators, effective up to 30 meters Remote focus for easy focus adjustments Supreme Night Visibility (SNV) for low light conditions Video rotation for corridor view DIS (Digital Image Stabilisation)

VIVOTEK's IB8382-T is a professional outdoor bullet network camera in VIVTOTEK's 5MP Lite series which offer up to 15 fps at 5-Megapixel. Equipped with a new high resolution image sensor, different from other 5MP cameras, the IB8382-T provides sharper image quality and finer detail. And with powerful 3D Noise Reduction technology and Smart Stream technology the IB8382-T can also optimise resolution for a desired object or area to maximise efficiency of bandwidth usage.

VIVOTEK’s IP816A-LPC (18mm) is a professional box network cameras offering perfect solutions for License Plate Capture with a headlight filter design and specialised firmware for traffic monitoring. Featuring dedicated LPC firmware and mutually compatible lens, the IP816A-LPC (18mm) is perfect for parking related applications. With a suitable selection of external IR LEDs, this camera will be ideal for 24/7 license plate capture and will provide high-detail polished images for reliable license plate recognition.

VIVOTEK IP8165HP is a professional box network camera offering 30 fps @ 2-Megapixel resolution with superb image quality. Featuring the improved Wide Dynamic Range Technology WDR Pro, it provides extreme visibility in extremely dark & light environments with 2-shutter capture method. Combined with 3D Noise Reduction Technology, users can identify an increased level of image detail in extremely bright as well as dark environments without occupying or wasting unreasonably high bandwidth. To provide top-notch image quality, IP8165HP also comes with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as image quality. Furthermore, for installers, properly adjusting the focus of a megapixel network camera can be difficult due to the level of image detail. Therefore, IP8165HP is also designed with VIVOTEK’s ABF (Auto Back Focus) System for installer to adjust focus more precisely. Features: 2-Megapixel CMOS Sensor 30 fps @ 1920x1080 Motorised, P-iris Lens 3D Noise Reduction for Low-light Conditions WDR Pro (100dB) to Provide Extreme Visibility in Extremely Bright or Dark Environments ABF Design to Assist for Precise Focus Adjustment EIS (Electronic Image Stabilisation) to Control Image Stability Two-way Audio

2-Megapixel CMOS sensor Removable IR-cut filter Built-in IR Illuminators 3D noise reduction Smart IR technology

VIVOTEK IP8355EH is a professional outdoor bullet network camera offering 30 fps at 1.3-megapixel. Featuring Wide Dynamic Range Technology WDR Pro II,it provides extreme visibility in extremely dark & light environments with 4-shutter capture method. Additionally, as a professional day/night camera, IP8355EH adopts SmartIR technology which prevents overexposure and provides noise reductionto adjust IR lighting intensity instantaneously based on the changes of light in the ambient environment.

2-Megapixel CMOS Sensor 30 fps @ 1920x1080 Removable IR-cut filter for day & night function Built-in IR Illuminators, effective up to 30 meters Smart IR technology to avoid overexposure WDR for unparalleled visibility in extremely bright and dark environments Supreme Night Visibility (SNV) for low light conditions 3D Noise Reduction Video rotation for corridor view Weather-proof IP66 and vandal-proof IK10-rated housing

4-Megapixel CMOS Sensor 30 fps @ 2688x1520 Real-time H.264, MJPEG compression (Dual Codec) Removable IR-cut filter for day & night function Built-in IR Illuminators, effective up to 30 Meters Smart IR technology to avoid overexposure WDR Pro for unparalleled visibility in extremely bright and dark environments Smart Stream II to optimise bandwidth efficiency 3D noise reduction Weather-proof IP66-rated and vandal-proof IK10-rated housing Built-in 802.3af Compliant PoE Built-in MicroSD/SDHC/SDXC card slot for on-board storage Supports ONVIF standard to simplify integration and enhance interoperability

12-Megapixel Resolution 180° Panoramic View 7 fps @ 7552x1416 Video Alignment to Have a Seamless Picture Smart IR Technology to Avoid Overexposure Built-in IR Illuminators, Effective up to 30 Meters Smart Stream II to Optimize Bandwidth Efficiency Weather-proof IP66-rated and Vandal-proof IK10-rated Housing -50°C ~ 60°C Wide Temperature Range for Extreme Weather Conditions

Vivotek SF8174V is a fisheye fixed dome network camera with 5 megapixel resolutoin sensor. It features removable IR-cut filters, maintaining clear images 24 hours a day. In addition, the IP-66 rated housing is designed to help the camera body withstand rain and dust.

VIVOTEK has launched a new megapixel-class camera tailored to the needs of retailers - the CC8130, to enhance VIVOTEK's lineup of security cameras designed for the retail industry. The CC8130 is a compact cube camera especially designed for indoor surveillance with a flat back-panel for easy mounting on walls, desktop or countertops, and ideal for locations such as checkout stations, capturing faces at eye level. The unique and physically elegant design makes it the best choice for boutique, hotel, restaurant, department or convenience stores. With a 180° panoramic viewing angle, the camera provides full coverage of monitored areas without blind spots, providing complete video security. In addition, a built-in microphone to record sound within a 5 meter radius further enhances its value as a security tool. VIVOTEK's new camera CC8130 targeted at retail environments supports industry-standard H.264 compression, drastically reducing file sizes and conserving valuable network bandwidth. Together with the ST7501 multi-lingual 32-channel recording software, customers can also take advantage of the iViewer remote monitoring app for iOS and Android mobile devices, setting up an easy-to-use IP surveillance system with ease. CC8130’s key features include 1-Megapixel CMOS Sensor, 180° horizontal panoramic view, compact and elegant design, real-time H.264 and MJPEG compression (dual codec), 30 fps @ 1280x800, and built-in IEEE 802.3af compliant PoE.

H.265 compression technology 1/1.8" Progressive CMOS Sensor 30 fps @ 2560x1920, 60 fps @ 1920x1080 Smart Stream II to optimise bandwidth efficiency WDR Pro for unparalleled visibility in high contrast environments Built-in IR Illuminators, effective up to 30 meters Remote focus for easy focus adjustments Supreme Night Visibility (SNV) for low light conditions Video rotation for corridor view Digital Image Stabilisation (DIS)

VIVOTEK’s CD8371-HNTV is a vandal-proof corner dome network camera specifically designed for prisons and correctional facilities. With up to 20 fps at 3-Megapixel resolution, 940nm IR illuminators, two-way audio, and vari-focal lens, the CD8371-HNTV is the most feature-rich prison cell surveillance camera available today. It has an anti-ligature design to limit the possibilities of self-inflicted harm or suicide, a required feature for environments such as prisons, holding cells, psychiatric wards, mental hospitals, and correctional institutions. Covering wide areas with the corner dome Alongside its anti-ligature design, the CD8371-HNTV is designed to cover a wide area. Devised to be installed in the upper corner of a cell, it has both a wide angle horizontal FOV (up to 108°) and vertical FOV (up to 79°) enabling full coverage of a rectangular cell, as well as having a 15° vertical tilt to enable vertical view adjustments where needed. WDR Pro is included, enabling better image quality where variable lighting is a concern, as well as SNV technology to produce high-quality full-colour surveillance under low-light conditions. These combined features, along with a built-in microphone, enable correctional officers, mental health evaluators, and prison guards to monitor all the activities of those under their supervision. The CD8371-HNTV also supports the industry-standard H.264 compression technology, reducing file sizes and conserving network bandwidth. It also is ONVIF compliant, enabling integration with any existing Video Management Software or VIVOTEK's own VAST Central Management Software.

VIVOTEK’s SD9364-EHL is a brand-new professional speed dome camera with 150 M IR, specifically designed for wide open areas even in total darkness. IR technology The SD9364-EHL is equipped with high-performance H.265/H.264/MJPEG compression technology and extra-smooth video quality with up to 150 M IR illumination, providing superb low-light imagery with an adjustable Zoom Lens, and clearly enhanced resolution for any moving object at night-time. In addition, the SD9364-EHL also adopts VIVOTEK latest IR technology, VAIR (Vari-Angle IR), which provides up to 150 metre IR illumination with smooth vari-angle adjustment, broad coverage of FOV and highly uniform IR intensity while avoiding hot-spot issues. H.265 compression The SD9364-EHL is the first PTZ surveillance camera with IR Illumination to utilise H.265 compression technology. When combined with VIVOTEK's Smart Stream II technology users can obtain bandwidth savings of up to 80% compared to traditional H.264. By combining 1080p full HD resolution with H.265, IR illuminators, VAIR, WDR, and 30x optical zoom, the SD9364-EHL is able to capture fine details at top-notch quality, 24 hours a day, 7 days a week. VIVOTEK further strengthened the camera performance with an IP67- and NEMA 4X-rated housing to protect the camera against rain, dust, and corrosion. The SD9364-EHL has a wide operating temperature range from -50°C to 55°C, ensuring continuous operation under the most extreme weather conditions and hazardous environments. This makes the SD9364-EHL ideally suited to monitor wide open spaces such as ports, highways, cities, and parking lots where high-level precision is required. As with all VIVOTEK true day/night cameras, the SD9364-EHL features a removable IR-cut filter, maintaining clear images 24 hours a day. Audio detection is included by recognising changes in ambient noise. The SD9364-EHL also includes a SD/SDHC/SDXC card slot and supports up to 60 fps in 1080P full HD. For the most demanding outdoor surveillance application, there is nothing that compares to the VIVOTEK SD9364-EHL.

H.265 compression technology 1080P Full HD CMOS Sensor 60 fps @ 1920x1080 20x optical zoom Removable IR-cut filter for day & night function WDR Pro, a true WDR, for unparalleled visibility in high contrast environments Smart Stream II to optimise bandwidth efficiency Weather-proof IP68-rated, vandal-proof IK10-rated and NEMA4X housing Audio detection for instant alerts Auto tracking for moving objects Built-in MicroSD/SDHC/SDXC card slot for on-board storage

2-Megapixel CMOS sensor 30 fps @ 1920x1080 SNV (Supreme Night Visibility) for low light conditions Smart Stream II to optimise bandwidth efficiency WDR enhanced for unparalleled visibility in high contrast environments 3D noise reduction for low-light conditions Video rotation for corridor view Lens profile to ensure the full compatibility for different lens options

H.265 compression technology •1080P Full HD CMOS Sensor 60 fps @ 1920x1080 30x optical zoom Removable IR-cut filter for day & night function WDR Pro for unparalleled visibility in high contrast environments Smart Stream II to optimise bandwidth efficiency Weather-proof IP68-rated, vandal-proof IK10-rated and NEMA4X housing Audio detection for instant alerts Auto tracking for moving objects Built-in MicroSD/SDHC/SDXC card slot for on-board storage

VIVOTEK unveils its first ultra-megapixel fisheye network camera FE8191 and the world’s first ultra-megapixel IR fisheye network camera FE8391-V The VIVOTEK FE8191 and FE8391-V are market-leading ultra-megapixel fisheye network cameras with VIVOTEK’s persistence and commitment to the development of outstanding fisheye network cameras. The FE8391-V uniquely features a 12MP CMOS sensor and built-in IR LEDs, making this model the world’s first ultra-megapixel fisheye with IR illumination, consequently satisfying consumers’ demand for products with diversified applications. The 12MP CMOS sensor and 1.5 mm lens employed in both cameras not only guarantee excellent image quality, but also provide 180° panoramic (wall mount) or 360° surround viewing (ceiling/floor mount), achieving unobstructed monitoring of wide, open areas such as airports, shopping malls, parking lots, retail stores, and offices. In addition, the FE8191 and FE8391-V are designed with a removable IR-cut filter and WDR Enhancement technology, which allows the cameras to maintain optimal image quality around the clock and unparalleled visibility under highly contrasted lighting environments, and 3D Noise Reduction technology, which enables the cameras to capture clear, polished video under low-light conditions. Furthermore, the FE8391-V is designed with a vandal-proof IK10-rated and IP66-rated weatherproof housing, enhancing the camera’s durability against harsh environmental conditions and vandalism. The design of built-in IR LEDs and patent-protected light cup enables FE8391-V to provide uniformly and even 360° surround illumination for clear viewing up to distances of 10 meters, even in completely dark environments. VIVOTEK sincerely invites you to check out our FE8191 & FE8391-V at IFSEC International 2015 VIVOTEK is proud to be one of the exhibitors at IFSEC International 2015, the grand festival for the security industry and the global stage for security innovation and expertise, at the ExCeL London during June 16-18. We sincerely invite you to visit us at our booth, E555, to check out these two supreme fisheye network cameras!

VIVOTEK IP8372 is a professional bullet camera offering 5-Megapixel or 1080p Full HD resolution with superb image quality up to 30fps. Featuring 5-Megapixel resolution and high-performance H.264/MPEG-4/MJPEG compression technology, the IP8372 offers extra-smooth video and wide coverage.The IP8372 employs many advanced features to allow users to fully utilize the high definition video. The ePTZ function enables users to zoom in and focus on a region of interest (ROI) in the camera view with only a few clicks of a mouse.

The FD8151V features a 1.3-Megapixel sensor enabling viewing resolution of 1280x1024 at 30 fps and also supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MJPEG compatibility also included, video streams can be transmitted in either of these formats for versatile applications.

2-Megapixel CMOS sensor Removable IR-cut filter Built-in IR Illuminators 3D noise reduction Smart IR technology

The VIVOTEK CC8130(HS) is a height-strip network camera equipped with a 180 degree wide-angle lens, delivering clear images for reliable facial recognition. An ideal installation height of 170cm (5.5 ft) allows the CC8130(HS) to capture clear facial images at eye view, even when the subject is wearing a hat or hood. In addition, the plug and play design makes the CC8130(HS) installation simple and rapid. Combining low-profile and high- level features, the CC8130(HS) is ideal for discreet indoor applications, such as retail, banks, restaurants, small businesses and particularly in cashier areas. To dramatically reduce file sizes and conserve valuable network bandwidth, the CC8130(HS) supports the industry-standard H.264 compression technology. Combined with the ST7501 multi-lingual 32-channel recording software, users can quickly and easily set up an IP surveillance system that's simple to operate but hard to beat. "Capturing clear facial images is one of the most critical issues in surveillance. One solution is to mount the camera at eye-level, but this increases the risk of vandalism. VIVOTEK, the professional solution provider, is proud to release the CC8130(HS) with discreet eye-level mounting, allowing capture of clearer facial images than ceiling-mounted cameras, even when subjects wear hats or hoods," said Tim Su, Director, Marketing Division at VIVOTEK. "Additionally, the CC8130(HS) offers graduated and color-coded height measurements in both U.S. and Metric units to meet the needs of users all over the world."

The VIVOTEK FE8180 is the world's smallest fisheye camera, featuring a detailed 5-Megapixel resolution sensor with superb image quality. A small camera with large functionality, the VIVOTEK FE8180, with a diameter of only 90 mm, is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view without blind spots (ceiling mount), the camera is able to provide full video coverage of wide, open areas, such as airport lobby, shopping malls, retail stores, offices and more.  The FE8180 offers various display layouts, including original surround view, panoramic view, and regional view to suit a variety of applications. In addition, in both the panoramic and regional viewing modes, users can utilise the ultra-smooth ePTZ function to easily zoom in and focus on a region of interest (ROI). The new cutting-edge pixel calculation function helps the user to ensure the image quality of a desired area.  Features 5-Megapixel CMOS Sensor 30fps@1080pFullHD 1.57 mm Fisheye Lens for 180° Panoramic View and 360° Surround View WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments ePTZ for Data Efficiency Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage Support Local or Client Side Dewarping 3D Noise Reduction 15° Tilt Mount Available Support Installation with Conduit Box
