Vanderbilt Door access control

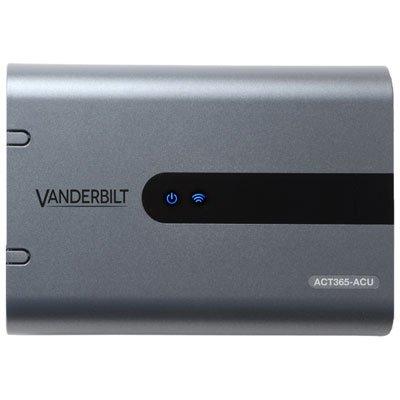

A single door cloud IP controller with 2 Amp 12 V DC power supply unit Manages access control and video from one interface Monitors live video stream and reviews recorded video associated with events and doors Manages and controls access from anywhere, at any time and on any device (PC, Tablet, smart phone) with a modern web browser Automatic notification on critical door events, voltage problems, break glass, tamper Live Muster reporting Dual port Ethernet switch, allows for IP connection Fire Override Airlock/Interlock TCP / IP - DHCP / Static IP addresses Compatible with all ACT readers Set/Unset alarm panel from ACT365 reader, Web portal or Mobile app

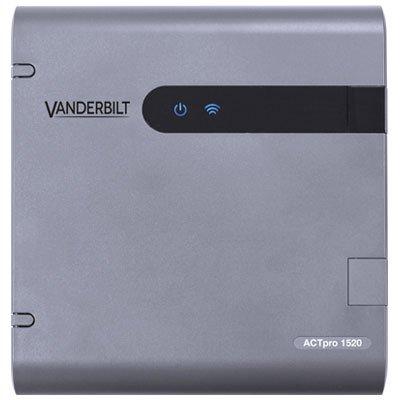

A single door cloud IP controller with PoE++ power supply unit Dual port Ethernet switch, allows for a max of 4 hubbed controllers 60,000 Users Compatible with all ACTpro systems Mains present (Line voltage) Monitoring Emergency Door Release (EDR) / Breakglass Monitoring or Deadbolt monitoring Tamper monitoring Faults reported in ACT Enterprise software Anti-Passback Fire Override Airlock/Interlock Arm/Disarm intruder panel Elevator control TCP / IP - DHCP / Static IP addresses Extra rights and door plans included Bluetooth mobile credential support via OSDP or Wiegand bluetooth readers

A single door cloud IP controller with PoE++ (PoE Ultra) power supply unit Manages access control and video from one interface Monitors live video stream and reviews recorded video associated with events and doors Manages and controls access from anywhere, at any time and on any device (PC, Tablet, smart phone) with a modern web browser Automatic notification on critical door events, voltage problems, break glass, tamper Live Muster reporting Dual port Ethernet switch, allows for IP connection Fire Override Airlock/Interlock TCP / IP - DHCP / Static IP addresses Compatible with all ACT readers Set/Unset alarm panel from ACT365 reader, Web portal or Mobile app

Card only option Clock & Data or Wiegand output Compatible with ACTpro MIFARE ISO cards & Fobs Indoor and Outdoor (IP67)

Compact proximity reader with keypad Robust construction Suitable for internal and external applications VdS approved Compatible with the SPC system via SPCA210 Wiegand interface

Clock & Data or Wiegand output (26bit, 37bit) Reader configurable as a Serial or Sector reader Compatible with ACTpro MIFARE ISO cards & Fobs Compatible with all ACTpro controllers and 3rd party controllers with a Wiegand interface Sector reader operation configurable for non-ACT cards & fobs with programming card 4 Colour LED Surface / flush mount - can mount directly to standard electrical box Indoor and Outdoor (IP67)

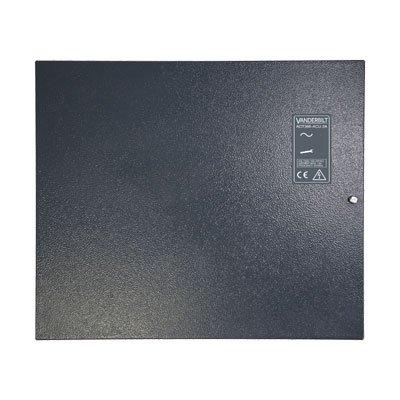

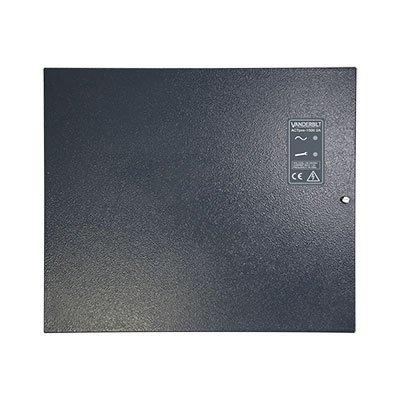

A single door cloud IP controller with 2 Amp 12 V DC power supply unit in a metal enclosure Dual port Ethernet switch, allows for a max of 4 hubbed controllers 60,000 Users Compatible with all ACTpro systems Mains present (Line voltage) Monitoring Emergency Door Release (EDR) / Breakglass Monitoring Tamper monitoring Faults reported in ACT Enterprise software Anti-Passback Fire Override Airlock/Interlock Arm/Disarm intruder Panel Elevator Control TCP / IP - DHCP / Static IP addresses Extra rights and door plans included Supports OSDP, Wiegand and Clock & Data readers

Card only option Clock & Data or Wiegand output Compatible with ACTpro MIFARE ISO cards & Fobs Surface / flush mount Indoor and Outdoor (IP67)

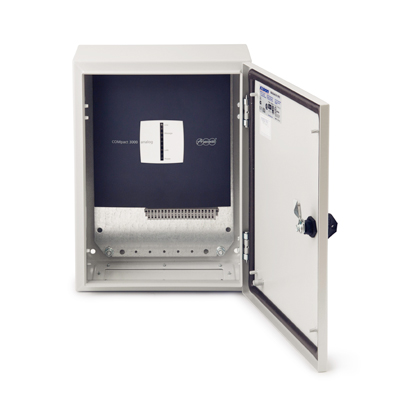

BM6000-IP is a control unit for a door entry phone system connected to the telephone network. With an entry phone system the entrance door can be opened from a home telephone, wireless (DECT) or mobile device. All approved home telephone models using tone dialling can be used.

Clock & Data or Wiegand output (26bit, 37bit) Reader configurable as a Serial or Sector reader Compatible with ACTpro MIFARE ISO cards & Fobs Compatible with all ACTpro controllers and 3rd party controllers with a Wiegand interface Sector reader operation configurable for non-ACT cards & fobs with programming card 4 Colour LED Indoor and Outdoor (IP67)

Clock & Data or Wiegand output (26bit, 37bit) Reader configurable as a Serial or Sector reader Compatible with ACTpro MIFARE ISO cards & Fobs Compatible with all ACTpro controllers and 3rd party controllers with a Wiegand interface Sector reader operation configurable for non-ACT cards & fobs with programming card 4 Colour LED Indoor and Outdoor (IP67)

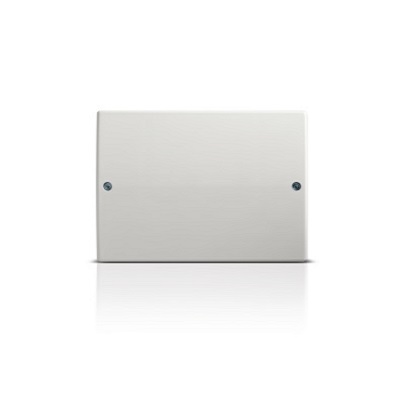

The AP01P has 4 inputs, 2 relay outputs and 4 open-collector outputs, 2 RS485 or 2 C&D/ Wiegand reader ports. The inputs- and outputs are user configurable to meet a majority of the use cases, but out of the box there’s a pre configuration (that of course can be changed) to ease installation for the majority of the doors. Readers are mounted at the door, and connected via RS485, Clock/Data or Wiegand. The Access Point (AP) offers the ability to connect four readers (RS485 Vanderbilt-OSDP) to be used for entry or exit and can be placed in different heights to accommodate for instance for wheelchairs or garage barriers.

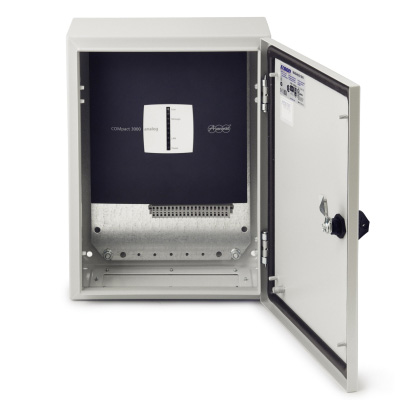

BM6000 analog is a control unit for a door entry phone system connected to the telephone network. With an entry phone system the entrance door can be opened from a home telephone, wireless (DECT) or mobile device. All approved home telephone models using tone dialling can be used.

Facilitates the expansion of an additional door on the ACTpro controller (ACTpro-1500 and ACTpro-1520) and connects to the ACTpro controller via RS485 Includes a 2A 12V DC power supply unit The decision to grant or deny access is made by the ACTpro Controller Main Relay for door control (5A/50V AC/DC) AUX relay for alarm monitoring (1A/50V AC/DC) Supports all ACTpro readers including MIFARE Classic, DESFire EV1 Supports Clock&Data or Wiegand readers Multiple entry & exit readers Reader short circuit protection Break Glass Monitoring Supply Voltage Monitoring Request to exit Door monitoring Tamper and Mains present monitoring Status LEDs Space in enclosure for cable management Anti passback Supports monitoring of motorised deadbolts

The SC7P has a built-in keypad and is suitable for use with Mifare smart cards. It reads the chip serial number only and provides a Wiegand or Clock & Data output. The SC7 includes tamper-proof screws.

10 User Codes Keypad Backlighting Incorrect code lockout 5 amp door relay output Simple to use and easy to install standalone digital keypad Contained in a stylish polycarbonate housing, with stainless steel keys and potted electronics, allowing for indoor and outdoor installation

Compact proximity reader with keypad Robust construction Suitable for internal and external applications VdS approved Compatible with the SPC system via SPCA210 Wiegand interface

ACT ACTsmart2 1090-1 pin-only reader that can be standalone, connected together in a master-slave configuration or networked through a PC. It is in one combined unit, saving significant installation time and cost.

Vanderbilt AR11S-MF is a mifare card reader that has three indicator LEDs and a multi tone buzzer for audio verification. A multicolour light frame enforces access status information. This can be configured to follow the indicator LEDs, or any number of different options. Compared to the AR10S-MF there is in addition also an adapter plate used for mounting on UK backboxes and an extension cable included in the box.

The ACT 5e digital keypad is a simple to use and easy to install standalone access control product. Keypad backlighting enhances functionality at night or in poor light conditions. The ACT 5e may be surface or flush mounted on to a standard single gang electrical back box.

Card and PIN option Clock & Data or Wiegand output Compatible with ACTpro MIFARE ISO cards & Fobs Surface / flush mount Indoor and Outdoor (IP67)

128 PIN Code and Credential (works with ACTpro_ISO-B or ACTprox_Fob-B) Keypad Backlighting Incorrect code lockout 5 amp door relay output Simple to use and easy to install standalone digital keypad Contained in a stylish polycarbonate housing, with stainless steel keys and potted electronics, allowing for indoor and outdoor installation

Siemens ASE5300-HA is an extended HR application programming interface  that builds upon the Basic HR API (ASE5300-AP). The Extended HR API makes it possible to perform advanced functions from a third-party application such as providing a cardholder with access privileges or assigning a visitor with a temporary access profile.

A single door cloud IP controller with 2 Amp 12 V DC power supply unit Dual port Ethernet switch, allows for a max of 4 hubbed controllers 60,000 Users Compatible with all ACTpro systems Mains present (Line voltage) Monitoring Emergency Door Release (EDR) / Breakglass Monitoring or Deadbolt monitoring Tamper monitoring Faults reported in ACT Enterprise software Anti-Passback Fire Override Airlock/Interlock Arm/Disarm intruder panel Elevator Control TCP / IP - DHCP / Static IP addresses Extra rights and door plans included Bluetooth mobile credential support via OSDP or Wiegand bluetooth readers

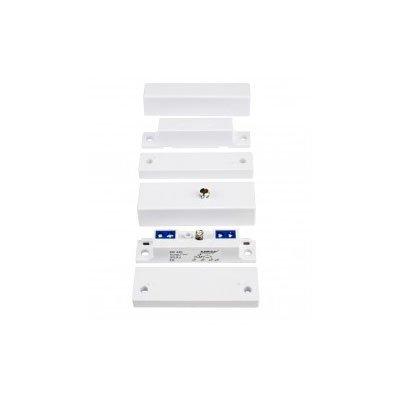

Surface mounted contact Suitable for wood & steel applications Various European approvals EN Grade 2 Long operational life Aesthically designed Security and industrial control system applications Opening protection Pre-installed 2.2K resistor

The ACTsmart2 access control solution from ACT is a cost effective and highly flexible access control system for small to medium sized enterprises. Some features of an ACTsmart2 Access Control Solution • standalone, master slave or networked options • expandable to 8 doors• software has advanced features such as fire override,    interlocking and alarm arm and disarm • pin, proximity or pin & proximity readers• option of surface / flush, panel or mullion mount reader• auto discovery new readers • keypad will continue to operate without a PCInstallation Tip:Enhancing Security with the ACTsmart2 Lock The use of the ACT smartlock with the ACTsmart2 reader will enhance the physical security of the building by placing the lock relay in a more secure location, such as within a PSU that has tamper outputs. The ACTsmart2 keypad is installed on the unsecure side of the entry point and the smartlock is installed on the secured side.

The ACT standalone range comprises the ACT 5 and ACT 10 digital keypads and the ACT 5prox digital keypad + proximity. They provide access control for standalone doors or gates where the only requirements are entry and exit. Easy to install and configure they offer a low cost access control solution for both domestic and commercial properties.  ApplicationsAccess controlGate entryDoor monitoringInterlock applicationsSuitable for internal and external doors in both domestic and commercial properties.  ACT 5prox digital keypad + proximity featuresProximity, PIN and proximity or PIN only50 users with unique pin codes and / or ACTProx cards. Users can be deleted if a card is lost or a pin code forgottenPush to exit inputIncorrect code lockoutToggle mode5 amp, 30 Volt DC relay Polycarbonate housing with stainless steel keysKeypad backlightingPotted electronicsIndoor / outdoor (IP67)Surface / flush mount optionsMounts on to standard single gang electrical back boxACT 5 digital keypad featuresPIN only version of the ACT 5proxACT 10 digital keypad featuresPIN only10 user codes2 user groupsPush to exit inputIncorrect code lockoutDoor monitoring / contact inputTamper outputFire alarm overrideInterlockToggle mode12 - 24 Volt AC / DC supply2 x 5 amp, 30 Volt DC relays2 x 100 mA Darlington Driver outputsZinc diecast housing, stainless steel keysKeypad backlightingIndoor / outdoor (IP54) Surface / flush mount options

The FP4000 Fingerprint Codoor is a smart, stylish access control product that incorporates an electronic fingerprint reader, an electromechanical lock, a code lock and a battery power supply in a single housing.  It is designed to be mounted directly on any door in an indoor environment.When the FP4000 is fitted, the door handle on the outside of the door is disengaged and may be pressed down without opening the door.  Access through that door is granted only when an authorised fingerprint is scanned by a reader and/or when a valid PIN code is entered.  For safety reasons, the handle on the inside of the door is not affected by Fingerprint Codoor - it works normally for people leaving the premises - no fingerprint or code is required. Up to 32 different fingerprint templates and up to four 4-digit codes may be used with a single FP4000.  Repeated scanning of invalid fingerprints or entry of invalid codes blocks the reader from further attempts. The FP4000 model is suitable for continental European lock cases, with a distance of 72 mm between the centre of the door handle and the centre of the lock cylinder. Another model, the FP5000, is suitable for Scandinavian lock cases, with a distance of between 105 mm and 116 mm between the centre of the door handle and the centre of the lock cylinder. For more information about Fingerprint Codoor and Siemens' other access control products, please visit www.siemens.com/access
