eneo Network cameras

1/2.8" Sony STARVIS CMOS sensor Maximum resolution 3840x2160 pixels, 30fps AI analysis functions including object classification WDR 120dB, 3D-DNR noise reduction Motorised varifocal lens 2.8-12mm Smart Codec H.265/H.264, multi-streaming IR and white light LED illumination Browser independent (Edge, Safari, Firefox, Chrome) Supports ONVIF profiles S/T/G Supports audio and external alarm input and output Supports active deterrent (light & siren) Local storage via Micro SD card

*RTP, RTCP, RTSP, 3GPP, NTP, DNS, DDNS, PPPoE, UPnP, SAMBA, FTP, SMTP

*UPnP, RTSP, RTP, TCP, UDP, NTP

1/2.7" SmartSens CMOS sensor Maximum resolution 2880x1620 pixels AI analysis functions including object classification WDR 120dB, 3D-DNR noise reduction Motorised varifocal lens 2.8-12mm Smart Codec H.265/H.264, multi-streaming IR and white light LED illumination Browser independent (Edge, Safari, Firefox, Chrome) Supports ONVIF profiles S/T/G Supports audio and external alarm input and output Supports active deterrent (light & siren) Local storage via Micro SD card

1/2.8" Sony STARVIS CMOS Sensor Resolution max. 1920x1080 (Full HD) Smart Codec H.265 ROI (Region of Interest) Motion Detection, Privacy Zones, Slow Shutter Motorised Varifocal Lens 2.7 - 13.5mm DOL-WDR (120db) by triple scan images at 30/25fps PoE Supports ONVIF Profile S and T Vertical view 90°/270° Modus, H-Flip, Mirror IP66

1/2.8" Sony STARVIS CMOS Sensor Resolution max. 1920x1080 (Full HD) Smart Codec H.265 ROI (Region of Interest) Motion Detection, Privacy Zones, Slow Shutter Motorised Varifocal Lens 5.0 - 50mm DOL-WDR (120db) by triple scan images at 30/25fps PoE Supports ONVIF Profile S and T Vertical view 90°/270° Modus, H-Flip, Mirror Integrated connection box including connection board IP67

1/2.8" Sony STARVIS CMOS Sensor Resolution max. 1920x1080 (Full HD) Smart Codec H.265 ROI (Region of Interest) Motion Detection, Privacy Zones, Slow Shutter Motorised Varifocal Lens 2.7 - 13.5mm DOL-WDR (120db) by triple scan images at 30/25fps PoE Supports ONVIF Profile S and T Vertical view 90°/270° Modus, H-Flip, Mirror Integrated connection box including connection board IP67

1/1.8" High Sensitivity SmartSens CMOS sensor Maximum resolution 2560x1440 pixels AI analysis functions including object classification WDR 120dB, 3D-DNR noise reduction Built-in loudspeaker and microphone Motorised varifocal lens 2.8-12mm Smart Codec H.265/H.264, multi-streaming IR and white light LED illumination Browser independent (Edge, Safari, Firefox, Chrome) Supports ONVIF profiles S/T/G PoE IEEE 802.3af Local storage via Micro SD card



1/2.8" Sony STARVIS CMOS-Sensor Resolution max. 3840x2160 (4K) Lens fixed focal length 2.1mm DOL-WDR (120db) by triple scan images at 30/25fps Motion Detection, Privacy Zones, Slow Shutter Smart Codec H.265 ROI (Region of Interest) Supports ONVIF Profile S and T PoE Browser independent (IE, Edge, Mozilla, Safari, Chrome)

1/2.7" CMOS sensor Maximum resolution 2880x1620 pixels, 30fps AI analysis functions including object classification WDR 120dB, 3D-DNR noise reduction Fixed focal lens 2.2mm Smart Codec H.265/H.264, multi-streaming IR LED illumination Browser independent (IE, Edge, Safari, Firefox, Chrome) Supports ONVIF profiles S/T Supports audio (built-in microphone) Local storage via Micro SD card

1/2.8" Sony STARVIS CMOS-Sensor Resolution max. 3840x2160, 30 fps IR LED illumination AI analysis functions including object classification Smart Codec H.265/H.264, Multi-streaming Motorised varifocal lens 5.0 - 50mm Noise Reduction (3D-DNR), WDR 120dB Local storage via Micro SD card Supports ONVIF profiles S/T/G PoE IEEE802.3af Supports audio and external alarm input and output Browser independent (Edge, Safari, Firefox, Chrome) IP67

*SNTP, PPPoE, SMPT, FTP, ICMP

*PPPoE. Removable IR cut filter.

1/2.8" Sony STARVIS CMOS Sensor Resolution max. 1920x1080 (Full HD) Smart Codec H.265 ROI (Region of Interest) Motion Detection, Privacy Zones, Slow Shutter Motorised Varifocal Lens 2.7 - 13.5mm DOL-WDR (120db) by triple scan images at 30/25fps PoE Supports ONVIF Profile S and T Vertical view 90°/270° Modus, H-Flip, Mirror Integrated connection box including connection board IP67

1/3´´Sony 2.0 megapixels CMOS sensor. Integrated motion detection. Resolution of 1600 x 1200 (HD 720p) max. Audio and alarm in-/outputs. Simultaneous H.264 & MPEG-4 video streaming.

* SNTP, UpnP, SMTP.

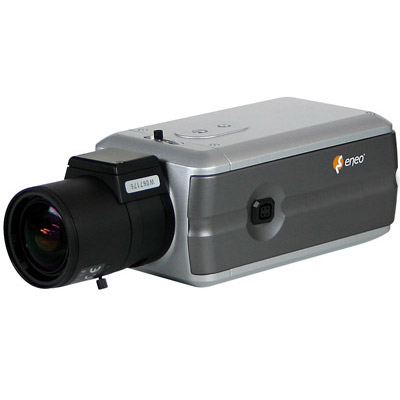

The NT series provides the most comprehensive range of eneo IP products.  A choice of three network domes and two servers in addition to three camera models will be available soon.The NTC-2101 is a top-class IP camera.  It has a sensitivity of 0.2 Lux at F1.2 (colour) and a horizontal resolution of 540 lines.  The camera is the ideal choice for 24-hour surveillance and comes with professional features such as digital noise reduction (DNR), mirror function, motion detection and configuration of privacy zones.The NT series network dome cameras are IP versions of the successful and proven eneo Fastrax, MiniTrax and Minidome series.  A vandal-proof IP Mini-dome is also available.  The NTD-6101/18 (Fastrax IP version) has a horizontal resolution of 480 lines as well as an 18x zoom lens with additional 12x digital zoom and a sensitivity of 0.5 Lux at F1.2 (colour).  Up to 240 presets can be saved.Additionally there is a choice from two servers with one channel (NTS-2101) or four channels (NTS-2104).All network products in the NT series offer event transmission by e-mail as well as pre and post alarm recording.  They use efficient MPEG-4 compression and transmit up to 25 pictures per second (720x576 pixels).  The small size of the MPEG4 datastream permits longer recording times and utilisation of smaller bandwidths.By the way:  The NT Manager software is bundled with all NT Series products.  This means that you get an extremely powerful tool for operation and configuration of the NT products in your IP-based video surveillance system - without any additional costs.

1/2.8" Sony STARVIS CMOS-Sensor Resolution max. 1920x1080 (Full HD) Lens fixed focal length 2.1mm DOL-WDR (120db) by triple scan images at 30/25fps Motion Detection, Privacy Zones, Slow Shutter Smart Codec H.265 ROI (Region of Interest) Supports ONVIF Profile S and T PoE Browser independent (IE, Edge, Mozilla, Safari, Chrome)

1/2.8" Sony STARVIS CMOS Sensor Resolution max. 2592x1944 (5MP) Lens fixed focal length - 2.8mm 3DNR, BLC, WDR (120db) PoE Object Classification Supports ONVIF Profile S Browser independent (IE, Edge, Safari, Google Chrome, Mozilla)

1/2.7" CMOS sensor Maximum resolution 3840x2160 pixels AI analysis functions including object classification D-WDR, 3D-DNR noise reduction Motorised varifocal lens 2.8-12mm Smart Codec H.265/H.264, multi-streaming IR LED lighting Browser independent (IE, Edge, Safari, Firefox, Chrome) Supports ONVIF profiles S/T PoE IEEE 802.3af Local storage via Micro SD card Supports audio and external alarm input and output

1/2.8" Sony STARVIS CMOS Sensor Resolution max. 3840x2160 (4K) Lens fixed focal length - 2.8mm 3DNR, BLC, WDR (120db) PoE Object Classification Supports ONVIF Profile S Browser independent (IE, Edge, Safari, Google Chrome, Mozilla)

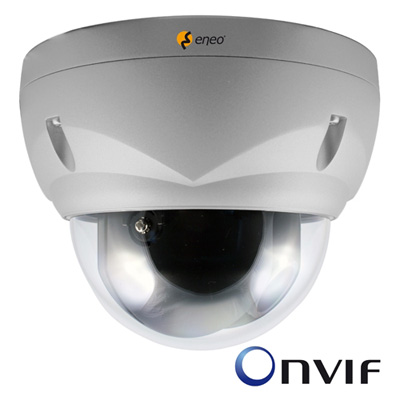

Megapixel, H.264 compression, ONVIF conformance - these three terms by themselves show that the latest eneo network cameras are state-of-the-art. And this is with a cost-effectivness unique in the sector. But cameras in the NXC and NXD Series have far more to offer. Let's look at this point-by-point: The NXC covers network cameras, the NXD Series fixed domes. Both series have a choice of four versions: with one or two megapixels, and each with and without a removable IR cut filter. In addition to MJPEG, all models offer the efficient H.264 compression that gives high picture quality with low bandwidth requirements. The resolution, frame rate and bit rate can be individually configured for up to four multiple video streams.ROI (Region of Interest): relevant regions in close viewThe ROI (Region of Interest) function allows particularly important regions to be designated. The corresponding signals are then transmitted at a high frame rate, resolution, bit rate and picture quality in the primary stream. Region sizes are individually configurable. Therefore, for instance, a camera can capture the complete point of sale in a supermarket and transmit it by MJPEG stream. Simultaneously though, the cash register itself can be defined as a region of interest so that the transactions made there are displayed on a different monitor in higher signal quality over a H.264 stream.Easy and flexible installationNXD Series fixed domes can be wall as well as ceiling mounted and their vandalism-proof housing with IP66 protection rating makes them the ideal choice for outside areas. They come with an integral varifocal lens with a focal length of 3-9mm and a light sensitivity of 1.3 Lux at F1.2 (measured with a 50% video signal). The two series offer recording security with optional backup on SD card. This local recording is automatically activated when a movement is detected or an alarm triggered.

1/2.8" Sony STARVIS CMOS-Sensor Resolution max. 1920x1080 (Full HD) Motorised varifocal length 2.7 - 13.5mm DOL-WDR (120db) by triple scan images at 30/25fps Motion Detection, Privacy Zones, Slow Shutter Smart Codec H.265 ROI (Region of Interest) Supports ONVIF Profile S and T PoE Browser independent (IE, Edge, Mozilla, Safari, Chrome)
