Bosch Security communication

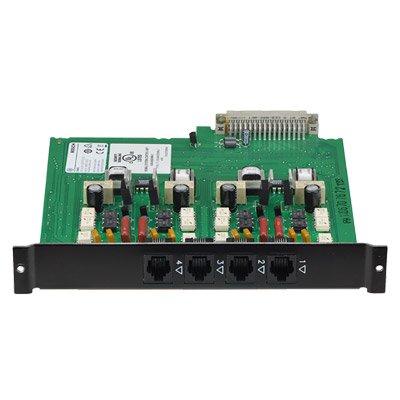

Modular design plug-in circuit board Provides isolation and transient suppression to the Conettix D6641 Telephone Line Card Provides four modular RJ11 jacks for telephone line connections

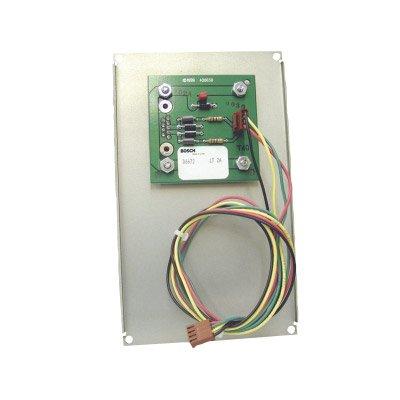

Creates a third serial port on the Conettix D6600 Communications Receiver/Gateway Provides a DB9 male connector and transient protection

Line card with digital signal processor (DSP) technology Answers and decodes signals from up to four telephone lines simultaneously The Conettix D6600 Communications Receiver/Gateway will accept up to eight telephone line cards to create a total of 32 telephone lines Needs one Connetix D6645 Telephone Line Terminator Card

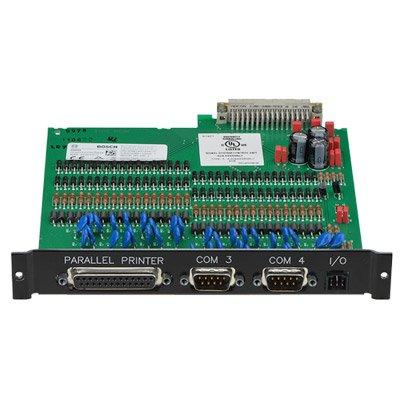

Modular design plug-in circuit board Provides a shielded interface between the Conettix D6610 CPU Line Card and external connections to automation database computers and printers Includes two serial ports, one parallel port, two programmable inputs, two programmable outputs

Dual internal antennas provide spatial and polar diversity for highly reliable RF signal reception Cover and wall tamper detection Multiple device and control panel supportive options as well as RF diagnostics ensure efficient and effective installation Supports RADION repeater to increase wireless system coverage and reliability External status LED

Dual internal antennas provide spatial and polar RF signal reception for high reliability Cover and wall tamper detection Multiple device enrolment options as well as RF diagnostics ensure efficient and effective installation Supports supervision of wireless points and repeaters External status LED

Fixed frequency of 433.42 MHz Wired (RS-485) to coordinator Wireless communication between receiver and transmitter Built-in 2 inputs and 2 relay outputs Remote firmware upgradable via wired RS-485

Supports cellular communication for remote programming and mobile apps on AMAX and Solution Series control panels Plug and Play installation makes future radio technology changes easy Compatible with new and most deployed Bosch control panels Supports remote installation of cellular modules for improved signal Works with plug-in communicators for primary or backup alarm communication, remote programming, and other remote applications A reliable way to add cellular network communications to existing or new commercial security and fire installations

Supports two-way IP communications using plug-in cellular communicators for compatible control panels Plug and Play installation makes future radio technology changes easy Compatible with new and most deployed Bosch control panels Supports remote installation of cellular modules for improved signal Works with plug-in communicators for primary or backup alarm communication, remote programming, and other remote applications A reliable way to add cellular network communications to existing or new commercial security and fire installations

Suitable for 1 LSN Gateways and 2 Control Centers (touch screen keypads) 8 supervised inputs and one unsupervised tamper input Two programmable outputs for optical and acoustical signalling device as well as for other local notification devices; two programmable relay outputs; and one auxiliary output Two Bosch Data Bus (BDB) interfaces and Ethernet port Additional integrated IP Communicator

Suitable for 8 LSN Gateways and 32 Control Centers (touch screen keypads) Up to 1500 addresses, 500 areas, and 996 users 8 supervised inputs and one unsupervised tamper input Two programmable outputs for optical and acoustical signalling device as well as for other local notification devices; two programmable relay outputs; and one auxiliary output Two Bosch Data Bus (BDB) interfaces and Ethernet port Additional integrated IP Communicator

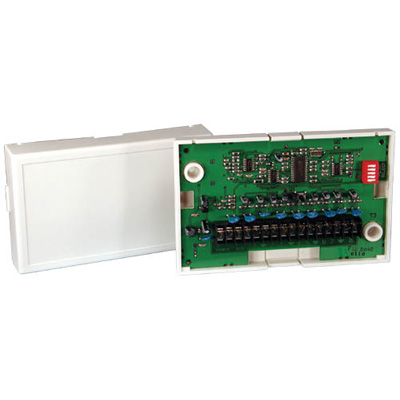

Bosch DS7432E remote module addresses up to eight input loops of conventional contacts to the multiplex bus of the control panel. The module has an additional serial dual end-of-line (EOL) wiring configuration.

Bosch DS7432 remote module addresses up to eight input loops of conventional contacts to the multiplex bus of the control panel. The module has an additional serial dual end-of-line (EOL) wiring configuration.

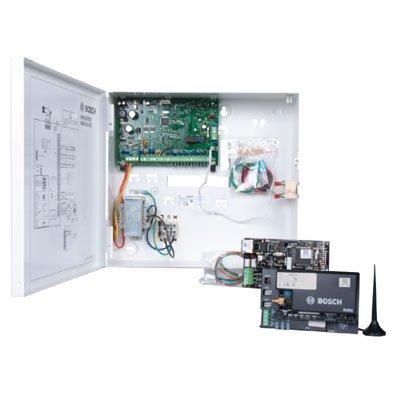

Kit includes one panel and one communicator Designed for residential and small to medium-sized businesses Offers 8 hardwired zones and 2 areas and comes with an enclosure and a transformer An on-board PSTN dialer transmits an alarm via the common telephone network to a phone and / or a communication center while at the same time a voice message is sent to the owner’s landline or mobile phone to inform about an intruder’s presence Commissioning the system is simple and involves minimum programming: the default settings already cover 90 % of the available functionality Programming can either be done via the AMAX TEXT, LCD and LED keypads or via the programming software (A-Link Plus) The intrusion system can be used with hardwired detectors from Bosch

Bosch DS7432-CHI remote module addresses up to eight input loops of conventional contacts to the multiplex bus of the control panel. The module has an additional serial dual end-of-line (EOL) wiring configuration.

Kit includes one panel and one communicator Designed for residential and small to medium-sized businesses Offers 64 zones and 16 areas and comes with an enclosure and a transformer An on-board PSTN dialer transmits an alarm via the common telephone network to a phone and / or a communication center while at the same time a voice message is sent to the owner’s landline or mobile phone to inform about an intruder’s presence Commissioning the system is simple and involves minimum programming: the default settings already cover 90 % of the available functionality Programming can either be done via the AMAX TEXT, LCD and LED keypads or via the programming software (A-Link Plus) The intrusion system can be used with both RADION wireless peripherals, operating at 433 Mhz and hardwired detectors from Bosch

Designed for residential and small to medium-sized businesses Offers 8 hardwired zones and 2 areas and comes with an enclosure and a transformer An on-board PSTN dialer transmits an alarm via the common telephone network to a phone and / or a communication center while at the same time a voice message is sent to the owner’s landline or mobile phone to inform about an intruder’s presence Commissioning the system is simple and involves minimum programming: the default settings already cover 90 % of the available functionality Programming can either be done via the AMAX TEXT, LCD and LED keypads or via the programming software (A-Link Plus) The intrusion system can be used with hardwired detectors from Bosch

Kit includes one panel and one communicator Designed for residential and small to medium-sized businesses Offers 32 zones and 8 areas and comes with an enclosure and a transformer An on-board PSTN dialer transmits an alarm via the common telephone network to a phone and / or a communication center while at the same time a voice message is sent to the owner’s landline or mobile phone to inform about an intruder’s presence Commissioning the system is simple and involves minimum programming: the default settings already cover 90 % of the available functionality Programming can either be done via the AMAX TEXT, LCD and LED keypads or via the programming software (A-Link Plus) The intrusion system can be used with both RADION wireless peripherals, operating at 433 Mhz and hardwired detectors from Bosch

Designed for residential and small to medium-sized businesses Offers 32 zones and 8 areas and comes with an enclosure and a transformer An on-board PSTN dialer transmits an alarm via the common telephone network to a phone and / or a communication center while at the same time a voice message is sent to the owner’s landline or mobile phone to inform about an intruder’s presence Commissioning the system is simple and involves minimum programming: the default settings already cover 90 % of the available functionality Programming can either be done via the AMAX TEXT, LCD and LED keypads or via the programming software (A-Link Plus) The intrusion system can be used with both RADION wireless peripherals, operating at 433 Mhz and hardwired detectors from Bosch

Kit includes one MAP panel 5000 small, one MAP Control Centre (touch screen keypad), one MAP LSN Gateway Module, one MAP Power Supply 150W and one MAP Panel Enclosure Kit Supports up to two multi-language touch screen control centres Supports one LSN gateway module with up to 127 LSN devices Eight supervised inputs and one unsupervised tamper input One auxiliary output, two Form C dry-contact relay outputs, and two programmable outputs for local notification devices Two Bosch Data Bus (BDB) interfaces and Ethernet port Event reporting via Ethernet (optional) Suitable for 1 LSN Gateway and 2 Control Centres (touch screen keypad)

Kit includes one MAP panel 5000 small COM, one MAP Control Center (touch screen keypad), one MAP LSN Gateway Module, one MAP Power Supply 150W and one MAP Panel Enclosure Kit Supports up to two multi-language touch screen control centres Supports one LSN gateway module with up to 127 LSN devices Eight supervised inputs and one unsupervised tamper input One auxiliary output, two Form C dry-contact relay outputs, and two programmable outputs for local notification devices Two Bosch Data Bus (BDB) interfaces and Ethernet port Event reporting via Ethernet (optional) and via integrated IP Communicator Suitable for 1 LSN Gateway and 2 Control Centres (touch screen keypad)

Designed for residential and small to medium-sized businesses Offers 64 zones and 16 areas and comes with an enclosure and a transformer An on-board PSTN dialer transmits an alarm via the common telephone network to a phone and / or a communication center while at the same time a voice message is sent to the owner’s landline or mobile phone to inform about an intruder’s presence Commissioning the system is simple and involves minimum programming: the default settings already cover 90 % of the available functionality Programming can either be done via the AMAX TEXT, LCD and LED keypads or via the programming software (A-Link Plus) The intrusion system can be used with both RADION wireless peripherals, operating at 433 Mhz and hardwired detectors from Bosch

With a D203 metal enclosure Connects directly to the data bus of a compatible control panel Each expander adds eight fully programmable Form C relay outputs Each output operates individually from the other seven outputs for complete flexibility

Provides a local connection between compatible control panels and approved applications RS-232/USB connectivity Enhanced direct connection for Remote Programming Software (RPS) RJ-16 data bus Transparent enclosure Diagnostic light emitting diodes (LEDs)

With an AE20 Plastic Enclosure Connects directly to the data bus of a compatible control panel Each expander adds eight fully programmable Form C relay outputs Each output operates individually from the other seven outputs for complete flexibility

Receives RF signals from RADION transmitters, repeaters, and glassbreaks Operates at 433.42 MHz For use with compatible SDI2 bus control panels Dual internal antennas provide spatial and polar RF signal reception for high reliability Cover and wall tamper protection Multiple device enrollment options as well as RF diagnostics ensure efficient and effective installation Supports supervision of wireless points (504), keyfobs (1000), and repeaters (8) External status LEDs

Suitable for applications requiring Form C outputs to operate auxiliary systems or to display fire system status at remote annunciators Can interface with building components such as HVAC, door lock releases, and stairwell pressurization for complete system control and monitoring Industrial, commercial, and institutional facilities are typical installations for the module Provides 8 programmable relays The eight onboard outputs can be programmed to activate on system alarm, system trouble, individual zone or point faults, and through remote control by authorised users

A sophisticated management and visualisation solution for small to medium fire or intrusion detection systems All relevant information in one user interface, and intuitive operation via interactive maps and HTML5 action plans Ergonomic central console guides and unburdens the operator Full event log and audit trail for forensic investigations
