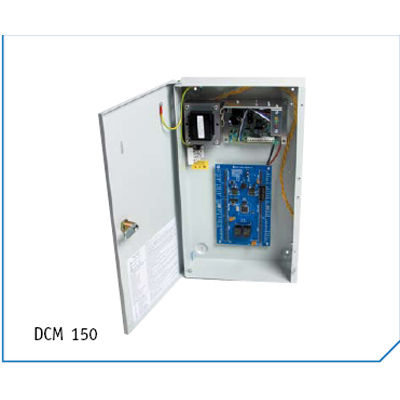

CEM DCM150 door control module

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: CEM
Model code: DCM150
Controller Type: Networkable
Max No. of Doors per Controller: 2
Networkable: Yes

Additional info:

Acting as a wiring concentrator for up to two doors it allows local door furniture and read heads to be wired to a single point near the door and remotely connected, via CAT5 or Belden 8723 cable, to a CEM intelligent controller such as webEntryTM or a S9000 type controller for use on AC2000 SE. Up to sixteen units can be multi-dropped from a single RS485 Communications line up to a distance of 1,200 Metres from the host controller.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	CEM
Manufacturer	CEM Systems Ltd
Category	Access Control>Access control controllers
Model code	DCM150
Controller Type	Networkable
Max No. of Doors per Controller	2
Networkable	Yes
Communication Type	RS485
Universal / Wiegand Reader Interface	Yes
Electrical Specifications	Voltage: 11 ~ 15 V DC Power Consumption: 300 mA
Physical Specifications	Dimensions mm: 180 x 120 x 20 Weight g: 100
Environmental Specifications	Operating Temp ^oC: -20 ~ +70 Operating Humidity %: 0 ~ 95
Additional info	Acting as a wiring concentrator for up to two doors it allows local door furniture and read heads to be wired to a single point near the door and remotely connected, via CAT5 or Belden 8723 cable, to a CEM intelligent controller such as webEntryTM or a S9000 type controller for use on AC2000 SE. Up to sixteen units can be multi-dropped from a single RS485 Communications line up to a distance of 1,200 Metres from the host controller.
