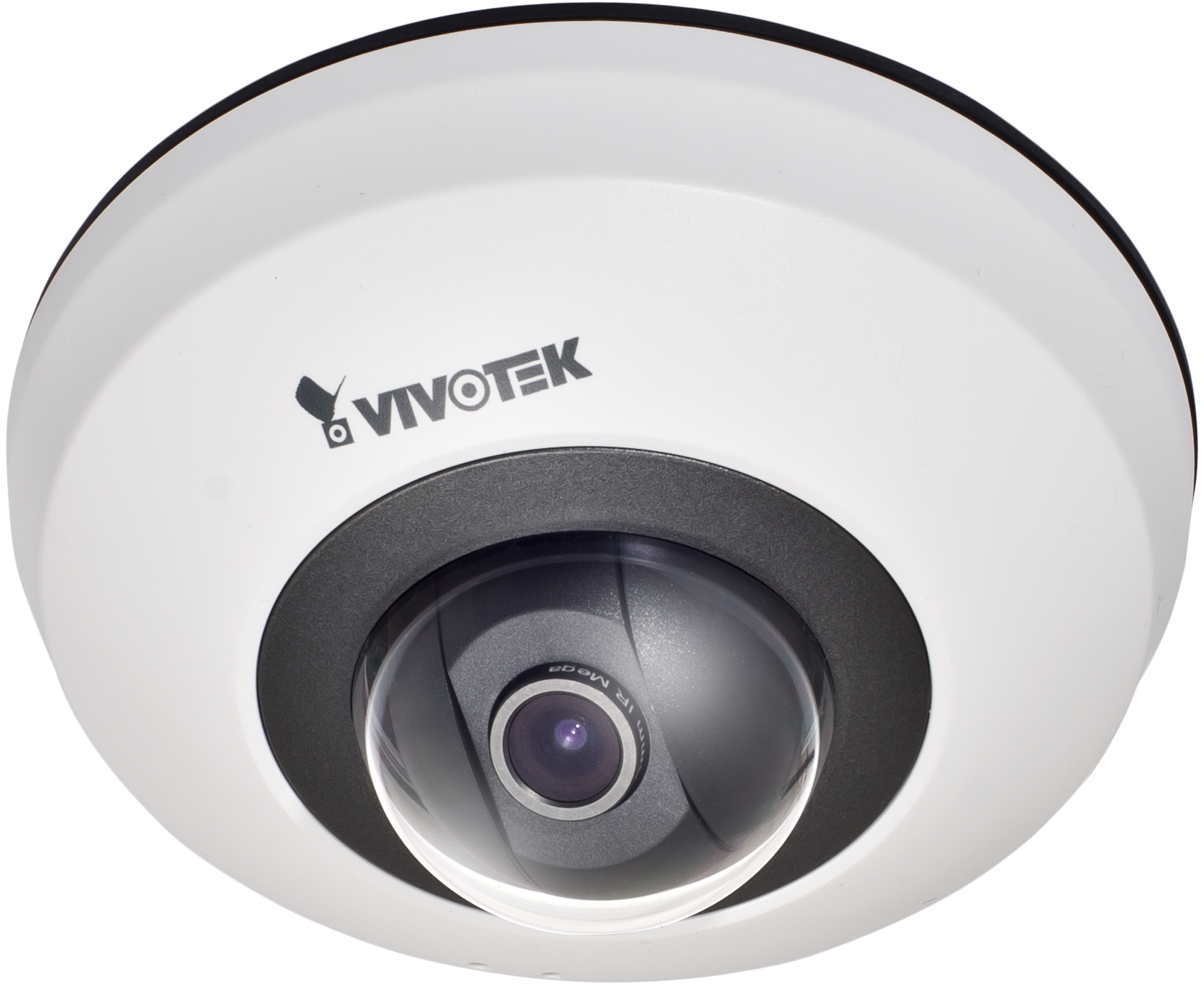

Vivotek PD8136 pan/tilt dome network camera
Technical Specification
- Make: VIVOTEK
- Model code: PD8136
- Chip Inch Size: 1/4 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 1920 x 1080
VIVOTEK PD8136 is equipped with a 1MP sensor enabling viewing resolution of 1280x800 at 30 fps. Users need to look no further for an all-in-one camera capable of capturing high quality, high resolution video with pan & tilt control. With a stylish design and small footprint to fit most installation environments, it is the best choice for indoor surveillance applications such as retail stores, offices, or homes.
Read more| Make | VIVOTEK |
|---|---|
| Manufacturer | VIVOTEK |
| Category | CCTV>IP Dome cameras |
| Model code | PD8136 |
| Chip Inch Size | 1/4 inch |
| Colour Type | Colour / Monochrome |
| Resolution TVL | 1920 x 1080 |
| HD | Yes |
| Megapixel | Yes |
| Sensitivity lux | 0.2 |
| Dome Type | PTZ |
| Indoor/Outdoor | Indoor |
| Electrical Specifications |
Voltage: PoE Power Consumption: 6.24W |
| Focal length | 2.8 |
| Compression | H.264, MJPEG, MPEG-4 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/5 ~ 1/32,000 s |
| S/ N (Signal/ Noise) Ratio dB | >50 |
| Built-in IR LED | Yes |
| Zoom Ratio | x16 |
| Network Properties |
Interface: 10/100 Mbps Ethernet, RJ-45 Network Protocols: : IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, and 802.1X Control: ePTZ Image Frame Rate: 30 |
| Physical Specifications |
Dimensions mm: 120 x 55 Weight g: 180 |
| Environmental Specifications | Operating Temp oC: 0 ~ 45 |
| System Requirements |
Operating System: Microsoft Windows 7/Vista/XP Web Browser: Mozilla Firefox, Internet Explorer |
| Additional info |
VIVOTEK PD8136 is equipped with a 1MP sensor enabling viewing resolution of 1280x800 at 30 fps. Users need to look no further for an all-in-one camera capable of capturing high quality, high resolution video with pan & tilt control. With a stylish design and small footprint to fit most installation environments, it is the best choice for indoor surveillance applications such as retail stores, offices, or homes. |
| Download PDF version Download PDF version | |
