Security within Security, VIVOTEK secure cybersecurity with IB9365-EHT
Product Profile

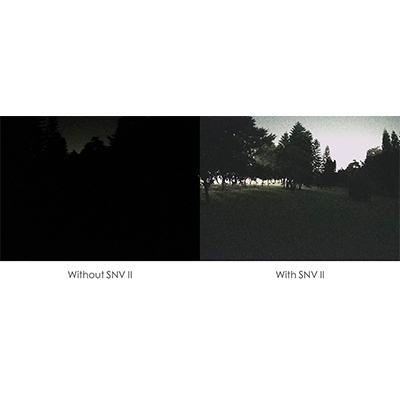

The IB9365 series is the new flagship outdoor bullet network camera from VIVOTEK, equipped with a full HD sensor capable of 1920x1080 resolution at 60 fps. With the most updated VIVOTEK SNV and WDR Pro technology, the IB9365 series is capable of capturing the highest quality images in both low light and high contrast environments.
Night time surveillance technology
The IB9365 series also offers the best in night time surveillance technology. By adopting Smart IR II technology from VIVOTEK speed domes, the IB9365 IR illuminators now align with the remote focus lens' focus angle to provide the best IR image quality at any lens setting. This feature optimises IR intensity, reduces IR hotspots, and increases the IR effective range up to 50 meters.
Video compression
Additionally, the IB9365 series employs VIVOTEK's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90% while still maintaining excellent image quality compared to traditional H.264 without smart streaming. Furthermore, the VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to add customised programs for various applications and user scenarios. Protecting all these features is the IB9365's IP66, IP67 and IK10 rated housing, capable of operating from -50°C to 50°C.
Cybersecurity
Lastly but most importantly, the series of cameras are embedded Trend Micro’s anti-intrusion software, empowering them to automatically detect and prevent credential-based attack as well as block suspicious events, and enabling users to enjoy higher levels of network security.
Technical Specification
| Make | VIVOTEK |
|---|---|
| Manufacturer | VIVOTEK |
| Category | CCTV>IP cameras |
| Model code | IB9365-EHT |
| Chip Inch Size | 1/2 inch |
| Colour Type | Colour / Monochrome |
| Resolution | 1920 x 1080 resolution |
| Digital (DSP) | Yes |
| Specialist Type | Infrared |
| Sensitivity Lux | 0 ~ 0.04 |
| Auto Iris | Yes |
| Direct Drive | Yes |
| Electrical Specifications |
Voltage: 12 V DC / 24 V AC / PoE Power Consumption: 24.8 W |
| Focal Length mm | 3.5 ~ 11.4 |
| Mount Type | Pole, Corner |
| Wide Dynamic Range | Yes |
| Network Properties |
Image Frame Rate: 60 fps Interface: 10 Base-T/100 Base-TX Ethernet (RJ-45) Network Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/TLS, NTCIP |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1/5 sec. ~ 1/32,000 sec. |
| S/ N (Signal/ Noise) Ratio dB | 66 |
| Zoom | Yes |
| Compression Type | H.265, H.264, MJPEG |
| Physical Specifications |
Weight g: 1,475 Dimensions mm: 121 x 121 x 351 |
| Environmental Specifications |
Protection: IP66, IP67, IK10 Operating Temperature oC: -50 ~ +50 C (-58 ~ +122 F) Operating Humidity %: 90 |
| System Requirements |
Operating System: Microsoft Windows 8/7 Web Browser: Mozilla Firefox 7~43 (streaming only), Internet Explorer 10/11 |
| Additional info |
|
| Download PDF version Download PDF version | |
