Vivotek FD8363 true day/night full HD network dome camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vivotek FD8363 true day/night full HD network dome camera

Features:

Make: VIVOTEK
Model code: FD8363
Chip Inch Size: 1/3 inch
Colour Type: True Day / Night
Resolution TVL: 1920 x 1080

Additional info:

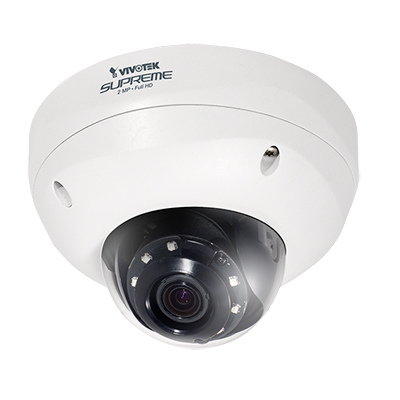

Vivotek FD8363 true day/night full HD network dome camera offers 2-megapixel or 1080p Full HD resolution with superb image quality up to 30 fps. The camera comes with a removable IR-cut filter and 15-meter IR illuminators to provide great clarity 24 hours a day. It is especially suitable for monitoring wide open outdoor areas such as building entrances, airports, or applications requiring accurate identification.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	VIVOTEK
Manufacturer	VIVOTEK
Category	CCTV>IP Dome cameras
Model code	FD8363
Chip Inch Size	1/3 inch
Colour Type	True Day / Night
Resolution TVL	1920 x 1080
HD	Yes
Megapixel	Yes
Sensitivity lux	0.001
Dome Type	Static
Indoor/Outdoor	Outdoor
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC Power Consumption: 6.9 W
Focal length	3 ~ 9 mm
Rotation Angles^o	360
Compression	H.264, MJPEG & MPEG-4
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/5 sec. ~ 1/32,000 sec
S/ N (Signal/ Noise) Ratio dB	> 52
Built-in IR LED	Yes
Zoom Ratio	x48
Network Properties	Interface: 10Base-T/100 BaseTX Ethernet (RJ-45) Network Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X Image Frame Rate: 30 fps
Physical Specifications	Dimensions mm: 173 x 115 Weight g: 1,220
Environmental Specifications	Operating Temp ^oC: -20 ~ 50 C (-4 ~ 122 F) Protection: IP66
System Requirements	Operating System: Microsoft Windows 7/Vista/XP/2000 Web Browser: Mozilla Firefox 7~10 (streaming only) Internet Explorer 7.x or 8.x
Additional info	Vivotek FD8363 true day/night full HD network dome camera offers 2-megapixel or 1080p Full HD resolution with superb image quality up to 30 fps. The camera comes with a removable IR-cut filter and 15-meter IR illuminators to provide great clarity 24 hours a day. It is especially suitable for monitoring wide open outdoor areas such as building entrances, airports, or applications requiring accurate identification.
