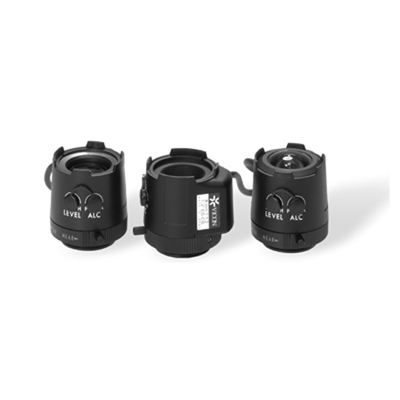

Vicon V8.0-1.2CS-G-3 CCTV camera lens

Technical Specification

Features:
  • Make: Vicon
  • Model code: V8.0-1.2CS-G-3
  • Lens Format inches: 1/3 inch
  • Focal Length mm: 8.0 mm focal length
  • Iris Type: Auto Iris
Read more
Additional info:

The lens cable is supplied with a molded-in connector which is compatible with the special connector built into many Vicon camera models.  Thus, no connector soldering is required.

Read more
Make Vicon
Manufacturer Vicon Industries
Category CCTV>CCTV camera lenses
Model code V8.0-1.2CS-G-3
Lens Format inches 1/3 inch
Focal Length mm 8.0 mm focal length
Iris Type Auto Iris
Lens Mount CS mount
F-Stop 1.2 F-stop
Direct Drive Yes
Angle (Field) of View o 35
Physical Specifications Dimensions mm: 39.8 x 34.5 x 36.5
Weight g: 40
Environmental Specifications Operating Humidity %: 0 ~ 90
Additional info

The lens cable is supplied with a molded-in connector which is compatible with the special connector built into many Vicon camera models.  Thus, no connector soldering is required.
