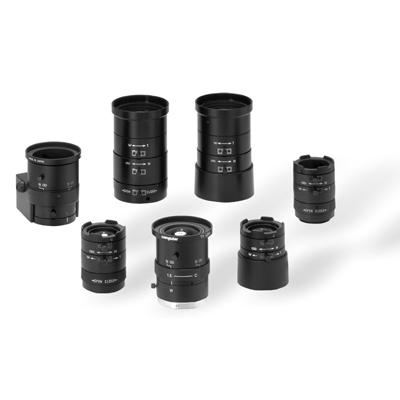

Vicon V2.8-12VFI CCTV camera lens

Technical Specification

Features:
  • Make: Vicon
  • Model code: V2.8-12VFI
  • Zoom type: Zoom
  • Lens Format inches: 1/3 inch
  • Focal Length mm: 2.8 ~ 12 mm focal length
Read more
Additional info:

Focal length is infinitely adjustable between the two limits.  Optical construction of 10 elements in 7 groups assures sharp, high-contrast images.  The lenses are equipped with CS-type mounts.

Read more
Make Vicon
Manufacturer Vicon Industries
Category CCTV>CCTV camera lenses
Model code V2.8-12VFI
Zoom type Zoom
Lens Format inches 1/3 inch
Focal Length mm 2.8 ~ 12 mm focal length
Iris Type Manual Iris
Lens Mount CS mount
F-Stop 1.3 F-stop
Zoom Ratio 4.29x zoom
Angle (Field) of View o 98.2 ~ 23.8
Physical Specifications Dimensions mm: 56 x 41
Weight g: 70
Environmental Specifications Operating Temperature oC: -20 ~ +50
Varifocal Yes
Additional info

Focal length is infinitely adjustable between the two limits.  Optical construction of 10 elements in 7 groups assures sharp, high-contrast images.  The lenses are equipped with CS-type mounts.
