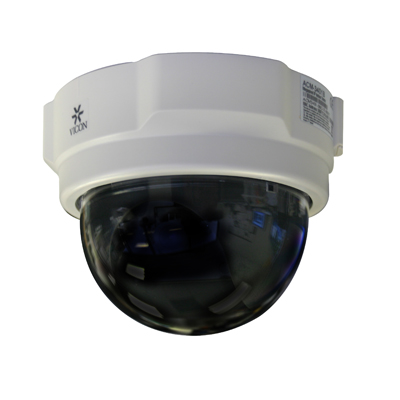

Vicon MPD-955DN-O is a megapixel camera with up to 1.3 resolution; micron megapixel CMOS module.
Technical Specification
Features:
- Make: Vicon
- Model code: MPD-955DN-O
- Series: I-Onyx Series
- Chip Inch Size: 1/3 inch
- Colour Type: Colour
| Make | Vicon |
|---|---|
| Manufacturer | Vicon Industries |
| Category | CCTV>IP cameras |
| Model code | MPD-955DN-O |
| Chip Inch Size | 1/3 inch |
| Colour Type | Colour |
| Resolution | 1280 resolution |
| Digital (DSP) | Yes |
| Specialist Type | Network |
| Sensitivity Lux | 0.05 |
| Auto Iris | Yes |
| Direct Drive | Yes |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 3.4 W |
| Lens Mount | C/CS mount |
| Focal Length mm | 3.3 ~ 12 / F1.6 |
| Mount Type | Surface |
| Wide Dynamic Range | Yes |
| Picture Elements HxV | 1280 x 1024 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| S/ N (Signal/ Noise) Ratio dB | >44 |
| Synchronisation | Internal |
| Signal Mode | PAL, NTSC |
| Zoom | Yes |
| Compression Type | MPEG-4, JPEG |
| Network Properties | Interface: LAN |
| Physical Specifications | Dimensions mm: 151.7 x 115 |
| Environmental Specifications |
Protection: IP66 Operating Temperature oC: -30 ~ +50 |
| Download PDF version Download PDF version | |
