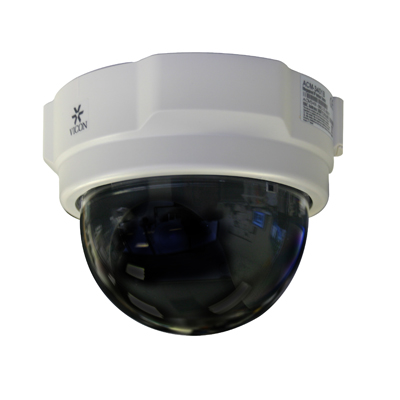

The Vicon I-ONYX megapixel camera range
Product Profile
The five new cameras in Vicon's I-ONYX camera range all incorporate the very latest megapixel technology.
The range includes two box cameras (colour and day/night versions) and an indoor colour dome. Also in the range are an impact-resistant Day/Night dome and a Bullet camera with built-in IR LEDs - both of which are suitable for outdoor applications.
Common to all of these superb cameras are the following key features:
- User selection of image resolution - from 640 x 480 to 1280 x 1024
- Progressive scan images
- Choice of M-JPEG or MPEG-4 compression
- PoE (Power over internet) or via an included 12 volt power supply
- Lens included with each camera
Vicon's 1.3 megapixel cameras utilise ‘progressive scan' to deliver cleaner images and more defined imaged on moving objects.
Innovative high-performance megapixel cameras from Vicon - your long term CCTV partner.
Technical Specification
| Make | Vicon |
|---|---|
| Manufacturer | Vicon Industries |
| Category | CCTV>IP cameras |
| Model code | MP-955DN |
| Chip Inch Size | 1/3 inch |
| Colour Type | Colour / Monochrome |
| Resolution | 1280 resolution |
| Digital (DSP) | Yes |
| Specialist Type | Megapixel |
| Sensitivity Lux | 0.05 |
| Auto Iris | Yes |
| Direct Drive | Yes |
| Lens Mount | C/CS mount |
| Electrical Specifications |
Voltage: 12 V DC, PoE Power Consumption: 4.3 W |
| Focal Length mm | 4.2 @ F1.8 |
| Mount Type | Surface |
| Wide Dynamic Range | Yes |
| Picture Elements HxV | 1280 x 1024 |
| Network Properties |
Image Frame Rate: 30 fps Interface: LAN |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1/20~1/2000 |
| S/ N (Signal/ Noise) Ratio dB | >44 |
| Synchronisation | Internal |
| Signal Mode | PAL, NTSC |
| Zoom | Yes |
| Compression Type | MPEG-4, JPEG |
| Physical Specifications | Dimensions mm: 55 x 67 x 29.5 |
| Environmental Specifications | Operating Temperature oC: 10 ~ 50 |
| Additional info | Mechanical IR cut filter. Lens angle of view: 75 (horizontal). |
