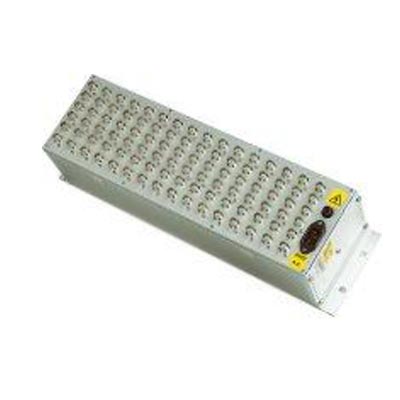

Siemens VID101R - video distribution amplifier providing multiple outputs

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Siemens VID101R - video distribution amplifier providing multiple outputs

Features:

Make: Vanderbilt
Model code: VID101R
Video Distribution Amplifier: Yes
No of Video Inputs: 16 channels
No of Video Outputs: 5 outputs

Additional info:

Receives video signal and provides multiple outputs, at same amplitude as input. VID101R operates from 240V AC supply and has 16 x VID101, assembled to fit into a 19" rack. Internal use only.

Contact manufacturer Contact manufacturer

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	CCTV>Video signal devices & accessories
Model code	VID101R
Video Distribution Amplifier	Yes
No of Video Inputs	16 channels
No of Video Outputs	5 outputs
Bandwidth MHz	10 MHz bandwidth
Signal-to-Noise Ratio dB	>42 dB ratio
Physical Specifications	Dimensions mm: 126 x 483 x 134 Weight g: 3,380
Electrical Specifications	Voltage: 240 V AC
Additional info	Receives video signal and provides multiple outputs, at same amplitude as input. VID101R operates from 240V AC supply and has 16 x VID101, assembled to fit into a 19" rack. Internal use only.
