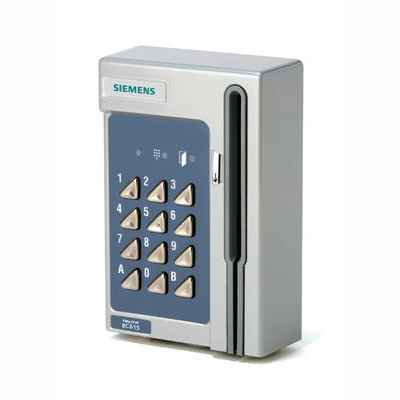

Siemens compact card readers

Product Profile

Please note: this is a discontinued product.

Go to Replacement product

Proximity and Magnetic Stripe card readers providing free-flowing security with minimal restrictions: -

For use on a single door
Memory for 1000 cards
Can be upgraded for use in Siemens Entro multi-site online system
Allows freedom of movement with effective safeguards
Simple to install

Freedom of Movement
Siemens Compact Cardreaders are stand-alone readers, both work either as a high quality Magnetic Stripe or Proximity Reader. Both are easy to install and provide a high level of security, whilst maximizing freedom of movement within a business environment. Both are suitable for indoor or outdoor use, being manufactured to very high standards.

Upgrade

As an organization grows, the Siemens products range grows with you. Compact Cardreaders can be used as standalone readers, or they can be upgraded for use within Siemens Entro PC based, multi-site access control system.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Technical Specification

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	Access Control>Access control readers
Model code	SI-BC615
Reader Type	Card Swipe
Standalone/ Networkable	Standalone
IP Rating	IP54
Mount Type	Surface mount
Keypad Integrated	Yes
LED / Beep	LED
Electrical Specifications	Voltage: 12 ~ 30 V DC Power Consumption: 70 mA
Physical Specifications	Dimensions mm: 160 x 110 x 47
Environmental Specifications	Operating Temp ^oC: -35 ~ +50
Additional info	The Siemens Compact Cardreader is a standalone reader, working either as high quality Proximity or Magnetic Stripe Reader. Compact Cardreaders are easy to install and can be used either as standalone or can be upgraded to Siemens Entro PC based access control system. The readers can be installed both indoors and outdoors. Data can be output to a printer via the RS-232 interface. Reader can support memory up to 1000 cards. Other benefits include emphasis on "free-flowing security" allowing freedom of movement with effective safeguards, long-term investment, and flexibility due to combined PIN number and card.
