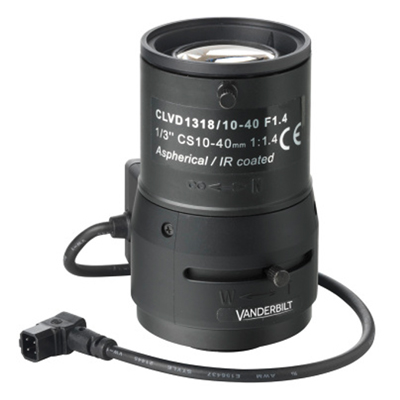

Vanderbilt 13VG1040ASIR Varifocal Lens 10–40mm CS mount

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vanderbilt 13VG1040ASIR Varifocal Lens 10–40mm CS mount

Features:

Make: Vanderbilt
Model code: 13VG1040ASIR
Lens Type: Varifocal
Lens Format inches: 1/3 inch
Focal Length mm: 10 ~ 40 mm focal length

Additional info:

This is a 1/3" varifocal, Auto Iris (direct drive) lens that is suitable for CS mount cameras. Its benefits from high performance aspherical glass to reduce aberrations and IR correction that compensates for the focus shift that occurs when the illumination changes from visible to infrared light suitable for day/night cameras. Adjustable screw locks ensure focal-length and focus adjustments are easy to set up and secure.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	CCTV>CCTV camera lenses
Model code	13VG1040ASIR
Lens Type	Varifocal
Lens Format inches	1/3 inch
Focal Length mm	10 ~ 40 mm focal length
Iris Type	Auto Iris
Lens Mount	CS mount
F-Stop	F.1.4 ~ F360 F-stop
IR Corrected (Aspherical)	Yes
Direct Drive	Yes
Angle (Field) of View ^o	7 ~ 27.5
Minimum Object Distance m	0.5
Physical Specifications	Dimensions mm: 71 Weight g: 89
Environmental Specifications	Operating Temperature ^oC: -20 ~ +60 C (-4 ~ +140 F)
Additional info	This is a 1/3" varifocal, Auto Iris (direct drive) lens that is suitable for CS mount cameras. Its benefits from high performance aspherical glass to reduce aberrations and IR correction that compensates for the focus shift that occurs when the illumination changes from visible to infrared light suitable for day/night cameras. Adjustable screw locks ensure focal-length and focus adjustments are easy to set up and secure.
