Hanwha Vision Day/Night surveillance

Hanwha Techwin SNH-1011 is a true day/night IP camera with free web portabl and push notification features. The camera's night vision offer clear view with built-in infra-red LEDs.

The SNV-5084 vandal-resistant dome camera from Hanwha Techwin  Techwin's WiseNetIII network range features its most advanced technology with 1.3 megapixel 720p high definition images. Its high end functions include 130dB WDR, low light performance down to 0.05 lux (F1.2, 50IRE, color) creating clear images under low light conditions, and P-iris support which results in images with better contrast, clarity, resolution and depth of field.

Hanwha Techwin SNV-7084 3MP IP dome camera features 120dB Wide Dynamic Range and motorised varifocal lens which result in easy focus control. It also features multi-crop streaming.

2 Megapixel (1920 x 1080) resolution Built-in 4mm fixed lens Ultra-compact design 0.03Lux (Color), WDR (120dB) 30fps@2MP (H.265/H.264) H.265, H.264, MJPEG codec support, Multiple streaming Defocus detection, Motion detection, Tampering detection People counting for retail business intelligence Micro SD/SDHC/SDXC (128GB) memory slot, PoE Hallway view, WiseStream II support IP42, IK08 rated LDC support (Lens Distortion Correction)

Samsung Techwin has released open platform WiseNetIII DSP chipset for IP cameras. Samsung Techwin is committed to ‘Changing the face of IP’. Its product development strategy is based on the understanding that in the current challenging economic environment, businesses and organisations are understandably looking to achieve maximum long term benefit from their investment in video surveillance systems. Future-proof, flexible solutions End-users want to purchase a solution that is not just fit for today’s purposes, but is also future proof in terms of its expandability and its ability to integrate with new technology in the future. One of the strengths of the WiseNetIII DSP chipset is that it provides customers, now and in the future, complete freedom to choose their perfect combination of video analytics and video management software (VMS) which best matches their individual surveillance solution requirements.

2 Megapixel (1920 x 1080) resolution 6mm fixed lens 0.1Lux (Colour), 0Lux (B/W, IR LED on) 30fps@2MP (H.265/H.264) H.265, H.264, MJPEG codec support, Multiple streaming Day & Night (ICR), WDR (120dB) Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line detection Micro SD / SDHC / SDXC (128GB) memory slot, PoE / 12V DC IR viewable length 30m IP66, IK10 rated Hallway view, WiseStream II support Analogue video out for easy installation LDC support (Lens Distortion Correction)

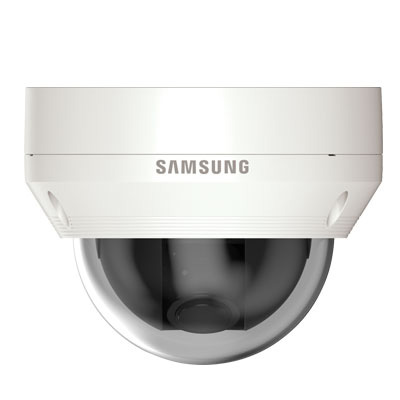

Hanwha Techwin SCV-5083 is a 1280H WDR vandal-resistant dome camera. It is a part of Hanwha Techwin's "Beyond" series of analogue cameras. The camera has privacy masking for up to 24 zones and coaxial communication.

The SNO-1080R is a stylish general purpose VGA weatherproof IR camerasuitable for a wide range of outdoor applications which require 24/7monitoring. With the Hanwha Techwin WiseNetS DSP chipset at its core,which delivers a host of advanced features including face detectionanalytics, third generation Hanwha Techwin Super Noise Reduction(SSNRIII) to eliminate image noise in low light conditions, and Hanwha Techwin Super DynamicRange (SSDR): it has an analogue video output port enabling conventionalanalogue control device to make set-up on site easy.

Hanwha Techwin SND-7084 3MP IP dome camera features 120dB Wide Dynamic Range, low light performance that helps create clear images in low light conditions, and built-in 2.8x motorised varifocal lens which result in easy focus control. It also features built-in mic and multi-crop streaming.

The Hanwha Techwin SNP-6201NP is a 1/3 inch colour / monochrome IP PTZ camera with built-in 20x optical zoom lens. The IP dome camera has 2 MP resolution, intelligent video analytics, face and audio detection, H.264 & MJPEG dual codec, and 360° endless Pan, Tilt/ Zoom.

2 Megapixel & 5 Megapixel resolution 015Lux@F1.4 (Colour), 0.0015Lux@F1.4 (B/W) Day & Night (ICR), WDR (150dB / 120dB) Modular structure and motorised PTRZ Hallway View, WiseStreamII Support Video & audio analytics, Audio playback DIS and shock detection with built-in gyro sensor IP52/IK10, PoE, 12VDC

2 Megapixel (1920 x 1080) resolution Built-in 6mm fixed lens 0.1Lux (Colour), 0Lux (B/W, IR LED on) 30fps@2MP (H.265/H.264) H.265, H.264, MJPEG codec supported, Multiple streaming Day & Night (ICR), WDR (120dB) Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line detection Micro SD / SDHC / SDXC (128GB) memory slot, PoE / 12V DC IR viewable length 20m Hallway view, WiseStream II support Analogue video out for easy installation LDC support (Lens Distortion Correction) Built-in microphone

2MP resolution 2.8 - 12mm (4.3x) motorised varifocal Maximum 120fps (H.265/H.264) WiseIR: IR viewable length 50 m (164.04ft) Day & Night (ICR), extremeWDR (150 dB) Hard coated dome bubble WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine) Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion) Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear IP66/IP67/IP6K9K, NEMA4X, IK10+

Hanwha Techwin SNH-P6410BN true day/night IP camera features IR-Led as well as 2-way audio. It also has motion and audio detection, along with fixed focus control.

2 Megapixel resolution 0.015Lux@F1.4 (Colour), 0.0015Lux@F1.4 (B/W) Day & Night (ICR), WDR (150dB) Hallway View, WiseStreamII Support Video & Audio analytics, Audio playback DIS and shock detection with built-in gyro sensor Modular structure, PoE, 12VDC IP52, IK10

4K resolution 4.4 - 9.3mm (2.1x) motorised varifocal Maximum 30fps (H.265/H.264) WiseIR: IR viewable length 50 m (164.04ft) Day & Night (ICR), extremeWDR (120 dB) Hard coated dome bubble WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine) Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion) Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear IP66/IP67/IP6K9K, NEMA4X, IK10+

6MP resolution 4.4 - 9.3mm (2.1x) motorised varifocal Maximum 30fps (H.265/H.264) WiseIR: IR viewable length 50 m (164.04ft) Day & Night (ICR), extremeWDR (120 dB) Hard coated dome bubble WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine) Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion) Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear IP66/IP67/IP6K9K, NEMA4X, IK10+

4K resolution 4.4 - 9.3mm (2.1x) motorised varifocal Maximum 30fps (H.265/H.264) WiseIR: IR viewable length 50 m (164.04ft) Day & Night (ICR), extremeWDR (120 dB) Hard coated dome bubble WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine) Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion) Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear IP52, IK10

6MP resolution 4.4 - 9.3mm (2.1x) motorised varifocal Maximum 30fps (H.265/H.264) WiseIR: IR viewable length 50 m (164.04ft) Day & Night (ICR), extremeWDR (120 dB) Hard coated dome bubble WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine) Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion) Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear IP52, IK10

30fps at VGA(640x480) resolution Built-in 3mm fixed lens H.264, MJPEG Dual Encoding Multiple Streaming Day and Night Function (Software) SSDR, SSNRIII Motion Detection, Face Detection

4 Megapixel (2560 x 1440) resolution Built-in 3mm fixed lens 30fps@ all resolutions (H.265/H.264) H.265/H.264, MJPEG codec support, Multiple streaming Day & Night (ICR), WDR (120dB) Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering Micro SD/SDHC/SDXC memory slot PoE Hallway View, WiseStream II, LDC support White light viewable length 20m Light alarm support IP66, IP67, IK10

2MP resolution 2.8 - 12mm (4.3x) motorised varifocal Maximum 120fps (H.265/H.264) WiseIR: IR viewable length 50 m (164.04ft) Day & Night (ICR), extremeWDR (150 dB) WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine) Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion) Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear IP52, IK10

2 Megapixel (1920 x 1080) resolution 6mm fixed lens 0.1Lux (Colour), 0Lux (B/W, IR LED on) 30fps@2MP (H.265/H.264) H.265, H.264, MJPEG codec support, Multiple streaming Day & Night (ICR), WDR (120dB) Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line detection Micro SD / SDHC / SDXC (128GB) memory slot, PoE, 12 V DC IR viewable length 30m IP66, IK10 rated Hallway view, WiseStream II support Analogue video out & simple focus for easy installation LDC support (Lens Distortion Correction)

2MP resolution 2.8 - 12mm (4.3x) motorised varifocal Maximum 120fps / 100fps IR viewable length: 15m (49.21ft), 30m (98.43ft) based on scene Day & Night (ICR), extremeWDR (150 dB) Hard coated dome bubble WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine) Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion) Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear IP66/IP67/IP6K9K, NEMA4X, IK10+

2 Megapixel (1920 x 1080) resolution 2.8mm fixed lens 0.1Lux (Colour), 0Lux (B/W, IR LED on) 30fps@2MP (H.265/H.264) H.265, H.264, MJPEG codec support, Multiple streaming Day & Night (ICR), WDR (120dB) Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line detection Micro SD / SDHC / SDXC (128GB) memory slot, PoE / 12V DC IR viewable length 20m IP66, IK10 rated Hallway view, WiseStream II support Analogue video out for easy installation LDC support (Lens Distortion Correction)

Max. 5MP resolution Max. 30fps Colour: 0.07Lux (F1.6, 1/30sec), BW: 0.007Lux (F1.6, 1/30sec, 30IRE) Focal length: 3.2 - 10.2mm (3.2x) motorised varifocal H.265, H.264, MJPEG codec supported Multiple streaming (up to 5 profiles) Day & Night (ICR), WDR (120dB) Micro SD/SDHC/SDXC 1 slot 256GB IP66, IK10 PoE

2MP resolution 2.8 - 12mm (4.3x) motorised varifocal Maximum 60fps (H.265/H.264) WiseIR: IR viewable length 40 m (131.23ft) Day & Night (ICR), extremeWDR (150 dB) DIS with built-in Gyro sensor Hard-coated dome bubble Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion) Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear IP66, IP67, NEMA4X, IK10

6MP resolution 4.4 - 9.3mm (2.1x) motorised varifocal Maximum 30fps (H.265/H.264) WiseIR: IR viewable length 40 m (131.23ft) Day & Night (ICR), extremeWDR (150 dB) Hard-coated dome bubble WiseNRⅡ(Based on AI engine), WiseStreamⅢ (Based on AI engine) Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion) Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear IP66, IP67, NEMA4X, IK10
