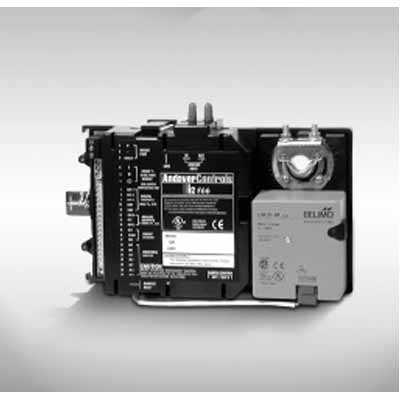

TAC i2867 Access control controller

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: TAC
Model code: i2867
Series: Infinet II Series
Controller Type: Networkable
Networkable: Yes

Additional info:

The Infinet II (i2) 867 is a compact terminal controller that provides lowcost DDC control of package units, heat pumps, unit ventilators, and other terminal unit applications. Its versatile mix of I/O - Universal inputs, Triac outputs, plus an interface to Andover Controls' Smart Sensor room temperature sensor with programmable keypad - allows for flexible control solutions. The i2867 also features two analog outputs to control reheat valves, dampers, lighting ballasts, etc.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	TAC
Manufacturer	TAC Satchwell
Category	Access Control>Access control controllers
Model code	i2867
Controller Type	Networkable
Networkable	Yes
Communication Type	RS-485
Onboard No/Type of Inputs / Outputs	4 inputs, 5 outputs
Universal / Wiegand Reader Interface	Yes
Electrical Specifications	Voltage: 24 V AC Power Consumption: 4 VA
Physical Specifications	Dimensions mm: 157 x 89 x 64 Weight g: 290
Environmental Specifications	Operating Temp ^oC: 0 ~ 49 Operating Humidity %: 10 ~ 95
Additional info	The Infinet II (i2) 867 is a compact terminal controller that provides lowcost DDC control of package units, heat pumps, unit ventilators, and other terminal unit applications. Its versatile mix of I/O - Universal inputs, Triac outputs, plus an interface to Andover Controls' Smart Sensor room temperature sensor with programmable keypad - allows for flexible control solutions. The i2867 also features two analog outputs to control reheat valves, dampers, lighting ballasts, etc.
