Rainbow <I>hi-impact</I> dome release
Product Profile

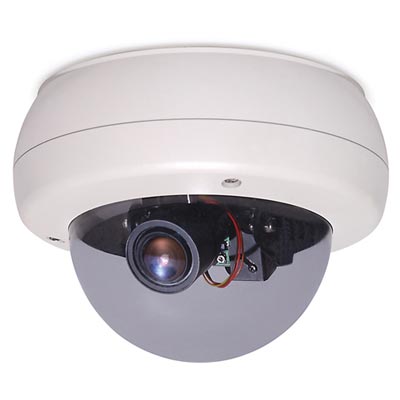

Rainbow CCTV have released a new Hi Impact dome camera (model HDCVF3D) which combines hi resolution surveillance performance with ruggedised weatherproof (IP66) and vandal resistant housing. Coupled with Rainbow's 3-D camera bracket - enabling swift pan, tilt and rotation - this dome camera offers unrivalled flexibility.
Key features and functionality include:
Read more
Key features and functionality include:
- 1/3" colour DSP SONY Super HAD CCDTM
- hammer tough housing with half tint polycarbonate dome
- weatherproof (IP66) with security screws
- Day / night function for clearer low-light picture
- 3.8~9.5mm F1.3 DC auto iris aspheric vari focal
Technical Specification
Make | Rainbow |
---|---|
Manufacturer | Rainbow CCTV |
Category | CCTV>Dome cameras |
Model code | HDCVF3D |
Chip Inch Size | 1/3 inch |
Colour Type | Colour |
Resolution TVL | 460 |
Dome Type | Variable Focus |
Sensitivity lux | 0.7 @ F1.3 lux |
Pan Speed o/ sec | 65 o/ sec pan speed |
Tilt Speed o/ sec | 28 o/ sec tilt speed |
Mount Type | Ceiling mount |
Electrical Specifications |
Voltage: 12 VDC Power Consumption: 250 |
Focal length | 3.8 ~ 9.5 |
Back Light Compensation | Yes |
White Balance | Yes |
S/ N (Signal/ Noise) Ratio dB | >48 |
Synchronisation | Internal |
Signal Mode | PAL/NTSC |
Video Output | 1 Vp-p |
Physical Specifications |
Dimensions mm: 144 (Dia) x 99 Weight g: 650 |
Environmental Specifications |
Operating Temp oC: -10 ~ +50 Protection: IP66 |
Additional info | 1/3 inch colour DSP Sony Super HAD CCD. Hammer tough housing with half-tint polycarbonate dome. Weatherproof with security screws. Basic Day/Night function for a cleaner low-light picture. |
Download PDF version Download PDF version |
