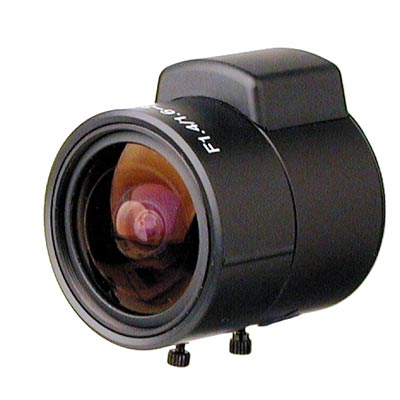

Rainbow L163VDC4P-1/3 CCTV camera lens
Technical Specification
- Make: Rainbow
- Model code: L163VDC4P-1/3
- Lens Format inches: 1/3 inch
- Focal Length mm: 1.6 ~ 3.4 mm focal length
- Iris Type: Auto Iris
Max relative Aperture: 1:1.4 Operation temperature: -10 ~ +50 degrees centigrade. Angular Field of View (deg): 180.0 x 114.1 at 1.6mm and 84.3 x 55.8 at 3.4mm.
Read moreMake | Rainbow |
---|---|
Manufacturer | Rainbow CCTV |
Category | CCTV>CCTV camera lenses |
Model code | L163VDC4P-1/3 |
Lens Format inches | 1/3 inch |
Focal Length mm | 1.6 ~ 3.4 mm focal length |
Iris Type | Auto Iris |
Lens Mount | CS mount |
F-Stop | 1.4 F-stop |
Direct Drive | Yes |
Physical Specifications |
Dimensions mm: 39.5 x 45.5 x 52.1 Weight g: 105 |
Varifocal | Yes |
Additional info | Max relative Aperture: 1:1.4 Operation temperature: -10 ~ +50 degrees centigrade. Angular Field of View (deg): 180.0 x 114.1 at 1.6mm and 84.3 x 55.8 at 3.4mm. |
Download PDF version Download PDF version |
