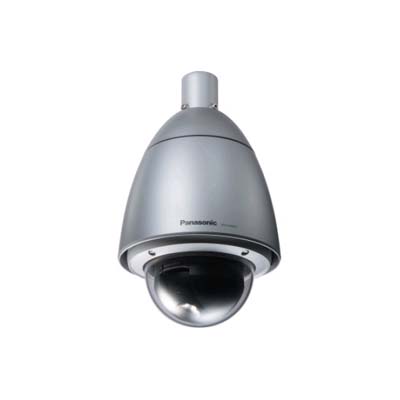

Panasonic WV-CW970 dome camera

Please note: this is a discontinued product.

Go to Replacement product

Features:

Additional info:

Advanced Auto Track with template matching algorithm.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Panasonic
Manufacturer	Panasonic System Communications Company Europe
Category	CCTV>Dome cameras
Model code	WV-CW970
Chip Inch Size	1/4 inch
Colour Type	Colour / Monochrome
Resolution TVL	570
Sensitivity lux	0.04 lux
Dome Type	PTZ
Pan Speed ^o/ sec	400 ^o/ sec pan speed
Indoor/Outdoor	Outdoor
Tilt Speed ^o/ sec	400 ^o/ sec tilt speed
Electrical Specifications	Voltage: 220 ~ 240 V AC Power Consumption: 90 W
Rotation Angles^o	360 pan, -5 ~ +185 tilt
Presets	256
Back Light Compensation	Yes
Auto Gain Control	Yes
Electronic Shutter range	1/50 ~ 1/10,000
S/ N (Signal/ Noise) Ratio dB	50
Synchronisation	Internal, Line-lock
Signal Mode	PAL
Video Output	1 Vpp, 75 Ohms
Zoom Ratio	x30
Network Properties	Interface: RS-485
Physical Specifications	Dimensions mm: 239 x 396 Weight g: 4.7 kg
Environmental Specifications	Operating Temp ^oC: -40 ~ +50 Operating Humidity %: 0 ~ 90 Protection: IP66
Additional info	Advanced Auto Track with template matching algorithm.
