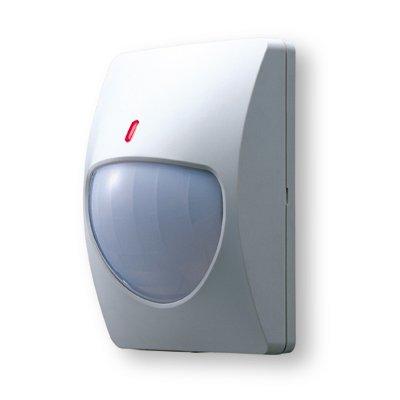

OPTEX CX-702 long range PIR detector

Technical Specification

Features:

Make: OPTEX
Model code: CX-702
Series: CX Series
PIR Detectors: Yes
Coverage/ Range m: 21

Additional info:

for commercial applications, selectable sensitivity and environmental stability. Mounting height 1.5 ~ 3.6m. Weight 200g. Detection range: 21m wide angle/45m long range.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	OPTEX
Manufacturer	OPTEX
Category	Intruder Alarms>Intruder detectors
Model code	CX-702
Series	CX Series
PIR Detectors	Yes
Coverage/ Range m	21
Pet Tolerance	Yes
Power Consumption	20 mA
Vertical Coverage	4.5° Vertical by 3 steps
Selectable Pulse Count	Yes
Electrical Specifications	Power Supply: 6 ~ 18
Physical Specifications	Dimensions mm: 140 x 100 x 68
Environmental Specifications	Operating Temp ^oC: -20 ~ +50
Additional info	for commercial applications, selectable sensitivity and environmental stability. Mounting height 1.5 ~ 3.6m. Weight 200g. Detection range: 21m wide angle/45m long range.
