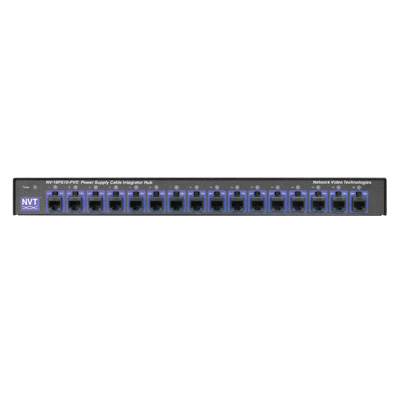

NVT NV-16PS13-PVD 16-channel power supply passive receiver hub
Product Profile
The NVT 16-channel NV-16PS13-PVD allows CCTV cabling using standard 568B structured wiring. This Power Supply Passive Video Receiver Hub typically resides near the DVR or encoders, and supports 24/28VAC power, video, and P/T/Z telemetry at extended distances. Per-channel diagnostic LEDs intuitively display load/no-load, miswires, or fault conditions. Load currents of up to 1 amp per channel are supported via individually floating auto-reset fault-protected outputs.
Technical Specification
| Make | NVT Phybridge |
|---|---|
| Manufacturer | NVT Phybridge |
| Category | CCTV>Power supplies & batteries |
| Model code | NV-16PS13-PVD |
| Input Voltage | 24 V AC |
| Output Voltage | 28 V AC |
| Power Supplies & Batteries | Yes |
| Environmental Specifications |
Operating Temperature C: -20 ~ +50 Operating Humidity %: 0 ~ 95 |
| Physical Specifications | Weight g: 6,350 |
| Additional info |
Supplies camera power and video transmission at distance. Selectable 24 VAC-OFF-28 VAC outputs. Built-in transient protection and diagnostics. |
| Download PDF version Download PDF version | |
