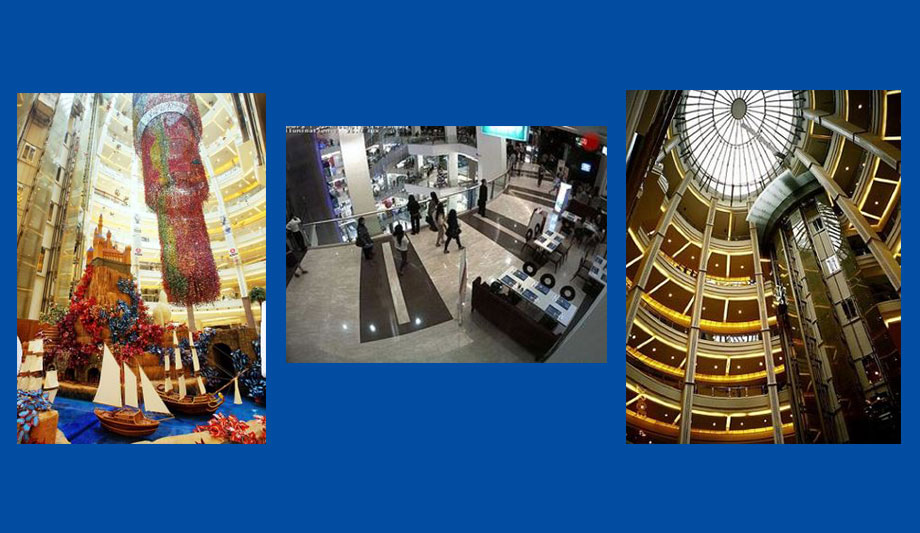

The Pacific Place Jakarta shopping mall has dominated the middle of the Sudirman Central Business District in Jakarta, Indonesia, since 2007. The Dua Mutiara Group was initially operating more than 300 analogue CCTV cameras from different manufacturers for security within the shopping mall. However, maintaining and servicing these devices was costly and a drain on resources. Since problems also arose with the electric cabling, the company in charge of the mall decided to replace the existing setup with a modern security system consisting of 197 MOBOTIX cameras.
The international shopping mall is divided into three sections: the Pacific Place mall, the One Pacific Place office centre and the three towers of the Ritz Carlton Pacific Place hotel. Spread over six floors, visitors can enjoy the Blitzmegaplex – a huge cinema – as well as a number of international restaurants and luxury outlets such as electronics stores, jewellers and boutiques. Children have access to top entertainment in Kizania in the form of an enormous adventure playground.
Security cameras in a shopping complex such as this are no longer simply an optional extra; they are an absolute must. A current study from the EHI shows that there were more than EUR 3.8 billion in inventory differences in 2012 in Germany alone. Around half of these losses (EUR 1.9 billion) are the result of theft by dishonest customers. No wonder then that an increasing number of retailers are investing in measures for prevention and security by purchasing new video systems. These offer retailers analytical tools that provide significant added value beyond what traditional systems are able to provide.
Image quality increased, maintenance requirements reduced
Following extensive market analysis, the Dua Mutiara Group decided to install MOBOTIX cameras in the Pacific Place Jakarta in the future, since the systems are not only easy to use, but also deliver detailed, high-resolution images. What’s more, these cameras do not contain any moving parts, meaning much lower maintenance costs.
The cameras were replaced in six separate phases. Firstly, five MOBOTIX DualDome cameras were installed in the lobby. It is possible to monitor two different areas at the same time using just one camera thanks to the two lenses and HiRes image sensors – all without vulnerable mechanical components. It offers customised object selection between telescopic and wide angles as well as day/night settings and a 180° panorama function. Just like all other MOBOTIX cameras, the DualDome is robust, low-maintenance and weather-proof, and it is even suitable for use in temperatures from minus 30 to plus 60 degrees Celsius. Since the camera comes with the option of continuous digital zooming, panning and tilting, as well as a speaker and PIR motion detector, the lobby is always well monitored and it is even possible to record the license plates of passing vehicles.
In the second phase of the project, 90 cameras were installed in the Pacific Place mall for security. The D12DSecure, D24M-Secure and M12D-Secure models were placed in the parking lots as well as the areas in front of them. Cameras were also fitted in the lobby, the shopping area, as well as in the food court and the reception hall of the Ritz Carlton hotel. The D24 can be equipped with exchangeable lenses. It is suitable for both indoor and outdoor areas and features a built-in DVR with HiRes video recording. The D12 also leaves nothing to be desired in this respect. It has two separate HiRes image sensors, meaning it is able to offer brilliant colour during the day and high-speed black and white recordings at night. “Our security staff had significantly less work to do even after the first 95 cameras had been installed,” says Ranjan Kumar Nandy, who works in the Engineering Department at the Dua Mutiara Group and supervised the installation work. “That’s because the security systems are incredibly easy to operate, provide excellent quality and do not overload the network. This saves a great deal of time and money.”
Added-value through in-camera video analysis
The MOBOTIX decentralised concept means that every camera is a high performance computer and, if required, can also be used as an archive for several days of recordings |
New cameras were installed in the most important areas, which require special monitoring, in phase 3. The group placed thirteen D24 and ten M12 cameras in these areas in order to prevent vandalism and theft. Four M12D-Sec and five Q24M-Sec cameras were then installed in individual areas in phase 4 of the project. The hemispheric Q24 cameras are particularly well suited for capturing an entire room with no blind spots. They also feature an in-camera video analysis function. The shopping mall has a very efficient tool at its disposal in the shape of MxAnalytics, which stores important information for the optimisation of processes and for marketing purposes. This makes it possible to determine which shelves attract the most customers. The movement of people and objects is also reliably captured and evaluated in the live image. This makes is possible to use a heat map to display a pre-defined area, on which the most frequented zones will be highlighted in colour. It is also possible to generate observation data thanks to counting lines. This makes it possible to analyse how many people pass through the lobby of the Pacific Place Jakarta over the course of an hour or a whole day.
In phase 5, the entire outdoor area, which is quite large in size, was equipped with Raytech LED lights in order to ensure good visibility even at night. In the final phase, the entire system was expanded to include 70 additional Q24M-Sec, M24M-Sec, D14D-Sec and D24MSec cameras.
The camera is a high performance computer
The MOBOTIX decentralised concept means that every camera is a high performance computer and, if required, can also be used as an archive for several days of recordings thank to the built-in long-term digital flash memory. The PC or the video control centre is required only to view the cameras, not to evaluate and record video footage. This means that it is not necessary to install expensive video management software, since the essential functions that require a large amount of processing power are already integrated into the cameras. The shopping mall also requires fewer cameras because the wide-angle images provide greater detail through the use of megapixel technology. The lower network bandwidth provides another advantage. Since all of the information is processed in the camera itself, it is no longer necessary to continuously transfer high resolution images for evaluation. This means that in a decentralised system, it is possible to simultaneously store high-resolution HDTV video with sound on a PC or server with ten times as many cameras than is generally possible. Pacific Place Jakarta is highly satisfied with the new solution. “The cameras use very little electricity – under five watts – and this protects the environment in terms of green IT and also saves us money,” explains Ranjan Kumar Nandy. “We will certainly install more MOBOTIX cameras in the future in order to increase the security of the guests in our shopping mall even further.“
