barox, the manufacturer of professional standard switches, media converters and IP extenders specifically designed for video applications, has released a new Layer 2/3 DIN Rail Industrial Managed Switch, designed to meet the demands of PoE heavy video applications.

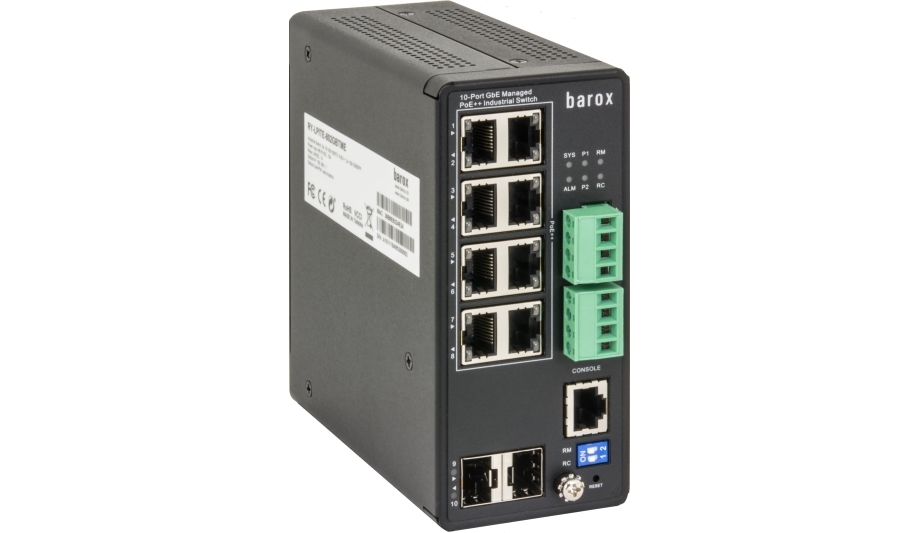

A rugged, high-quality switch for use in high performance 10/100/1000Mbps Ethernet ring networks in compliance with IEEE802.x, the barox RY LPITE-802GBTME features eight copper ports with PoE, PoE + and PoE ++.
SFP 100/1000Base SX/LX/ZX bays
The switch allows two or more ports to build one or more fault tolerant rings, where, for example, a two-port bundle can be used to provide 120W (Max), configured as Port 1 60W/Port 2 60W, or Port 1 90W/Port 2 30W, etc. In the event of a network interruption, the ring closes automatically (in less than 20ms), to maintain the availability of the system.
For the backbone, two SFP 100/1000Base SX/LX/ZX bays can be used for multi-mode or single-mode fibreFor the backbone, two SFP 100/1000Base SX/LX/ZX bays can be used for multi-mode or single-mode fibre. The switch can also be used as a stand-alone device, for point-to-point connections or connection modules. The extensive possibilities of the supplied barox management software allows the switch to be deployed in systems with high functionality demands, such as PTZ camera domes, LED illuminators, wipers and heaters – negating the need for a network injector.
Supports PoE heavy applications
“The new 480-Watt PoE DIN Rail Industrial Managed Switch provides installers and end-users with the power to support the latest PoE heavy applications,” says Rudolf Rohr, barox Co-founder & Managing partner. “As well as active PoE performance management and reporting, and automatic camera re-boot, the switch features extra high backplane performance for smooth video transmission at full port occupancy, and jumbo frames up to 9600Bytes are supported at 100Mbps.
“Other network friendly functionality includes DMS integrated network monitoring and control, graphical network overview, device discovery, error handling, network diagnostics and sophisticated security protection mechanisms to guard against unauthorised access.”
