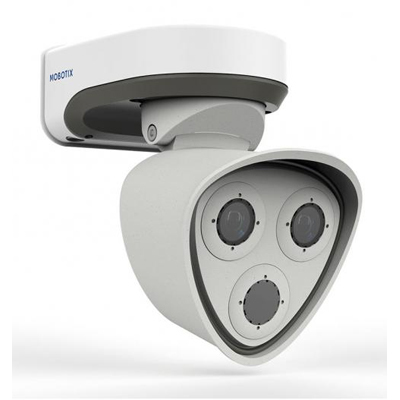

MOBOTIX M73 High Performance IoT Camera

Product Profile

The M73 is extremely compact yet delivers a stand-out performance, thanks in particular to the powerful Quad-Core-ARM Cortex-A53 processor. With new technology and a sophisticated mounting concept, the camera offers space for three sensor or function modules for the very first time. This makes the M73 more versatile and flexible than any other MOBOTIX camera before it. Of course, the M73 fulfills current ONVIF profiles and offers flexible codec support with H.264 and H.265 (from Q2/2020), MxPEG+ and MJPEG.

Thanks to 4K UHD resolution, it delivers the brilliant images you rightly expect from MOBOTIX cameras. And it also stands out in terms of robustness thanks to its extremely stable performance: The camera has an integrated shock detector and a temperature resistance of -40° to +65°C, without any maintenance-intensive additional heating or ventilation — making it exceptionally strong.

Ingenious Engineering

Simple assembly. Robust materials. Sophisticated concept. The motherboard of the M73 is accommodated in a high-tech housing made from powder-coated aluminum, available in two different colors. The heat generated is dissipated to the outside via the metal, so that no active cooling is required.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Technical Specification

Make	MOBOTIX
Manufacturer	MOBOTIX AG
Category	CCTV>IP cameras
Model code	M73
Colour Type	Colour / Monochrome
Resolution	4K resolution
Digital (DSP)	Yes
Sensitivity Lux	0.001 ~ 0.1
Auto Iris	Yes
Direct Drive	Yes
Electrical Specifications	Voltage: PoE Power Consumption: 25 W
Mount Type	Wall, Pole
Wide Dynamic Range	Yes
Picture Elements HxV	3840 x 2160
Compression Type	H.264, H.265 (from Q2/2020) with Triple-Streaming, MxPEG+, MJPEG
Network Properties	Network Protocols: DHCP (client and server), DNS, ICMP, IGMP v3, IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, NFS, NTP (client and server), RTP, RTCP, RTSP, SIP (client and server), SMB/CIFS, SNMP, SMTP, SSL/TLS v1.3, UDP, VLAN, VPN, Zeroconf/mDNS
Physical Specifications	Weight g: 2,000 Dimensions mm: 228 x 153 x 232
Environmental Specifications	Operating Temperature ^oC: -40 ~ +65 C (-40 ~ +149 F) Protection: IP66, IK07
HD	Yes
Additional info	Platform with the most flexible codec support: H.264, H.265, MxPEG+ and MJPEG ONVIF Profile S and T compliance for highest level of interoperability Increased Modularity with flexible usage of a combination of up to 3 sensor or functional modules 4K UHD resolution Triple shutter WDR with 120 dB Range Easy Plug quick fastening system Robust in all situations: -40 to 65 °C, IP66 and IK07 protected
