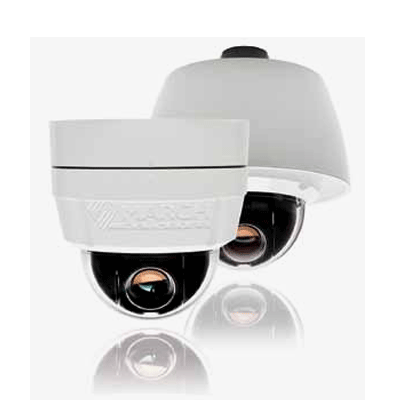

March Networks VideoSphere MDome HD PTZ IP dome camera with backlight compensation
Technical Specification
| Make | March Networks |
|---|---|
| Manufacturer | March Networks Corporation |
| Category | CCTV>Dome cameras |
| Model code | VideoSphere MDome HD PTZ |
| Chip Inch Size | 1/3 inch |
| Colour Type | Colour / Monochrome |
| Resolution TVL | 1280 x 720 |
| HD | Yes |
| Sensitivity lux | 0.2 @ F1.8 lux |
| Dome Type | Continuous Rotation |
| Indoor/Outdoor | Indoor/Outdoor |
| Mount Type | Surface mount |
| Electrical Specifications | Voltage: 12 V DC / 24 V AC |
| Focal length | 5.1 ~ 51 |
| Rotation Angleso | 360 pan, 180 tilt |
| Presets | 128 |
| Compression | H.264, M-JPEG, MPEG-4 |
| Electronic Shutter range | 1/10,000 ~ 1/2 |
| Built-in IR LED | Yes |
| Zoom Ratio | x120 |
| Network Properties |
Interface: RJ-45 100BASE-TX PoE Network Protocols: ONVIF, RTP, RTSP, RTCP, HTTP, HTTPS, IPv4, TCP* Control: PTZ Image Frame Rate: 30 fps |
| Environmental Specifications |
Operating Temp oC: -40 ~ +50 Operating Humidity %: 8 ~ 90 Protection: IP66 |
| Additional info | *UDP, DHCP, ARP, LDAP. |
