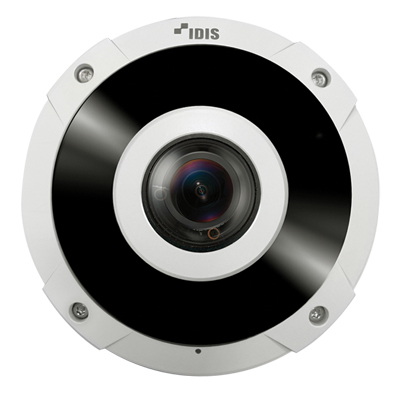

IDIS's 12MP Super Fisheye camera

Product Profile

The IDIS 12MP Super Fisheye camera delivers 360° HD surveillance, with clear identification from center to edge and wall to wall. Built-in IR LEDs ensure nearly 50-ft night visibility, with support for true WDR up to 120dB. It offers camera-side and client-side dewarping (including on smartphones), giving users the widest choice of recording platforms and VMS options.

And the groundbreaking ease and accuracy of IDIS's Smart UX Controls v2.0 allows for effortless dewarping, including agile PTZ in a dewarped state. The Super Fisheye also offers the benefit of IDIS Intelligent Codec with MAT, delivering up to 90% storage and bandwidth savings.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Technical Specification

Make	IDIS
Manufacturer	IDIS
Category	CCTV>IP cameras
Model code	DC-Y3C14WRX
Chip Inch Size	1/2 inch
Colour Type	Colour / Monochrome
Resolution	12MP resolution
Digital (DSP)	Yes
Specialist Type	Infrared
Sensitivity Lux	0 ~ 0.2
Auto Iris	Yes
Direct Drive	Yes
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 12.6W
Focal Length mm	1.98
Wide Dynamic Range	Yes
Network Properties	Image Frame Rate: 30 ips Interface: RJ45 (10/100/1000BASE-T) Network Protocols: DirectIP™ Mode : DirectIP Protocol ; Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP
Back Light Compensation	Yes
White Balance	Yes
Electronic Shutter Range	1/30 ~ 1/10000
S/ N (Signal/ Noise) Ratio dB	52.7
Compression Type	H.265, H.264 (MP), M-JPEG
Physical Specifications	Weight g: 920 Dimensions mm: 155 x 58
Environmental Specifications	Protection: IP67, IK10 Operating Temperature ^oC: -10 ~ +60 C (14 ~ 140 F) Operating Humidity %: 0 ~ 90
Additional info	Easy installation with DirectIP NVR 12MP Sensor / 9.4MP (3200 x 2944) resolution Fixed-focal lens (f=1.98mm) micro SD/SDHC/SDXC, Smart Failover Two-way audio Alarm in / out IR LED (Distance : 15m / 49.2ft) Various viewing composition, 6 dewarping view modes Supports ONVIF
