IDIS micro dome ideal for high end settings
Product Profile
The new DC-C4212RX 2MP micro dome camera is the latest addition to the DirectIP® line up from IDIS, which is South Korea’s largest in-country manufacturer of surveillance technology.
The compact design of the DC-C4212RX makes it the best choice for understated, less noticeable installation. The neat aesthetics are ideal for applications where there is a need for unobtrusive surveillance but where comprehensive, high-performance video capture is paramount.

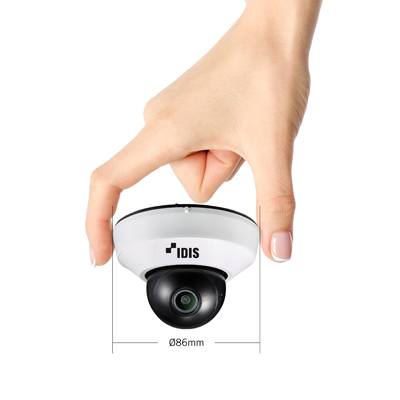

Measuring only 86 mm x 58 mm and weighing just 105 grams, the DC-C4212RX delivers advanced benefits within its lower profile and is the right choice for high-end locations such as jewellery shops and boutiques, as well as up-market restaurants and luxury hotels.
The DC-C4212RX offers all the key benefits that installers expect from IDIS DirectIP dome cameras, including the company’s signature plug-and-play installation and configuration. The elimination of a pigtail cable allows faster and easier deployment.
The 3-axis mechanical lens enables rotation and easy angle adjustment, making it an important design feature for precise image capture, particularly when the camera needs to be discretely wall-mounted. The camera can also operate in a wide range of lighting conditions, delivering high performance live monitoring and playback.

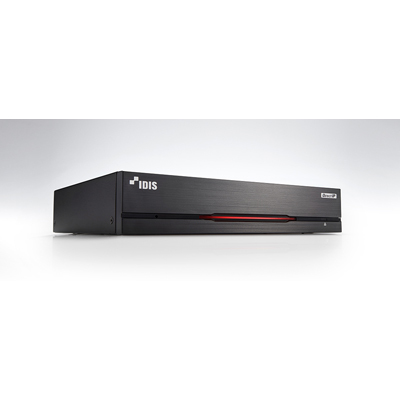

Other key features include true wide dynamic range (WDR); IR LED illumination up to 15m with day and night ICR; dual codec H.264/H.265 performance; and easy, plug-and-play integration with IDIS VA in the Box. This cost-effective video analytics appliance delivers value-add business intelligence gained from heat mapping, people counting, queue management and comprehensive reporting.
“Our new micro dome is a great camera for installers to work with and it delivers outstanding surveillance capability for customers,” says James Min, Managing Director of IDIS Europe. “It further strengthens our end-to-end offering for retail applications, including high street fashion, boutiques, dining, pubs and coffee shops - markets in which we have gained significant market share globally.”
Technical Specification
Make | IDIS |
---|---|
Manufacturer | IDIS |
Category | CCTV>IP Dome cameras |
Model code | DC-C4212RX |
Chip Inch Size | 1/3 inch |
Colour Type | Colour / Monochrome |
Resolution TVL | 1080p |
Sensitivity lux | 0 ~ 0.1 |
Digital (DSP) | Yes |
Electrical Specifications |
Voltage: PoE Power Consumption: 3.6W |
Focal length | 2.8mm |
Compression | H.265, H.264 (MP) M-JPEG |
Back Light Compensation | Yes |
White Balance | Yes |
Electronic Shutter range | Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15) |
Built-in IR LED | Yes |
Network Properties |
Interface: RJ45 (10/100BASE-T) Network Protocols: DirectIP Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP, RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP |
Physical Specifications |
Dimensions mm: Ø86 x 58 Weight g: 105 |
Environmental Specifications |
Operating Temp oC: -10 ~ +50 C (14 ~ 122 F) Operating Humidity %: 0 ~ 90 |
Additional info |
|
Download PDF version Download PDF version |
