Hikvision Multidirectional PanoVu Cameras – Simplified, Smart Protection in Every Direction

Product Profile

Deploying video-security systems for expansive indoor and outdoor areas such as lobbies, plazas, and business parks, has been a complex task. It usually requires multiple cameras for complete monitoring of the entire area. A panoramic IP camera utilizes advanced optics and technology to offer a very wide view in various directions, while traditional cameras feature a limited field of view. The panoramic view can be achieved using a single sensor or an array of sensors (and lenses).

Hikvision panoramic cameras offer an ideal solution for diverse environments, delivering expansive coverage with just one camera. With a diverse selection of camera models available, users can choose the perfect fit for their needs. Some models offer 180-degree or 360-degree stitched panoramas, while a few other models provide multidirectional views from separate video channels. Additionally, there are certain models that have an integrated PTZ lens, allowing users to zoom in on details. Check out our lineup of panoramic security cameras with unique lens and sensor options, including 360-degree and 180-degree panoramic cameras, and start exploring comprehensive security with us today!

Crystal-clear imaging, stunning clarity

  • 4K resolution gives users a clear and detailed, panoramic visual experience.
  • Some PanoVu models feature 8K definition technology, offering an unprecedented capacity to get more detail from a scene.

Minimize expenses, enjoy long-term convenience

  • Enjoy the benefits of multiple cameras in one unit to save your budget.
  • One cable solution cuts down installation expenses while reducing deployment time.

More intelligence, more applications

Hikvision Panoramic Cameras feature a wide range of deep-learning functions, such as:

  • Regional heat mapping
  • Regional people counting
  • Queue management
  • Person and vehicle detection
  • Hikvision Embedded Open Platform (HEOP) supports for third-party applications

Application scenarios

Hikvision panoramic cameras offer seamless monitoring capacities for retail, office, residential, transportation hubs, and public settings. They effectively monitor aisles, entrances, and other common areas, enhancing security and safety. With wide-angle views, these panoramic security cameras enable seamless monitoring of large properties and public spaces, minimizing blind spots and bolstering security measures.

Read more

Technical Specification

Make Hikvision
Manufacturer Hikvision
Category CCTV>IP cameras
Model code DS-2CD6D55G2-IZHS(/NFC)
Series Hikvision Panoramic Series
Resolution 2560 × 1920 resolution
Sensitivity Lux Colour: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Focal Length mm Varifocal : 2.8 ~ 8 mm / Fixed : 2 mm
Mount Type Wall, Pendant, Pole, Corner
Wide Dynamic Range Yes
Network Properties Image Frame Rate: 25/30 fps
Interface: RJ45 10 M/100 M/1000 M self-adaptive Ethernet
Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, WebSocket, WebSockets, SSL/TLS
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter Range 1 s to 1/100,000 s
Compression Type H.265+/H.265/H.264+/H.264/MJPEG
Physical Specifications Weight g: 4700
Dimensions mm: Ø290 x 148
Environmental Specifications Protection: IP67, IK10
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F)
Operating Humidity %: < 95
Additional info

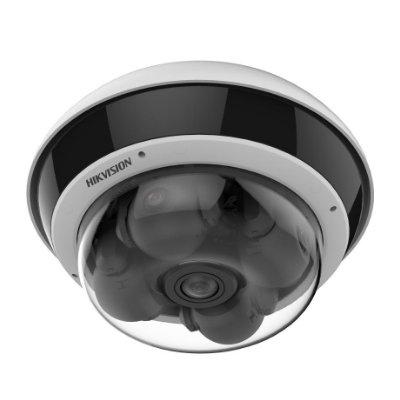

  • 4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted
  • Each lens up to 5 MP, capturing clear images, and more details can be displayed on video wall
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Human and vehicle target classification based on deep learning for up to 4 channels
  • Unique PTRZ capability for efficient installation
  • Audio and alarm interface available
