Hikvision DS-2CD1A43G0-IZU IP camera Specifications

Hikvision unveils new range of pan & tilt cameras to help SMB users do more with less

Product Profile

Hikvision introduces its new range of security cameras – the PT-Series – designed for SMB users with easy installation and flexible camera viewing angles while applying other well-known Hikvision technologies for excellent imaging.

Reliable PT Capabilities

With these new PT Cameras, Hikvision now offers SMB customers high-quality installations requiring fewer cameras while providing more flexibility and durability. The PT Cameras' ability to pan and tilt makes this possible – rotating freely at the control of users, covering areas where previously several fixed cameras would be deployed across multiple points. The PT-Series meets users' needs to capture full scenes by adjusting the angle, and reduce the hassle of switching among fixed fields of view. Additionally, with motorized panning and tilting functions, the PT-Series Cameras can help users check any specific point of concern at will. What's more, seamless connection with Hikvision's Hik-Connect app enables easy remote control and viewing with a smart phone wherever users are located.

With Hikvision's new cameras, SMB users can now enjoy many of the advanced features enjoyed by users of the well-known PTZ cameras in enterprises and public organizations, along with much of the flexibility and convenience.

Great value to installers

Unlike the installation of conventional fixed cameras, which require the camera angle to be carefully adjusted, and equipment like ladders are needed to change the angle of view whenever necessary,

Hikvision's PT-Series Cameras simplify the installation process and improve work efficiency for installers. The PT cameras features an all-in-one bracket that allows installers to install the camera just by securing it to the desired location. Then the camera angle can be adjusted remotely at any time and from anywhere.

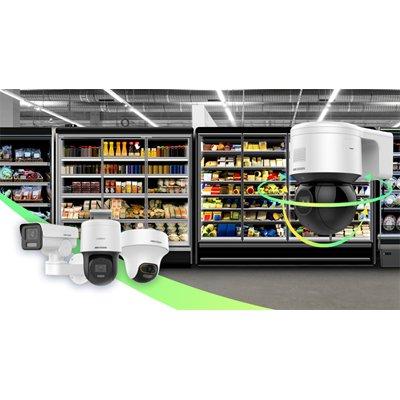

Hikvision's PT product family

Hikvision's PT product family consists of IP and analogue cameras of various form factors with discrete and compact design. They are ideal for retail stores, moderate outdoor areas, small factories, single-family homes, and more. Specifically, form factors include:

PT Bullets

Bullet cameras with pan-tilt functions cover the whole scene. They are also available with Hikvision ColorVu technology that can provide colorful imaging 24/7 with great user experience.

PT Domes

PT dome cameras with motion control provide wide-area coverage and flexible angle adjustment. Additional technologies include optical zoom, AcuSense, ColorVu, and two-way audio, all supported in various products to meet a multitude of user needs.

Turbo HD PT Turrets

Turbo HD PT turret cameras with Hikvision ColorVu technology are the first analogue PT cameras. With built-in microphone and audio over coaxial cable, they are suitable for indoor use.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Hikvision
Manufacturer	Hikvision
Category	CCTV>IP cameras
Model code	DS-2CD1A43G0-IZU
Series	Hikvision PT Series Cameras
Chip Inch Size	1/3 inch
Colour Type	Colour / Monochrome
Resolution	4MP resolution
Sensitivity Lux	0.007
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 11 W
Focal Length mm	2.8 ~ 12
Wide Dynamic Range	Yes
Network Properties	Image Frame Rate: 25/30 fps Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Network Protocols: TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/3 s to 1/100,000 s
S/ N (Signal/ Noise) Ratio dB	≥ 52
Zoom	Yes
Compression Type	H.265+/H.265/H.264+/H.264/MJPEG
Physical Specifications	Dimensions mm: 197.1 x 105 x 225.4 Weight g: 900
Environmental Specifications	Protection: IP66 Operating Temperature ^oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: <95
System Requirements	Web Browser: Plug-in required live view: IE 10, IE 11 / Local service: Chrome 57.0+, Firefox 52.0+
Additional info	High quality imaging with 4 MP resolution Pan, tilt and zoom ability that enables the camera to capture larger and interested areas Water and dust resistant (IP66) EXIR 2.0, advanced infrared technology with long IR distance Efficient H.265+ compression technology
Download PDF version Download PDF version

Make

Hikvision

Manufacturer

Hikvision

Category

CCTV>IP cameras

Model code

DS-2CD1A43G0-IZU

Series

Hikvision PT Series Cameras

Chip Inch Size

1/3 inch

Colour Type

Colour / Monochrome

Resolution

4MP resolution

Sensitivity Lux

0.007

Electrical Specifications

Voltage: 12 V DC, PoE
Power Consumption: 11 W

Focal Length mm

2.8 ~ 12

Wide Dynamic Range

Yes

Network Properties

Image Frame Rate: 25/30 fps
Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
Network Protocols: TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP

Back Light Compensation

Yes

Auto Gain Control

Yes

White Balance

Yes

Electronic Shutter Range

1/3 s to 1/100,000 s

S/ N (Signal/ Noise) Ratio dB

≥ 52

Zoom

Yes

Compression Type

H.265+/H.265/H.264+/H.264/MJPEG

Physical Specifications

Dimensions mm: 197.1 x 105 x 225.4
Weight g: 900

Environmental Specifications

Protection: IP66
Operating Temperature ^oC: -30 ~ +60 C (-22 ~ +140 F)
Operating Humidity %: <95

System Requirements

Web Browser: Plug-in required live view: IE 10, IE 11 / Local service: Chrome 57.0+, Firefox 52.0+

Additional info

High quality imaging with 4 MP resolution
Pan, tilt and zoom ability that enables the camera to capture larger and interested areas
Water and dust resistant (IP66)
EXIR 2.0, advanced infrared technology with long IR distance
Efficient H.265+ compression technology

Download PDF version Download PDF version
