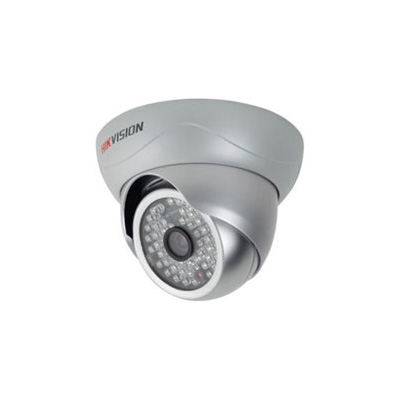

Hikvision DS-2CC592P(N)-IR3 IR dome camera with 540 TVL
Technical Specification
Features:
- Make: Hikvision
- Model code: DS-2CC592P(N)-IR3
- Chip Inch Size: 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 540
| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | CCTV>Dome cameras |
| Model code | DS-2CC592P(N)-IR3 |
| Chip Inch Size | 1/3 inch |
| Colour Type | Colour / Monochrome |
| Resolution TVL | 540 |
| Sensitivity lux | 0.0 lux |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 6 W |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/50 ~ 1/100,000 |
| S/ N (Signal/ Noise) Ratio dB | 48 |
| Synchronisation | Internal |
| Signal Mode | PAL, NTSC |
| Video Output | 1Vp-p Composite Output (75ohms / BNC) |
| Physical Specifications |
Dimensions mm: 112.4 x 80 Weight g: 700 |
| Environmental Specifications |
Operating Temp oC: -10 ~ +60 Protection: IP66 |
| Download PDF version Download PDF version | |
