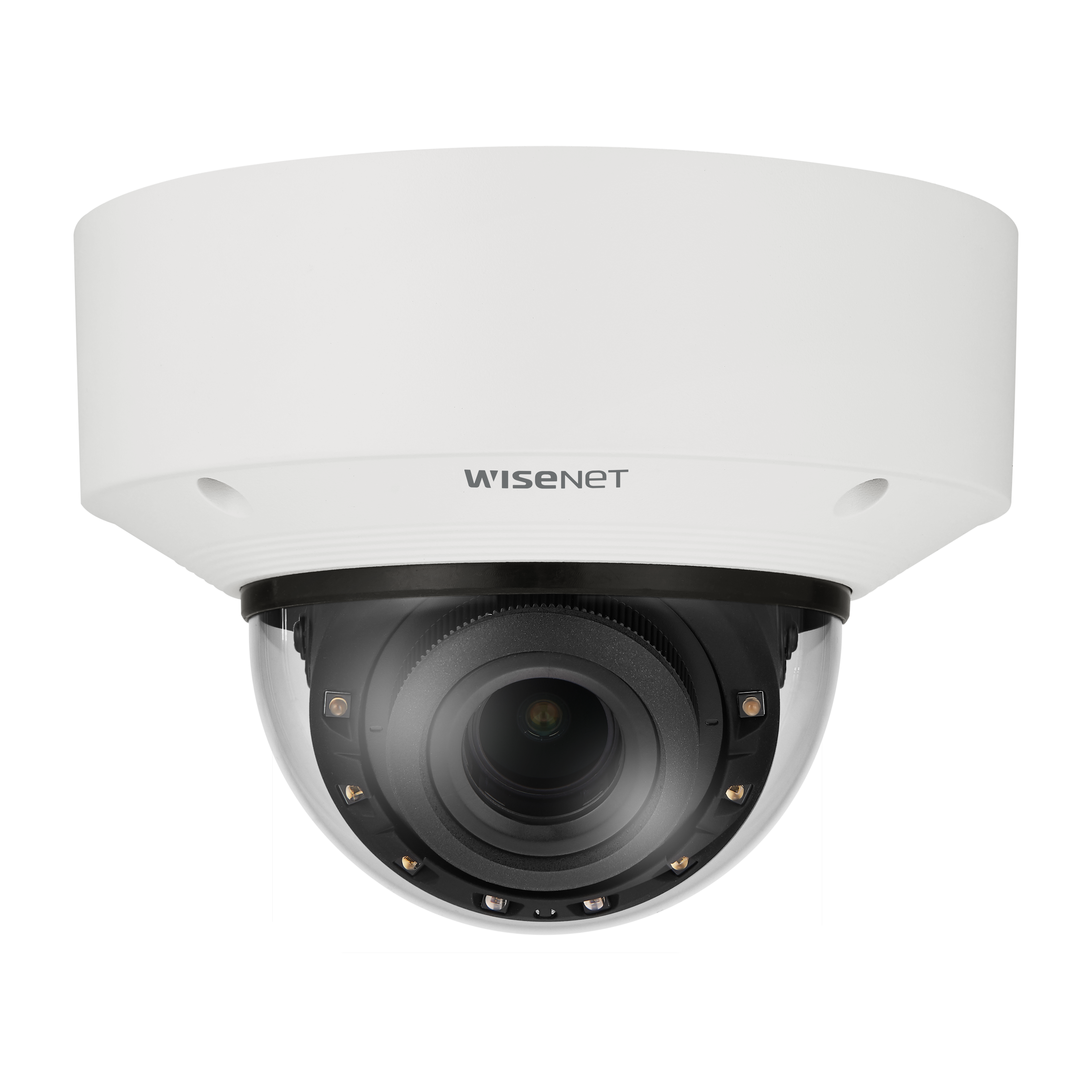

Hanwha Vision XNV-C7083R 4MP AI IR vandal IP dome camera

Technical Specification

Features:

Make: Hanwha Vision
Model code: XNV-C7083R
Series: WISENET X SERIES
Chip Inch Size: 1/2.8 inch
Colour Type: Colour / Monochrome

Additional info:

4MP resolution 2.8 - 10mm (3.6x) motorised varifocal Maximum 60fps (H.265/H.264) WiseIR: IR viewable length 40 m (131.23ft) Day & Night (ICR), extremeWDR (150 dB) Hard-coated dome bubble WiseNR Ⅱ (Based on AI engine), WiseStreamⅢ (Based on AI engine) Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion) Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear IP66, IP67, NEMA4X, IK10

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Hanwha Vision
Manufacturer	Hanwha Vision Europe (formerly Hanwha Techwin Europe)
Category	CCTV>IP Dome cameras
Model code	XNV-C7083R
Series	WISENET X SERIES
Chip Inch Size	1/2.8 inch
Colour Type	Colour / Monochrome
Resolution TVL	4 MP
Megapixel	Yes
Sensitivity lux	Colour: 0.038Lux (F1.4, 1/30sec, 30IRE) BW: 0.0038Lux (F1.4, 1/30sec, 30IRE), 0Lux (IR LED on), 30/25 fps; Colour: 0.076Lux (F1.4, 1/60sec, 30IRE) BW: 0.0076Lux (F1.4, 1/60sec, 30IRE), 0Lux (IR LED on), 60/50 fps
Dome Type	Static
Digital (DSP)	Yes
Electrical Specifications	Voltage: PoE, 12 V DC Power Consumption: 10.8 W (PoE); 10 W (12 V DC)
Focal length	2.8 ~ 10 mm
Compression	H.265/H.264 : Main/Baseline/High, MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	2 ~ 1/12,000sec
Built-in IR LED	Yes
Zoom Ratio	x3.6
Network Properties	Interface: Metal shielded RJ-45(10/100BASE-T) Network Protocols: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT Inclusive DVR/ Web Server: Micro SD/SDHC/SDXC
Physical Specifications	Dimensions mm: 160 x 118 Weight g: 1,450
Environmental Specifications	Operating Temp ^oC: -40 ~ 55 C (-40 ~ 131 F) Operating Humidity %: 0 ~ 100 Protection: IP66/IP67, IK10
Additional info	4MP resolution 2.8 - 10mm (3.6x) motorised varifocal Maximum 60fps (H.265/H.264) WiseIR: IR viewable length 40 m (131.23ft) Day & Night (ICR), extremeWDR (150 dB) Hard-coated dome bubble WiseNR Ⅱ (Based on AI engine), WiseStreamⅢ (Based on AI engine) Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion) Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear IP66, IP67, NEMA4X, IK10
