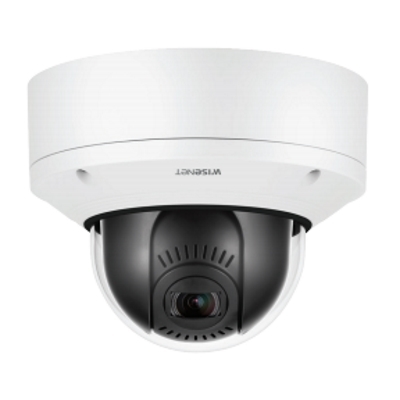

Hanwha Techwin America XND-6081VZ 2MP Network Dome Camera

Technical Specification

Features:

Make: Hanwha Vision
Model code: XND-6081VZ
Series: WISENET X SERIES
Chip Inch Size: 1/2 inch
Colour Type: Colour / Monochrome

Additional info:

2 Megapixel & 5 Megapixel resolution 015Lux@F1.4 (Colour), 0.0015Lux@F1.4 (B/W) Day & Night (ICR), WDR (150dB / 120dB) Modular structure and motorised PTRZ Hallway View, WiseStreamII Support Video & audio analytics, Audio playback DIS and shock detection with built-in gyro sensor IP52/IK10, PoE, 12VDC

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Hanwha Vision
Manufacturer	Hanwha Vision Europe (formerly Hanwha Techwin Europe)
Category	CCTV>IP Dome cameras
Model code	XND-6081VZ
Series	WISENET X SERIES
Chip Inch Size	1/2 inch
Colour Type	Colour / Monochrome
Resolution TVL	2 MP
Megapixel	Yes
Sensitivity lux	0.0015 ~ 0.015
Indoor/Outdoor	Indoor
Digital (DSP)	Yes
Mount Type	Hanging mount
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 10 W, 8.5 W
Focal length	2.8 ~ 12mm
Compression	H.265/H.264 : Main / Baseline / High, MJPEG
Back Light Compensation	Yes
White Balance	Yes
Electronic Shutter range	2~1 / 12,000s
Zoom Ratio	4.3x
Network Properties	Interface: RJ-45, 10/100BASE-T Network Protocols: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP Image Frame Rate: H.265/H.264: 60fps / 50fps, MJPEG: 30fps / 25fps
Physical Specifications	Dimensions mm: 160 x 125 Weight g: 1450
Environmental Specifications	Operating Temp ^oC: -25 ~ +60 C (-13 ~ +140 F) Operating Humidity %: 0 ~ 90 Protection: IP52, IK10
System Requirements	Operating System: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Web Browser: Google Chrome, MS Explorer11, MS Edge, Mozilla Firefox (Windows 64bit only), Apple Safari (Mac OS X only)
Additional info	2 Megapixel & 5 Megapixel resolution 015Lux@F1.4 (Colour), 0.0015Lux@F1.4 (B/W) Day & Night (ICR), WDR (150dB / 120dB) Modular structure and motorised PTRZ Hallway View, WiseStreamII Support Video & audio analytics, Audio playback DIS and shock detection with built-in gyro sensor IP52/IK10, PoE, 12VDC
