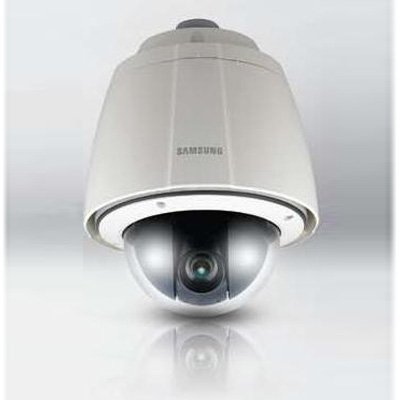

Hanwha Techwin America SCP-3370HP true day / night external high resolution of 600 TVL lines
Technical Specification
- Make: Hanwha Vision
- Previously known as: Samsung
- Model code: SCP-3370HP
- Chip Inch Size: 1/4 inch
- Colour Type: True Day / Night
The SCP-3370 PTZ dome series includes advanced auto tracking and a class leading 37X optical zoom (3.5-129.5mm) with ultra low light level capabilities of 0.7Lux Color and 0.07Lux B/W without Sens-up activated. With SVV DSP engine, the SCP-3370 PTZ domes feature SSNRIII, the 3rd generation of Hanwha Techwin Super Noise Reduction, WDR, and VPS (Virtual Progressive Scan) to deliver clear and vivid images in any condition.
Read moreMake | Hanwha Vision |
---|---|
Manufacturer | Hanwha Vision Europe (formerly Hanwha Techwin Europe) |
Previously known as | Samsung |
Category | CCTV>Dome cameras |
Model code | SCP-3370HP |
Chip Inch Size | 1/4 inch |
Colour Type | True Day / Night |
Resolution TVL | 600 |
Sensitivity lux | 0.001 lux |
Pan Speed o/ sec | 600 o/ sec pan speed |
Indoor/Outdoor | Outdoor |
Tilt Speed o/ sec | 600 o/ sec tilt speed |
Mount Type | Pendant mount |
Electrical Specifications |
Voltage: 24 V AC Power Consumption: 15 W |
Focal length | 3.5 ~ 129 |
Presets | 255 |
Back Light Compensation | Yes |
Auto Gain Control | Yes |
White Balance | Yes |
Electronic Shutter range | 1/50 ~ 1/120,000 |
S/ N (Signal/ Noise) Ratio dB | 52 |
Video Output | 1.0 Vp-p / 75? composite |
Zoom Ratio | x 37 |
Physical Specifications |
Dimensions mm: 155 x 243.4 Weight g: 2000 |
Environmental Specifications |
Operating Temp oC: -50 ~ +50 Operating Humidity %: 20 ~ 80 Protection: IP66 |
Additional info | The SCP-3370 PTZ dome series includes advanced auto tracking and a class leading 37X optical zoom (3.5-129.5mm) with ultra low light level capabilities of 0.7Lux Color and 0.07Lux B/W without Sens-up activated. With SVV DSP engine, the SCP-3370 PTZ domes feature SSNRIII, the 3rd generation of Hanwha Techwin Super Noise Reduction, WDR, and VPS (Virtual Progressive Scan) to deliver clear and vivid images in any condition. |
Download PDF version Download PDF version |
