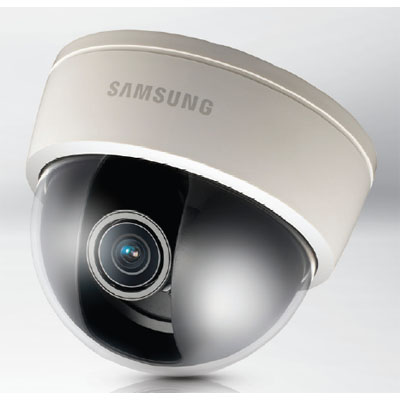

Hanwha Techwin America SCD-3080 high resolution WDR varifocal dome camera

Please note: this is a discontinued product.

Go to Replacement product

Features:

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Hanwha Vision
Manufacturer	Hanwha Vision Europe (formerly Hanwha Techwin Europe)
Previously known as	Samsung
Category	CCTV>Dome cameras
Model code	SCD-3080
Chip Inch Size	1/3 inch
Colour Type	Colour / Monochrome
Resolution TVL	700
Sensitivity lux	0.00002 lux
Dome Type	Variable Focus
Indoor/Outdoor	Indoor
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC / 24 V AC Power Consumption: 3.5 W
Focal length	2.8 ~ 11
Rotation Angles^o	0 ~ 352 pan, 0 ~ 73 tilt
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/60 ~ 1/120,000
S/ N (Signal/ Noise) Ratio dB	52
Synchronisation	Internal / Line-lock
Video Output	1 Vp-p, 75 Ohms
Zoom Ratio	x3.9
Physical Specifications	Dimensions mm: 115.8 (Dia) x 92.7 Weight g: 365
Environmental Specifications	Operating Temp ^oC: -10 ~ +50 Operating Humidity %: 0 ~ 90
