VIPCAM, Geutebruck's new intelligent, wide dynamic range, day/night IP camera
Product Profile
Geutebruck's new intelligent, day/night IP camera produces high quality, high-resolution video images in the most challenging light conditions, yet with the minimum of data. Its automatic IR-cut filter, wide dynamic range Pixim sensor and 32x electronic picture integration ensure it delivers clear, sharp pictures in very bright or dark conditions, near large areas of glass or in entrance halls. Even with full on car headlights there is no vertical smear in the picture.
VIPCAM's on-board digital signal processor can run:
- video motion detection
- activity detection
- privacy zones
- dynamic live streaming
- intelligent compression dynamics
- dual channel streaming
- and new functions not yet thought of!
With your chosen software upgrades configured to suit your operation, the camera only produces the picture data you actually want. And since it doesn't feed the network with data which is later discarded, its bandwidth, central processing and storage requirements are much lower, as are the associated costs.
VIPCAM is a progressive scan camera so does not produce artefacts in 4CIF format. Suitable for GeViScope and re_porter-based CCTV systems, it takes its power from the network and it has input and output contacts for handling alarms and automatic responses.
 |

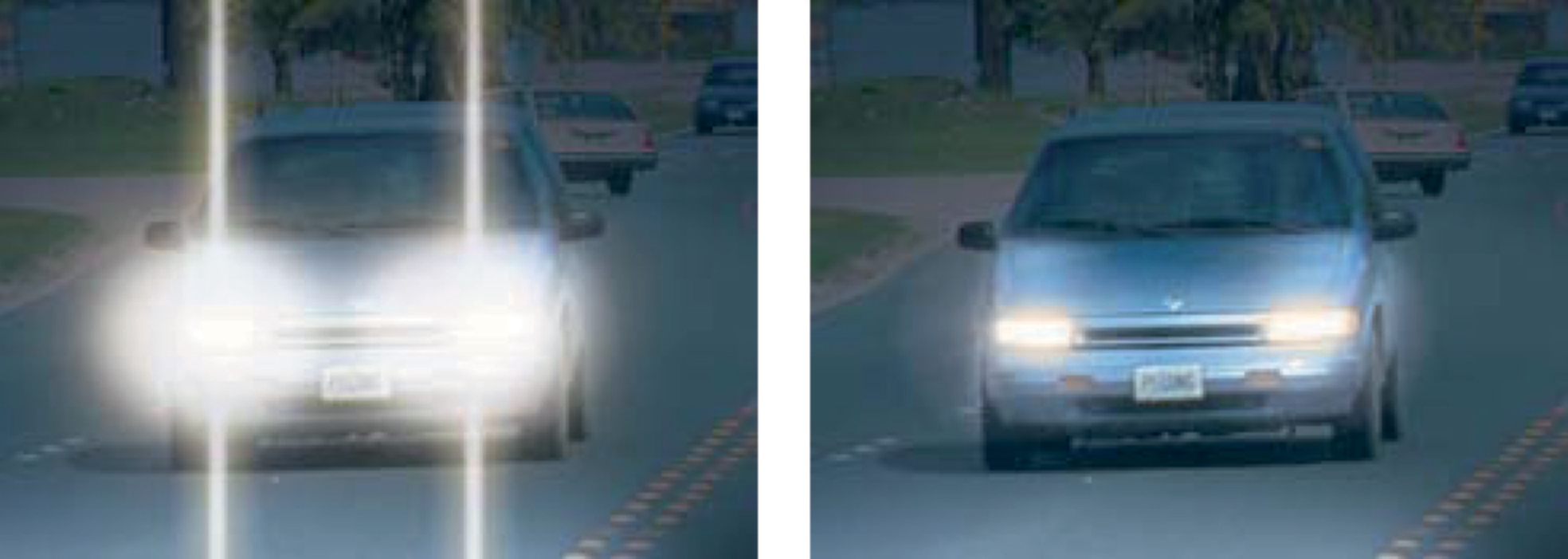

| Compare image of normal CCTV camera (left) with Geutebruck's VIPCAM (right) Click here for larger image |
Technical Specification
| Make | Geutebruck |
|---|---|
| Manufacturer | GEUTEBRUCK GmbH |
| Category | CCTV>IP cameras |
| Model code | VIPCAM |
| Chip Inch Size | 1/3 inch |
| Colour Type | Colour |
| Resolution | 520 resolution |
| Digital (DSP) | Yes |
| Specialist Type | Network |
| Sensitivity Lux | 0.2 |
| Lens Mount | C/CS mount |
| Electrical Specifications | Voltage: 12 V DC / 24 V AC, PoE |
| Motion Activated | Yes |
| Wide Dynamic Range | Yes |
| Picture Elements HxV | 720 x 540 |
| Auto Gain Control | Yes |
| White Balance | Yes |
| S/ N (Signal/ Noise) Ratio dB | 50 |
| Synchronisation | Internal |
| Signal Mode | CCIR, PAL |
| Zoom | Yes |
| Compression Type | M-JPEG, MPEG4CCTV |
| Network Properties | Interface: RJ45, 10/100Base-TX |
| Physical Specifications |
Dimensions mm: 62 x 55 x 134 Weight g: 550 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 Operating Humidity %: 30~90 |
| Additional info | Day/night IP camera. DSP functionality supports video motion detection, activity detection, privacy zones, dynamic live streaming, intelligent compression dynamics, dual channel streaming. Automatic IR cut filter. 32x electronic picture integration. Compatible with GeViScope and re_porter platforms. Video output: Composite video: 1 Vpp, 75 Ohm (BNC). Adjustable Wide Dynamic Range. Digital noise reduction. |
| Download PDF version Download PDF version | |
