ELATEC T4W2-F01C7 TWN4 Palon Compact LF/HF/NFC/BLE OEM RFID Card/Smartphone Reader Module

Technical Specification

Features:

Make: ELATEC
Model code: T4W2-F01C7
Reader Type: Proximity
Standalone/ Networkable: Networkable
Read Range mm: Up to 100 mm

Additional info:

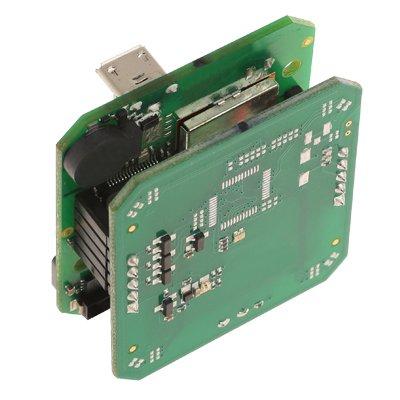

TWN4 Palon Compact M is a versatile OEM PCB for integration into third-party products and devices. It supports enhanced interfaces, especially RS-485. The new compact PCB module inherits all advantages and integrated tool support of the ELATEC TWN4 family. Although it is a general-purpose device, it is optimized for time attendance and access control. TWN4 Palon is a multi-technology reader/writer family supporting almost all 125 kHz and 13.56 MHz contactless technologies, including NFC. On-board antennas for HF and LF allow excellent contactless performance. An integrated Bluetooth Low Energy (BLE) module supports a broad range of mobile ID and authentication solutions as well.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	ELATEC
Manufacturer	ELATEC GmbH
Category	Access Control>Access control readers
Model code	T4W2-F01C7
Reader Type	Proximity
Standalone/ Networkable	Networkable
Read Range mm	Up to 100 mm
Wiegand Interface	Yes
Clock-and-Data Interface	Yes
Electrical Specifications	Voltage: 9.0 V - 30 V via connector X1; 4.3 V - 5.5 V via micro USB Power Consumption: Operating: typ. 160 mA @12 V; Idle: typ. 50 mA @12 V; Peak typ. 250 mA @12 V
Physical Specifications	Dimensions mm: 40.7 x 43.9 x 29.4 Weight g: 25
Environmental Specifications	Operating Temp ^oC: -25 ~ +80 C (-13 ~ +176 F) Operating Humidity %: 5 ~ 95
Additional info	TWN4 Palon Compact M is a versatile OEM PCB for integration into third-party products and devices. It supports enhanced interfaces, especially RS-485. The new compact PCB module inherits all advantages and integrated tool support of the ELATEC TWN4 family. Although it is a general-purpose device, it is optimized for time attendance and access control. TWN4 Palon is a multi-technology reader/writer family supporting almost all 125 kHz and 13.56 MHz contactless technologies, including NFC. On-board antennas for HF and LF allow excellent contactless performance. An integrated Bluetooth Low Energy (BLE) module supports a broad range of mobile ID and authentication solutions as well.
Download PDF version Download PDF version
