DoorKing's ProxPlus™ Card Readers

DoorKing's ProxPlus™ Card Readers provide extremely high security and compatibility — all in one card.

ProxPlus Secure Card Readers are available for those applications that require a higher level of security than standard Proximity Card Readers and Cards can offer, providing access control to seaports, schools, laboratories, utility facilities, airports, and more.

While other Cards use a single encryption code and can be easily duplicated with off-the-shelf devices, ProxPlus Cards are programmed with a unique identifier, making them extremely secure and difficult to duplicate. In addition to dependable security, the DoorKing Card Reader outputs the card code in a 26-bit Wiegand format, making the ProxPlus compatible with almost any Access Control System on the market.

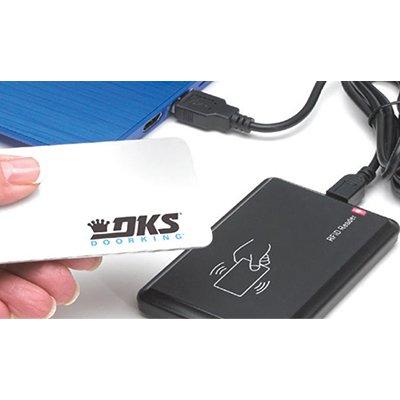

The optional DoorKing Card Scanner provides a simple identification solution by enabling administrators to read the Wiegand access code of secure, unlabeled cards via computer, keeping security intact. ProxPlus Secure Card Readers feature an aesthetically appealing design that will blend with any architectural style and they're available in two sizes to increase accessibility in high-traffic access points and fit well in small or awkward locations where wall space is at a premium.

Higher security IS within your reach — now with DoorKing ProxPlus Secure.

Features:

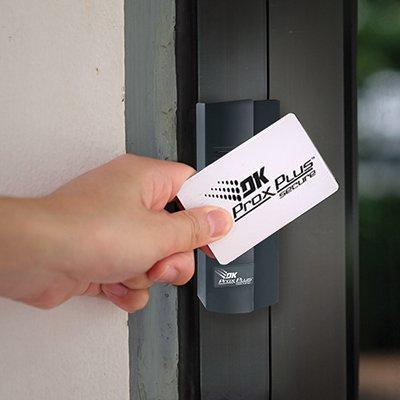

• Read range approximately one inch. Card touch may be required for activation
• Reads only DK ProxPlus Secure cards.
• Output from reader is 26-bit Wiegand format.
• These readers offer an extremely high level of security.
• Cards are encrypted with additional coding making them almost impossible to duplicate.
• These card readers are not designed for stand-alone operation (see 1520-086, 1520-087 readers) and must be connected to an access controller (DKS 1830 Series systems).

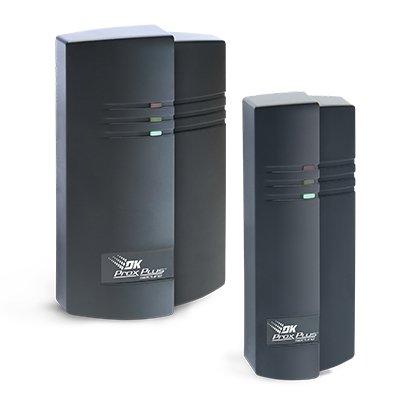

Specifications of DK ProxPlus Secure Card Readers:

• 1815-684: mullion mount.
• 1815-685: single-gang electrical box mount.
• 1815-336: 1815-684 with surface mount enclosure.
• 1815-338: same as 1815-336 but also includes 2358-010 Tracker expansion board.
• 1815-337: same as 1815-336, but output is RS485 format.
• 1520-086: same as 1815-336, but output is dry contact relay.
