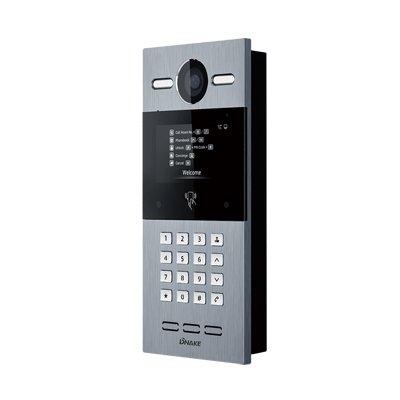

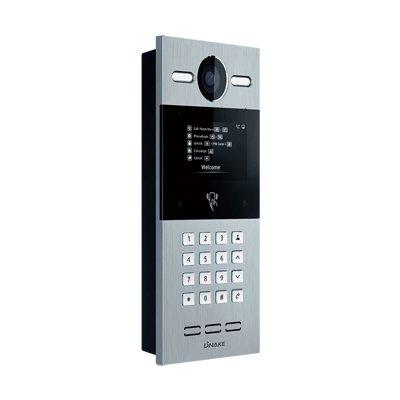

DNAKE S215 4.3" SIP Video Door Phone

Technical Specification

Features:

Make: DNAKE
Model code: S215
Type of Kit/ System: Video, Keypad & Audio
No of Call Buttons on Panel: 16 call buttons
Operating Temperature ^oC: -40 ~ +55 C (-40 ~ +131 F)

Additional info:

Induction loop for hearing impaired Braille dot for visually impaired 3 output relays for door locks Tamper alarm Support IC (13.56MHz) & ID (125kHz) card, PIN code

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	DNAKE
Manufacturer	DNAKE
Category	Access Control>Audio, video or keypad entry
Model code	S215
Type of Kit/ System	Video, Keypad & Audio
No of Call Buttons on Panel	16 call buttons
Environmental Specifications	Operating Temperature ^oC: -40 ~ +55 C (-40 ~ +131 F) Operating Humidity %: 10 ~ 90 Protection: IP65 / IK08
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: Standby Power: 1.5 W / Rated Power: 9 W
Physical Specifications	Weight g: 1530
Additional info	Induction loop for hearing impaired Braille dot for visually impaired 3 output relays for door locks Tamper alarm Support IC (13.56MHz) & ID (125kHz) card, PIN code
