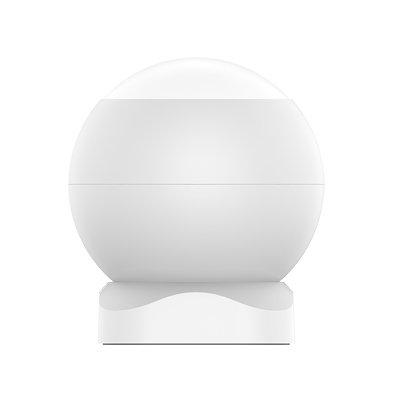

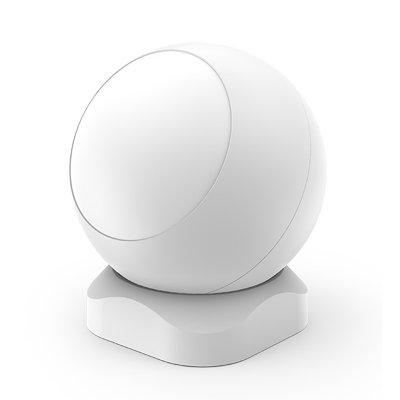

DNAKE MIR-IR100-ZT5 Motion Sensor

Technical Specification

Features:

Make: DNAKE
Model code: MIR-IR100-ZT5
Coverage/ Range m: 8
Angle of Detection ^o: 90°
Power Supply: 3V DC (CR123A battery)

Additional info:

Standard ZigBee 3.0 protocol Detect motion at angles up to 90° up to 8 metres away Low-power consumption design with 3-year battery life Undervoltage alarm supported Hassle-free installation without tools needed Anti-tamper alarm

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	DNAKE
Manufacturer	DNAKE
Category	Intruder Alarms>Intruder detectors
Model code	MIR-IR100-ZT5
Coverage/ Range m	8
Angle of Detection ^o	90°
Electrical Specifications	Power Supply: 3V DC (CR123A battery)
Physical Specifications	Dimensions mm: 48.4 x 53.4
Environmental Specifications	Operating Temp ^oC: -10 ~ +55 C (14 ~ 131 F)
Additional info	Standard ZigBee 3.0 protocol Detect motion at angles up to 90° up to 8 metres away Low-power consumption design with 3-year battery life Undervoltage alarm supported Hassle-free installation without tools needed Anti-tamper alarm
Download PDF version Download PDF version
