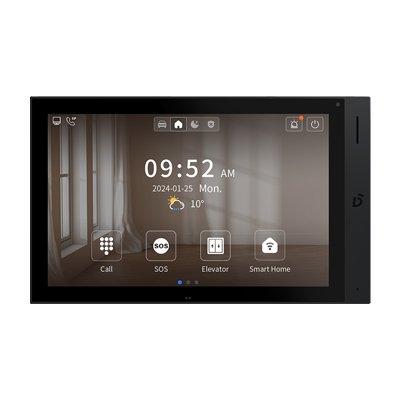

DNAKE H618 10.1” Smart Control Panel

Technical Specification

Features:

Make: DNAKE
Model code: H618
Operating Temperature ^oC: -10 ~ +55 C (14 ~ 131 F)
Operating Humidity %: 10 ~ 90
Voltage: 12 V DC, PoE

Additional info:

Excellent performance with Android 10 OS 10.1” IPS capacitive touch screen, 1280 x 800 Easy integration with ZigBee gateway and a wide range of sensors Support Tuya ecosystem Enable control of various sensors and shifting between different scenes like “Home”, “Out,” “Sleep” or “Off” Configurable homepage menu to meet your needs Customizable different scenes with other smart home products Support monitoring 16 IP cameras Optional Wi-Fi and 2MP camera Easy integration with other SIP devices by SIP 2.0 protocol Compatible with other smart home devices through 3rd-party apps

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	DNAKE
Manufacturer	DNAKE
Category	Access Control>Access control systems & kits
Model code	H618
Environmental Specifications	Operating Temperature ^oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 10W (Rated)
Physical Specifications	Dimensions mm: 264.3 x 160 x 11.8
Additional info	Excellent performance with Android 10 OS 10.1” IPS capacitive touch screen, 1280 x 800 Easy integration with ZigBee gateway and a wide range of sensors Support Tuya ecosystem Enable control of various sensors and shifting between different scenes like “Home”, “Out,” “Sleep” or “Off” Configurable homepage menu to meet your needs Customizable different scenes with other smart home products Support monitoring 16 IP cameras Optional Wi-Fi and 2MP camera Easy integration with other SIP devices by SIP 2.0 protocol Compatible with other smart home devices through 3rd-party apps
