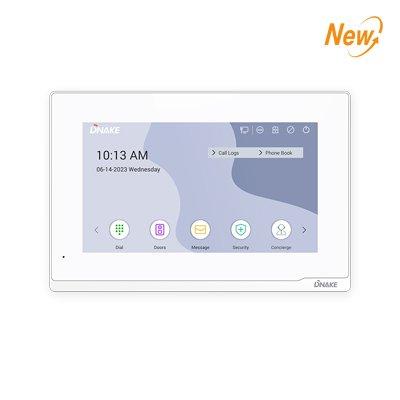

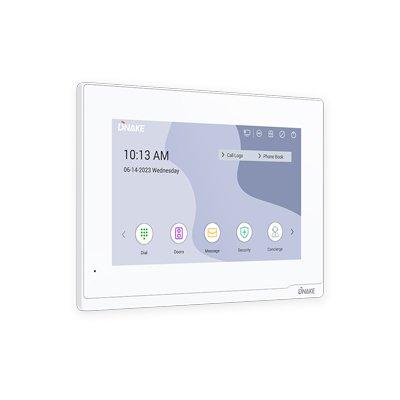

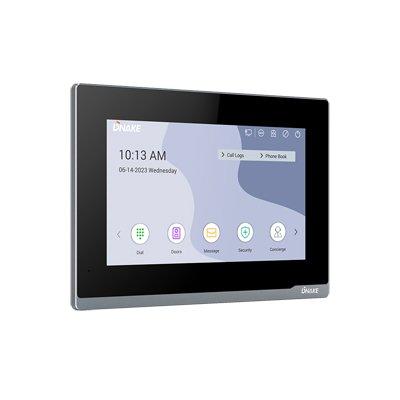

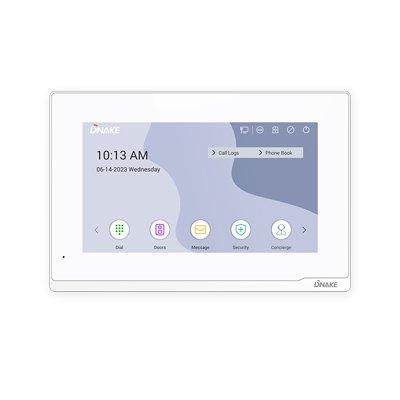

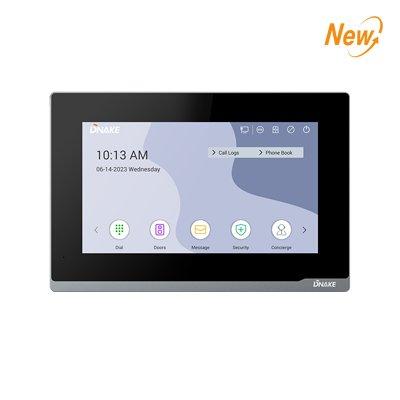

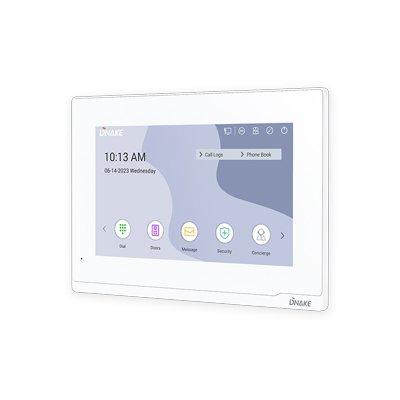

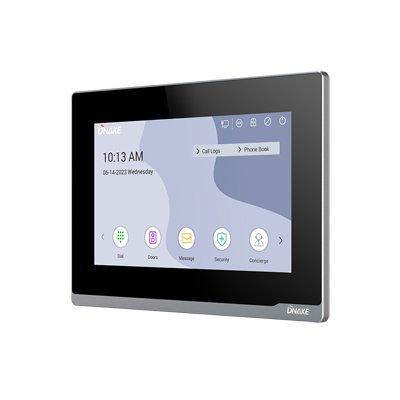

DNAKE E217 7” Linux-based Indoor Monitor

Technical Specification

Features:

Make: DNAKE
Model code: E217
Type of Kit/ System: Video & Audio
Mount Type: Surface Mount
Panel Material: Plastic

Additional info:

7” capacitive touch screen, 1024 x 600 8-ch alarm input, 1 x RS485 Powered by PoE or power adapter (DC12V/2A) 802.11b/g/n Wi-Fi optional Dual network ports optional Support monitoring 8 IP cameras Surface or desktop mounting Support TF card Quick installation and remote management via web interface Easy integration with elevator control system

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	DNAKE
Manufacturer	DNAKE
Category	Access Control>Audio, video or keypad entry
Model code	E217
Type of Kit/ System	Video & Audio
Mount Type	Surface Mount
Panel Material	Plastic
Environmental Specifications	Operating Temperature ^oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 9 W
Physical Specifications	Dimensions mm: 195 x 130 x 14.5 Weight g: 470
Additional info	7” capacitive touch screen, 1024 x 600 8-ch alarm input, 1 x RS485 Powered by PoE or power adapter (DC12V/2A) 802.11b/g/n Wi-Fi optional Dual network ports optional Support monitoring 8 IP cameras Surface or desktop mounting Support TF card Quick installation and remote management via web interface Easy integration with elevator control system
