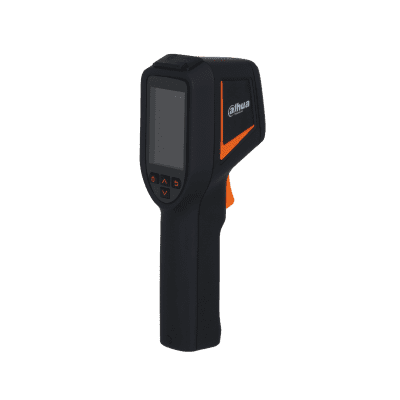

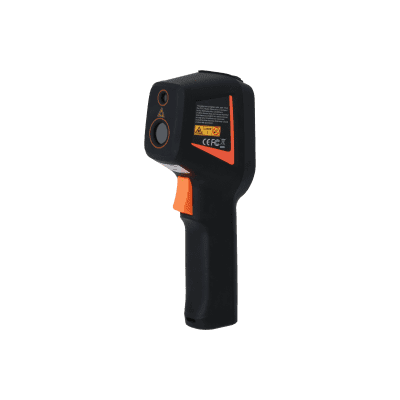

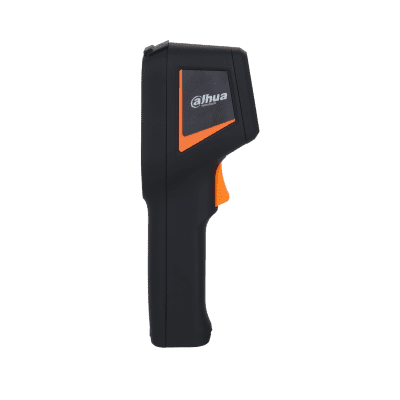

Dahua TPC-HI20 Thermal Handheld Thermographic Camera
Product Profile
The HI20 series allows inspectors to check efficiently and find the source of system failures faster than with a IR temperature gun. It is an auxiliary diagnostic tool with non-contact measurement, high accuracy and visualized anomalies on screen.
The Thermal Handheld Thermographic Camera is built with an industry-leading vanadium oxide uncooled focal plane detector. It is highly sensitive and produces high-quality images. It supports the accurate measuring of temperatures, with a tolerance of less than Max (±2 °C, ±2%) and a range of –20 °C to +550 °C.
In addition to supporting SD card storage, it also features 4 pseudo-color modes: Whitehot, Blackhot, Rainbow, and Ironbow. It triggers buzzer alarms when a temperature exceeds the alarm threshold. It also supports device exception alerts, image enhancement, laser Pointer and cold/Hot spot trace.
Technical Specification
Make | Dahua Technology |
---|---|
Manufacturer | Dahua Technology Ltd |
Category | CCTV>CCTV cameras |
Model code | TPC-HI20 |
Series | Thermography Series |
Resolution TVL | 480 x 640 |
Specialist Types | Thermal |
Electrical Specifications |
Voltage: 5 V DC; built-in battery Power Consumption: < 1 W |
Focal Length mm | 3.5 |
Picture Elements HxV | 256 x 192 |
Physical Specifications |
Dimension mm: 192.4 x 62.5 x 72.2 Weight g: ≤ 350 |
Environmental Specifications |
Operating Temperature oC: -20 ~ +50 C (-4 ~ +122 F) Protection: IP54 Operating Humidity %: ≤ 90 |
Additional info |
|
Download PDF version Download PDF version |
