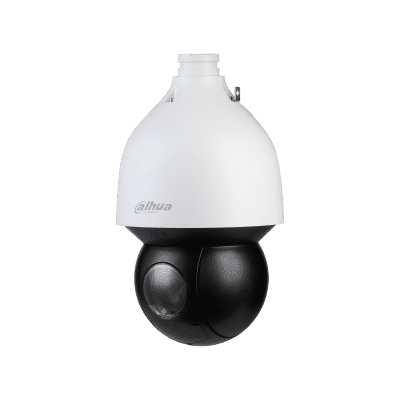

Dahua SD5A432GB-HNR 4MP 32x Starlight IR WizSense Network PTZ Camera
Product Profile
Featuring powerful optical zoom and accurate pan/tilt/zoom performance, this camera provides an all-in-one solution for capturing long distance video surveillance for outdoor applications. Together with infrared illumination and Starlight Technology, the camera is the perfect solution for dark, lowlight applications. The series combines a day/night mechanical IR cut filter for the highest image quality in variable lighting conditions during the day.
Technical Specification
| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | CCTV>IP cameras |
| Model code | SD5A432GB-HNR |
| Series | WizSense Series |
| Chip Inch Size | 1/2.8 inch |
| Colour Type | Colour / Monochrome |
| Resolution | 4MP resolution |
| Specialist Type | PTZ |
| Sensitivity Lux | Color: 0.005 |
| Electrical Specifications |
Voltage: 24 V DC / PoE Power Consumption: Basic: 13 W, Max.: 22 W (illuminator + PTZ working) |
| Motion Activated | Yes |
| Focal Length mm | 4.8 ~ 154 |
| Wide Dynamic Range | Yes |
| Network Properties |
Image Frame Rate: 25/30 fps Interface: RJ-45 (10/100 Base-T) Network Protocols: HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1/1 s–1/30,000 s |
| Zoom | Yes |
| Compression Type | Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (Sub Stream 1) |
| Physical Specifications |
Weight g: 4700 Dimensions mm: 332 x Φ190 |
| Environmental Specifications |
Protection: IP67, IK10 Operating Temperature oC: -40 ~ +70 C (-40 ~ +158 F) Operating Humidity %: ≤95 |
| System Requirements | Web Browser: IE 7 and later versions, Chrome 42 and earlier versions, Firefox 52 and earlier versions, Safari |
| Additional info |
|
| Download PDF version Download PDF version | |
