Dahua Technology DH-T4A-PV IP camera Specifications

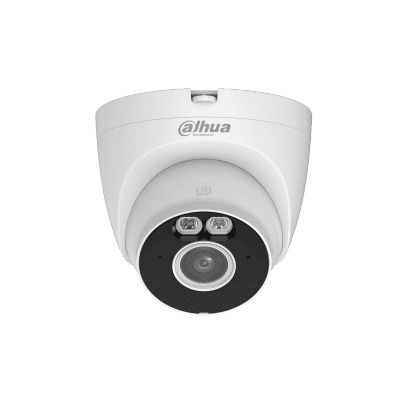

Dahua DH-T4A-PV 4MP Smart Dual Light Active Deterrence Fixed-focal Wi-Fi Eyeball Network Camera

Product Profile

Series Overview

With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises.

Functions

Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Day/Night
Dahua Day/Night function provides color image when illumination is adequate; when illuminance is inadequate, it switches night mode and provides white and black image. It can guarantee that the network camera can work normally when illuminance changes.

Two-way Talk
With its built-in high-sensitivity microphone and high-power speaker, the camera realizes two-way talk through the mobile app.

Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.

Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.

Human Detection
Dahua intelligent algorithms extract moving human targets from videos and filters out alarms that are triggered by non-human targets to increase the accuracy and effectiveness of alarms.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology Ltd
Category	CCTV>IP cameras
Model code	DH-T4A-PV
Series	Entry Series
Chip Inch Size	1/3 inch
Colour Type	Colour / Monochrome
Resolution	4MP resolution
Sensitivity Lux	0.005 lux@F1.6 (Colour, 30 IRE) , 0.0005 lux@F1.6(B/W, 30 IRE) , 0 lux (Illuminator on)
Electrical Specifications	Voltage: 12 V DC Power Consumption: Max. 7.1 W
Motion Activated	Yes
Focal Length mm	2.8 mm;3.6 mm
Wide Dynamic Range	Yes
Network Properties	Image Frame Rate: 25/30 fps Interface: RJ-45 (10/100 Base-T) Network Protocols: IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP; P2P
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/3 s–1/100,000 s
S/ N (Signal/ Noise) Ratio dB	>56
Compression Type	H.264B; H.264; H.264H; H.265
Physical Specifications	Dimensions mm: Φ109.9 x 102.2 Weight g: 353
Environmental Specifications	Protection: IP67 Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: ≤95
System Requirements	Web Browser: IE; Chrome; Firefox
Additional info	4-MP 1/3" CMOS image sensor, low luminance, and high definition image. Outputs max. 4 MP (2560 ×1440)@25/30 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in warm light and IR LED, and the max. illumination distance is 30 m. SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Abnormality detection: Motion detection, video tampering, audio disconnection, IP conflict, illegal access and SMD(human). Supports max.256 G Micro SD card; built in Mic. 12 VDC power supply. IP67 protection. Supports human detection.
Download PDF version Download PDF version

Make

Dahua Technology

Manufacturer

Dahua Technology Ltd

Category

CCTV>IP cameras

Model code

DH-T4A-PV

Series

Entry Series

Chip Inch Size

1/3 inch

Colour Type

Colour / Monochrome

Resolution

4MP resolution

Sensitivity Lux

0.005 lux@F1.6 (Colour, 30 IRE) , 0.0005 lux@F1.6(B/W, 30 IRE) , 0 lux (Illuminator on)

Electrical Specifications

Voltage: 12 V DC
Power Consumption: Max. 7.1 W

Motion Activated

Yes

Focal Length mm

2.8 mm;3.6 mm

Wide Dynamic Range

Yes

Network Properties

Image Frame Rate: 25/30 fps
Interface: RJ-45 (10/100 Base-T)
Network Protocols: IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP; P2P

Back Light Compensation

Yes

Auto Gain Control

Yes

White Balance

Yes

Electronic Shutter Range

1/3 s–1/100,000 s

S/ N (Signal/ Noise) Ratio dB

>56

Compression Type

H.264B; H.264; H.264H; H.265

Physical Specifications

Dimensions mm: Φ109.9 x 102.2
Weight g: 353

Environmental Specifications

Protection: IP67
Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F)
Operating Humidity %: ≤95

System Requirements

Web Browser: IE; Chrome; Firefox

Additional info

4-MP 1/3" CMOS image sensor, low luminance, and high definition image.
Outputs max. 4 MP (2560 ×1440)@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED, and the max. illumination distance is 30 m.
SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Abnormality detection: Motion detection, video tampering, audio disconnection, IP conflict, illegal access and SMD(human).
Supports max.256 G Micro SD card; built in Mic.
12 VDC power supply.
IP67 protection.
Supports human detection.
