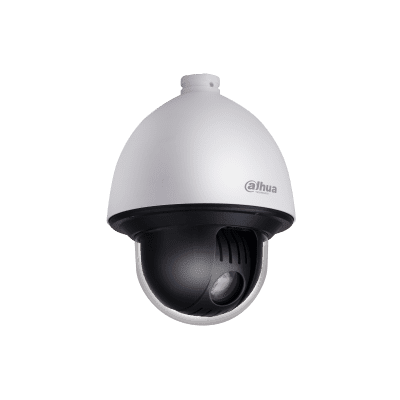

Dahua DH-SD60432DB-HNY 4MP 32x Starlight WizSense Network PTZ Camera
Product Profile
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
System Overview
With its powerful optical zoom, and accurate pan and tilt capabilities, the PTZ camera provides an all-in-one solution for large-scale monitoring. It harnesses the latest starlight technology, allowing it to produce highly detailed images even in low light conditions. The camera offers smooth control and high-grade protection that enable it to meet the requirements of video surveillance in small and medium-sized scenes.
Functions
Wide Dynamic Range
The camera produces vivid images, even in high-contrast lighting conditions, by using industry-leading wide dynamic range (WDR) technology.
For scenes that quickly alternate between bright and low lighting, WDR adjusts to fully capture both the bright and dark areas of a scene, producing superior quality videos.
Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, and more, and uses secondary recognition during target detection to improve alarm accuracy
Protection (IP67, TVS 6000 V)
IP67, TVS 6000 V lightning proof, surge protection, and voltage transient protection.
SMD 3.0
Empowered by deep-learning algorithms, Dahua SMD filters out motion detection alarms triggered by targets that are not a concern. It quickly recognizes humans and vehicles, triggering alarms when an intrusion occurs.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, a flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality videos without straining the network. Smart H.265+ technology outranks standard H.265 video compression, reducing bit rate and storage requirements by up to 70%.
Starlight Technology
For challenging low-light conditions, Dahua's Starlight Ultra-low Light Technology offers the best in light sensitivity, capturing color in vivid detail, even in lighting as low as 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, producing clear images in dark environments.
Technical Specification
| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | CCTV>IP cameras |
| Model code | DH-SD60432DB-HNY |
| Series | WizSense Series |
| Chip Inch Size | 1/2.8 inch |
| Colour Type | Colour / Monochrome |
| Resolution | 4MP resolution |
| Sensitivity Lux | 0.005 lux@F1.6 (Colour, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE) |
| Electrical Specifications |
Voltage: 24 V DC, PoE+ Power Consumption: Max: 18 W (PTZ) |
| Focal Length mm | 4.8 ~ 154 |
| Mount Type | Wall, Ceiling, Pole, Corner |
| Wide Dynamic Range | Yes |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1 s–1/30,000 s |
| S/ N (Signal/ Noise) Ratio dB | ≥55 dB |
| Zoom | Yes |
| Compression Type | Smart H.265+; H.265; Smart H.264+;H.264;H.264B;H.2 64H;MJPEG(Sub Stream) |
| Network Properties |
Interface: RJ-45 (10/100 Base-T) Network Protocols: HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP;DNS; DDNS; IPv6; 802.1x; Qos; FTP; UPnP; ICMP; SNMP; SNMPv1/v2c/v3(MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; TCP |
| Physical Specifications |
Dimensions mm: 292.0 x Φ222.0 Weight g: 3400 |
| Environmental Specifications |
Protection: IP67, IK10 Operating Temperature oC: -40 ~ +70 C (-40 ~ +158 F) Operating Humidity %: ≤ 95 |
| Additional info |
|
| Download PDF version Download PDF version | |
