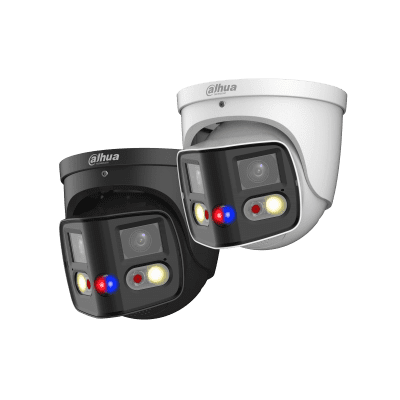

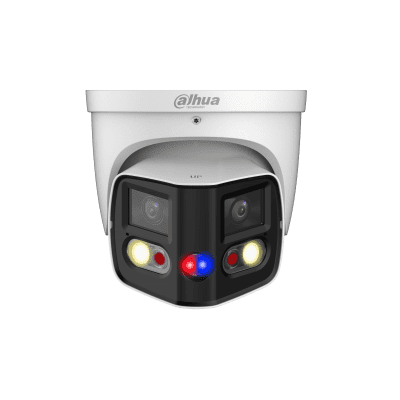

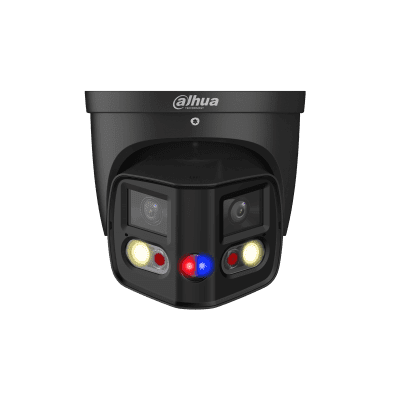

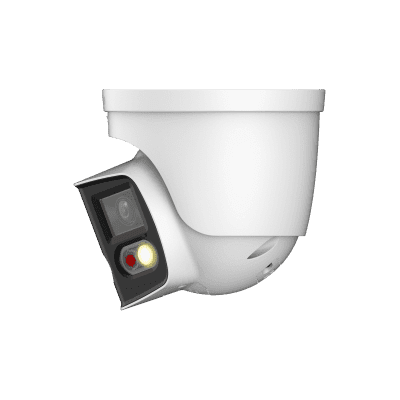

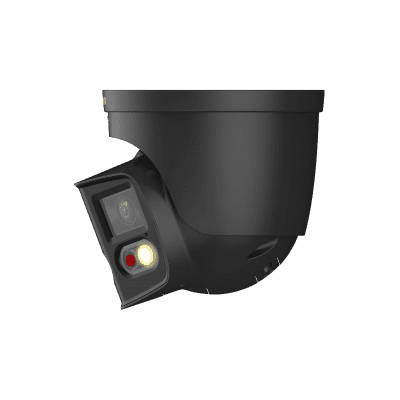

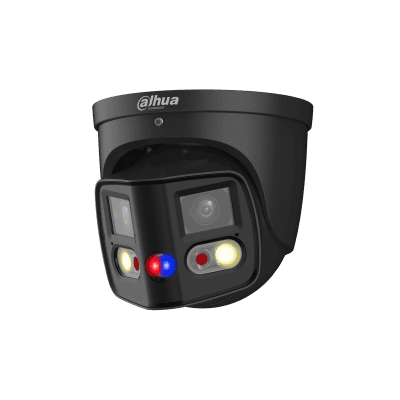

Dahua Technology DH-IPC-PDW3849-A180-AS-PV IP camera Specifications

Dahua Eyeball Network Camera with Advanced Detection

Product Profile

Product Overview

The Dahua WizSense 3 Series Network Camera enhances bandwidth and storage efficiency with AI Coding technology. It utilizes advanced deep learning algorithms to provide features such as perimeter protection, Smart Motion Detection (SMD), and Quick Pick, ensuring ease of use. Starlight technology and a large aperture lens deliver clear, vivid images even in low-light conditions.

Key Features

Smart Motion Detection (SMD) 4.0

Uses intelligent algorithms to accurately classify motion-triggering targets.
Filters out non-targets like animals to reduce false alarms.
Quick Pick technology allows easy search and selection of relevant human and vehicle targets from SMD event videos.

Enhanced PTZ Tracking

Advanced detection and tracking algorithms enable simultaneous zoom and tracking of multiple humans and vehicles.
Provides detailed views and panoramic perspectives.

Active Deterrence with Siren and Light

Includes light and voice alarms for effective deterrence and intervention.
Supports multiple voice options and custom voice imports.

Smart Dual Light Technology

Uses a smart algorithm to detect targets, activating warm light for full-color video and reducing light pollution when the target is not present.

One-Tap Disarming

Conveniently manage event linkages via a mobile app for various scenarios.

Robust Cyber Security

Features comprehensive security measures, including authentication, access control, encrypted transmission, and encrypted storage.
Enhances defense against cyber threats and unauthorized access.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology Ltd
Category	CCTV>IP cameras
Model code	DH-IPC-PDW3849-A180-AS-PV
Series	WizSense Series
Chip Inch Size	1/2.7 inch
Colour Type	Colour / Monochrome
Resolution	2x4MP resolution
Sensitivity Lux	0.005 lux@F1.4 (Colour, 30 IRE) ; 0.0005 lux@F1.4 (B/W, 30 IRE) ; 0 lux (Illuminator on)
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: Max. 8.7 W (12 VDC); 10.85 W (PoE)
Focal Length mm	2.8 mm
Mount Type	Wall, Ceiling, Pole
Wide Dynamic Range	Yes
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	Auto/Manual 1/3 s–1/100,000 s
S/ N (Signal/ Noise) Ratio dB	>56 dB
Zoom	Yes
Compression Type	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Network Properties	Interface: RJ-45 (10/100 Base-T) Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Physical Specifications	Weight g: 990 Dimensions mm: Φ122 x 135.2
Environmental Specifications	Protection: IP67 Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: ≤95
Additional info	Outputs 180° wide angle splicing image. Outputs max. 8 MP (4096 × 1860)@20 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m. ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in dual Mic; built in speaker, support two-way talk. 12 VDC/PoE power supply, easy for installation. IP67 protection. Sound and light alarm (red and blue lights) EPTZ: Enlarge and track the targets of intelligent alarms. SMD 4.0. One-tap arming/disarming through alarm input
Download PDF version Download PDF version

Make

Dahua Technology

Manufacturer

Dahua Technology Ltd

Category

CCTV>IP cameras

Model code

DH-IPC-PDW3849-A180-AS-PV

Series

WizSense Series

Chip Inch Size

1/2.7 inch

Colour Type

Colour / Monochrome

Resolution

2x4MP resolution

Sensitivity Lux

0.005 lux@F1.4 (Colour, 30 IRE) ; 0.0005 lux@F1.4 (B/W, 30 IRE) ; 0 lux (Illuminator on)

Electrical Specifications

Voltage: 12 V DC, PoE
Power Consumption: Max. 8.7 W (12 VDC); 10.85 W (PoE)

Focal Length mm

2.8 mm

Mount Type

Wall, Ceiling, Pole

Wide Dynamic Range

Yes

Back Light Compensation

Yes

Auto Gain Control

Yes

White Balance

Yes

Electronic Shutter Range

Auto/Manual 1/3 s–1/100,000 s

S/ N (Signal/ Noise) Ratio dB

>56 dB

Zoom

Yes

Compression Type

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Network Properties

Interface: RJ-45 (10/100 Base-T)
Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Physical Specifications

Weight g: 990
Dimensions mm: Φ122 x 135.2

Environmental Specifications

Protection: IP67
Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F)
Operating Humidity %: ≤95

Additional info

Outputs 180° wide angle splicing image.
Outputs max. 8 MP (4096 × 1860)@20 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in dual Mic; built in speaker, support two-way talk.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
Sound and light alarm (red and blue lights)
EPTZ: Enlarge and track the targets of intelligent alarms.
SMD 4.0.
One-tap arming/disarming through alarm input
