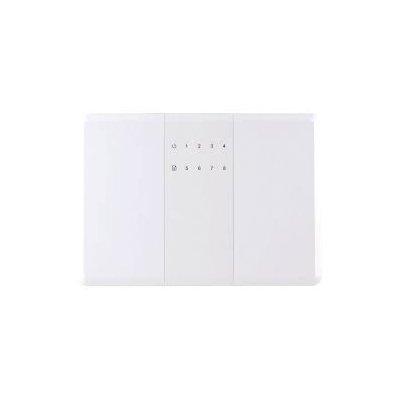

Climax Technology WEZC-8 Series 8 wired zone expansion module

Technical Specification

Features:

Make: Climax Technology
Model code: WEZC-8 Series

Additional info:

Expansion of additional wired zones of 8 Dual wall-mount & front cover tamper protection Plastic housing Rechargeable backup battery (for WEZC-8B only) EN50131 Grade 3, Class II certified Power Source: 1600 mAh Ni-MH battery pack; Battery Life: 35 hours* (WEZC-8B model only) Input Voltage from Hybrid Panel: 13.5V DC Current Consumption: 6 mA (standby); 95mA (maximal)

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Climax Technology
Manufacturer	Climax Technology Co., Ltd.
Category	Intruder Alarms>Intruder alarm accessories
Model code	WEZC-8 Series
Additional info	Expansion of additional wired zones of 8 Dual wall-mount & front cover tamper protection Plastic housing Rechargeable backup battery (for WEZC-8B only) EN50131 Grade 3, Class II certified Power Source: 1600 mAh Ni-MH battery pack; Battery Life: 35 hours* (WEZC-8B model only) Input Voltage from Hybrid Panel: 13.5V DC Current Consumption: 6 mA (standby); 95mA (maximal)
Download PDF version Download PDF version
