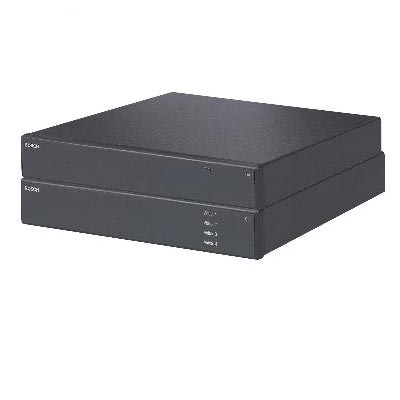

Bosch LTC 5231/90 Video signal device

Technical Specification

Features:

Make: Bosch
Model code: LTC 5231/90
Video Distribution Amplifier: Yes
No of Video Inputs: 1 channels
No of Video Outputs: 4 outputs

Additional info:

The LTC 5231 series are single-channel video distribution amplifiers. They provide 4 video outputs, identical to a single video input, for use with other video equipment. A front panel LED is provided, to indicate when the amplifier is receiving video. In the event of loss of video, the LTC 5231 series amplifiers provide a relay contact closure output to signal this occurrence. The LTC 5231 units are supplied as desktop units. Rack mount kits are available for rack mounting.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Bosch
Manufacturer	Bosch Security Systems
Category	CCTV>Video signal devices & accessories
Model code	LTC 5231/90
Video Distribution Amplifier	Yes
No of Video Inputs	1 channels
No of Video Outputs	4 outputs
Bandwidth MHz	33 MHz bandwidth
Signal-to-Noise Ratio dB	-72 dB ratio
Differential Gain %	0.7 % differential gain
Physical Specifications	Dimensions mm: 41 x 234 x 262 Weight g: 1500
Environmental Specifications	Operating Temperature ^oC: 0 ~ 50 Operating Humidity %: 20 ~ 90
Electrical Specifications	Voltage: 230 V AC Power Consumption: 3.5 W
Additional info	The LTC 5231 series are single-channel video distribution amplifiers. They provide 4 video outputs, identical to a single video input, for use with other video equipment. A front panel LED is provided, to indicate when the amplifier is receiving video. In the event of loss of video, the LTC 5231 series amplifiers provide a relay contact closure output to signal this occurrence. The LTC 5231 units are supplied as desktop units. Rack mount kits are available for rack mounting.
